Pipe Hydrostatic Testing Machine: Proving the 50-Year Design Life — BRT GJ16C
A water pipe buried underground — what gives it the right to claim 50 years?
Once the water pipes running beneath a neighborhood or a city street get laid, there’s basically no digging them back up for a checkup. So when a pipe manufacturer’s spec sheet claims a “design service life of 50 years,” how solid is that promise really? Obviously nobody can wait 50 actual years to find out. The standard industry approach is accelerated testing through hydrostatic pressure: hold a pipe under continuous pressure and record exactly how long it takes to fail, then extrapolate that data to project the pipe’s long-term service life under normal operating conditions.
The whole logic hinges on whether the test equipment can apply pressure steadily, precisely and across multiple channels simultaneously over long stretches of time — a single test run often lasts hundreds, even thousands, of hours, and if pressure fluctuates even once along the way, the entire data set may need to start over.
As a professional manufacturer of testing instruments, Baoruitong Automation Equipment Co., Ltd. (BRT) presents this guide to pipe pressure testing and introduces the GJ16C Pipe Hydrostatic Testing Machine — designed around exactly this demand for long-term stability.
Why Pipe Hydrostatic Testing Matters
For pipe manufacturers and third-party testing laboratories, the real value of hydrostatic testing is turning “how many years will this pipe actually last” — a question that used to rely on experience and estimation — into solid, repeatable long-term performance data that can go straight into a certification filing. Tests such as ISO 1167 / GB/T 6111 internal pressure testing and long-term regression analysis are the foundation of pipe lifetime prediction. After all, when a buried pipe fails, the cost of digging it up and reworking it dwarfs anything spent on testing.
GJ16C: Built for Long-Term Stability
Cluster control architecture with independent channels
- The system runs on embedded PC centralized cluster control, with each test channel operating as an independent module equipped with its own microprocessor to receive instructions from the host while continuously feeding control data back through a serial bus
- The main unit can expand to 30 standard control modules, with a single unit independently controlling up to 10 stations without interference
- Module count can scale up or down depending on lab size — flexible for both small QC labs and large testing centers
Power-outage protection that saves months of work
- Data acquisition and storage run fully automatically, with power-outage protection built in — if the test loses power mid-run, it resumes automatically once power is restored, so hundreds of hours of testing don’t get wiped out by a single outage
Wide pressure range, precise control
- Both main and branch circuits cover 0.4 to 16 MPa, with control accuracy held between -1% and +2%
- Each station’s pressure range can be set independently, covering instantaneous burst testing, long-term constant-pressure failure testing and even thermal stability testing of thermoplastic pipes under hydrostatic conditions — essentially in one machine
- Core components are sourced carefully — plunger pumps, solenoid valves and pressure transmitters come from established brands across the US, Germany, Japan and the UK, giving long-term precision and stability real backing

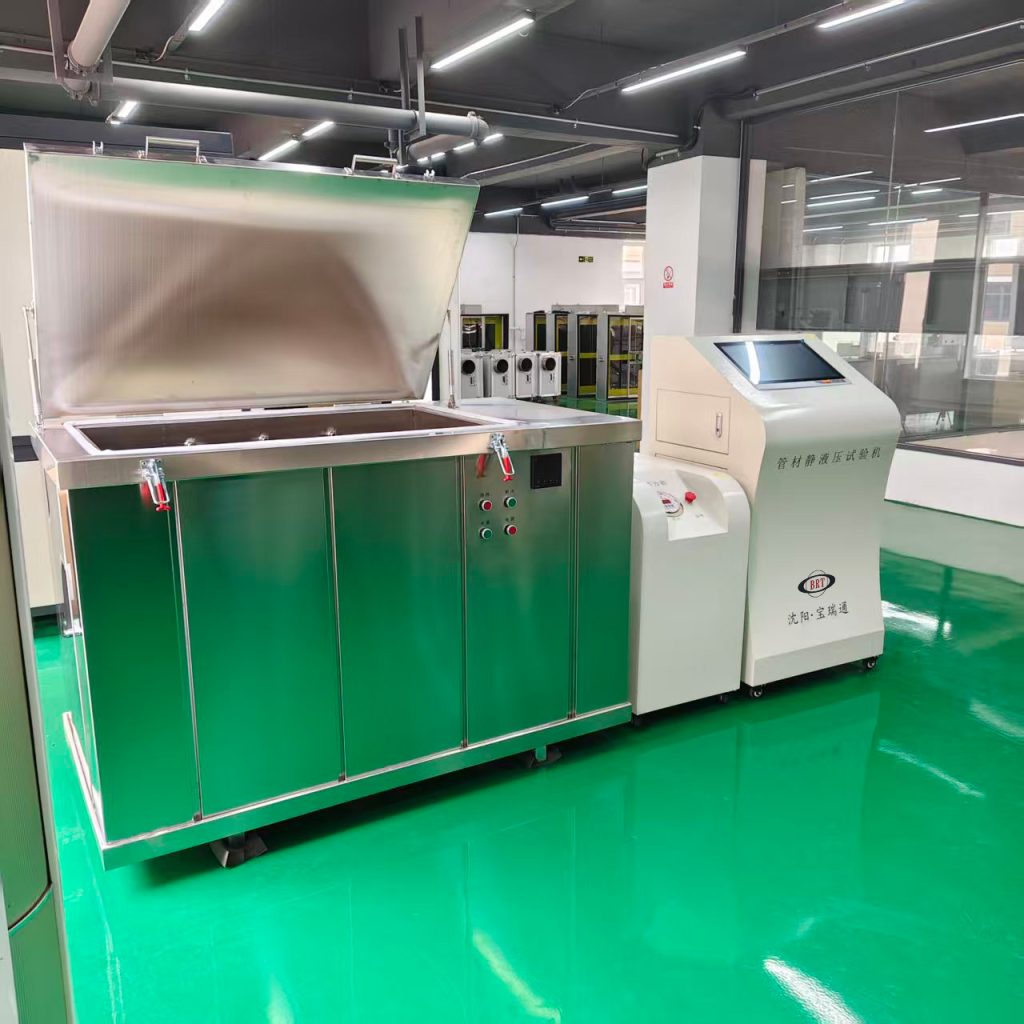

Energy-efficient constant-temperature water tank
- Inner tank in 304 stainless steel with insulation exceeding 85 mm thick — when water temperature hits 95 °C, the outer shell stays close to room temperature, cutting energy consumption by more than 70% compared to conventional designs
- German-imported circulating pump rated at 135 L/min, paired with an intelligent PID temperature control system holding temperature stability within ±1 °C throughout testing
Patented fixtures for fast, reliable specimen mounting
- The companion Type A 304 stainless steel fixtures are a patented product — a non-pull-rod radial sealing design covering the full φ10 to φ1600 mm range
- Large-diameter fixture assembly in under 30 minutes, smaller sizes in under 10 minutes
- Specimens need no pre-shaping before mounting, speeding up on-site operation considerably
Who Needs the GJ16C?
- Pipe manufacturers verifying long-term pressure performance and burst strength of PVC, PE and other thermoplastic pipes before certification
- Third-party testing laboratories performing hydrostatic pressure tests and long-term failure testing for pipe certification filings
- Research institutes studying pipe lifetime prediction and thermal stability of thermoplastic materials under hydrostatic conditions
FAQ
What is a pipe hydrostatic testing machine? A pipe hydrostatic testing machine holds pipes under continuous internal water pressure to measure how long they withstand that pressure before failure. The data is used to predict the long-term service life of pipes — for example, verifying a claimed 50-year design life — through accelerated pressure testing.
Why is pressure stability so important in hydrostatic testing? A single hydrostatic test run can last hundreds or thousands of hours. If pressure fluctuates even once, the failure time data becomes unreliable and the entire test may need to restart. Stable pressure control is therefore the core requirement of long-term pipe testing.
Which tests can the GJ16C perform? The GJ16C covers instantaneous burst testing, long-term constant-pressure failure testing and thermal stability testing of thermoplastic pipes under hydrostatic conditions, with independent pressure settings per station across a 0.4–16 MPa range.
Which standards apply to pipe hydrostatic testing? Common standards include ISO 1167 and GB/T 6111 for internal pressure testing of thermoplastic pipes, with long-term lifetime extrapolation typically performed per ISO 9080.
What are the advantages of the GJ16C fixtures? The patented Type A 304 stainless steel fixtures use a non-pull-rod radial sealing design covering φ10–1600 mm, with large-diameter assembly under 30 minutes and small sizes under 10 minutes — and specimens need no pre-shaping before mounting.
Get a Quote
Need a reliable pipe hydrostatic testing machine for long-term pressure testing or pipe certification? Contact Shenyang Baoruitong Automation Equipment Co., Ltd. today for the GJ16C datasheet, test procedure guidance and a customized quotation. Every BRT instrument is backed by a 1-year warranty, installation guidance, operation training and long-term after-sales support.
