Industry News: Complete Cable Flame Resistance Test Solutions Cover All UL & IEC Global Standards Released
Manufacturers and third-party testing labs worldwide now have access to a unified, all-in-one cable flammability testing system fully compliant with mainstream UL 1581, UL 2556, IEC 60332 and EN 60332 series standards, covering vertical single cable, horizontal wire, vertical tray bundled cable flame resistance testing scenarios. The integrated testing suite simplifies cross-regional cable certification and delivers repeatable, audit-ready test data for wire & cable R&D, production quality control and regulatory compliance.
Flammability and combustion product testing is a mandatory quality checkpoint for all electrical wires and cables. In fire accidents, cable flame spread, sustained burning and molten dripping ignition pose severe risks to personnel safety and equipment integrity. Global regulators enforce strict vertical and horizontal flame test protocols for single wires and bundled cables, creating a complex testing burden for labs serving North American, European and international markets. The newly launched universal flame test platform unifies all mainstream test methods into one flexible setup, eliminating the need for multiple separate testing machines.
Full Coverage of UL Standard Flame Test Protocols
The system supports all core UL 1581 and UL 2556 flammability test procedures for appliance wires and power cables:
- VW-1 Vertical Flame Test (UL 1581 Para.1080 / UL 2556 FV-2VW-1)Specimens fixed vertically, burner tilted 20° against vertical axis. 5 cycles of 15s flame exposure + 15s pause. Acceptance criteria: paper flag burn damage ≤25%, self-extinguish within 60s after flame removal, no molten drips ignite underlying cotton wool.
- FT1 Vertical Flame Test (UL 1581 Para.1060 / UL 2556 FT1)Identical 20° burner angle and 5×15s/15s cycle rules. Unlike VW-1, dripping cotton ignition is not a failure factor; only flag damage and after-burn duration are assessed.
- UL 1581 Para.1061 Cable Vertical Flame Test3 cycles of 60s flame + 30s pause, vertical mounting with 20° burner offset. Must meet flag burn, self-extinguishing and drip ignition pass requirements.
- Horizontal Wire Flame Test (UL 1581 Para.1090)30s continuous flame exposure. Flame propagation speed capped at 25 mm/min; drips cannot ignite adjacent cotton wool.
- FT2 Horizontal Cable Test (UL 1581 Para.1100 / UL 2556 FT2FH)Horizontal cable mounting, 30s flame application. Max allowable carbonized length ≤100 mm, no cotton ignition from drips.
- Vertical Tray Bundled Cable Test (UL 1581 Para.1160 / UL 2556 Method 1 / UL 1685)Multi-layer cables arranged vertically on ladder trays, horizontal burner flame for 20-minute sustained testing. Total flame damage height must stay below 2440 mm measured from tray base.
IEC & EN European Standard Single Cable Vertical Flame Tests
For EU market certification, the machine fully complies with IEC 60332-1-2 and IEC 60332-2-2 (EN equivalent standards):
- IEC 60332-1-2: Burner tilted 45° to vertical cable. Flame exposure duration varies by cable outer diameter: 60s (≤25mm), 120s (25–50mm), 240s (50–75mm), 480s (>75mm). Pass rule: fire damage terminates minimum 50mm below upper clamp, full self-extinguishing.
- IEC 60332-2-2: 45° burner angle, fixed 20s flame application, identical damage distance and self-extinguishing compliance rules.
Key Advantages of the All-in-One Flame Test System
1. Modular, Multi-Scenario Configuration
Switch effortlessly between vertical single cable fixtures, horizontal wire holders and vertical tray racks for bundled cable testing. Single machine completes VW-1, FT1, FT2, IEC single cable and UL tray bundled flame tests, cutting lab equipment investment and floor space occupancy by over 60%.
2. Programmable Automatic Test Cycles
Built-in digital timing control with 0.1s precision replicates all standard flame/pause cycles without manual intervention. Operators pre-set test recipes for VW-1, FT1, IEC 60332 series and tray tests, one-click start for consistent, human-error-free testing.
3. Built-In Compliance Verification Tools
Standardized paper indicator flag mounts, cotton wool drip trays, carbonization length rulers and damage height measuring scales come pre-installed. Real-time video recording captures full test footage for audit traceability and official test report issuance.
4. Flexible Burner Angle Adjustment
Adjustable burner bracket supports 20° (UL vertical/horizontal tests) and 45° (IEC single cable tests), matching all standard flame application angle requirements without extra accessories.
5. Safe, Closed-Loop Test Chamber

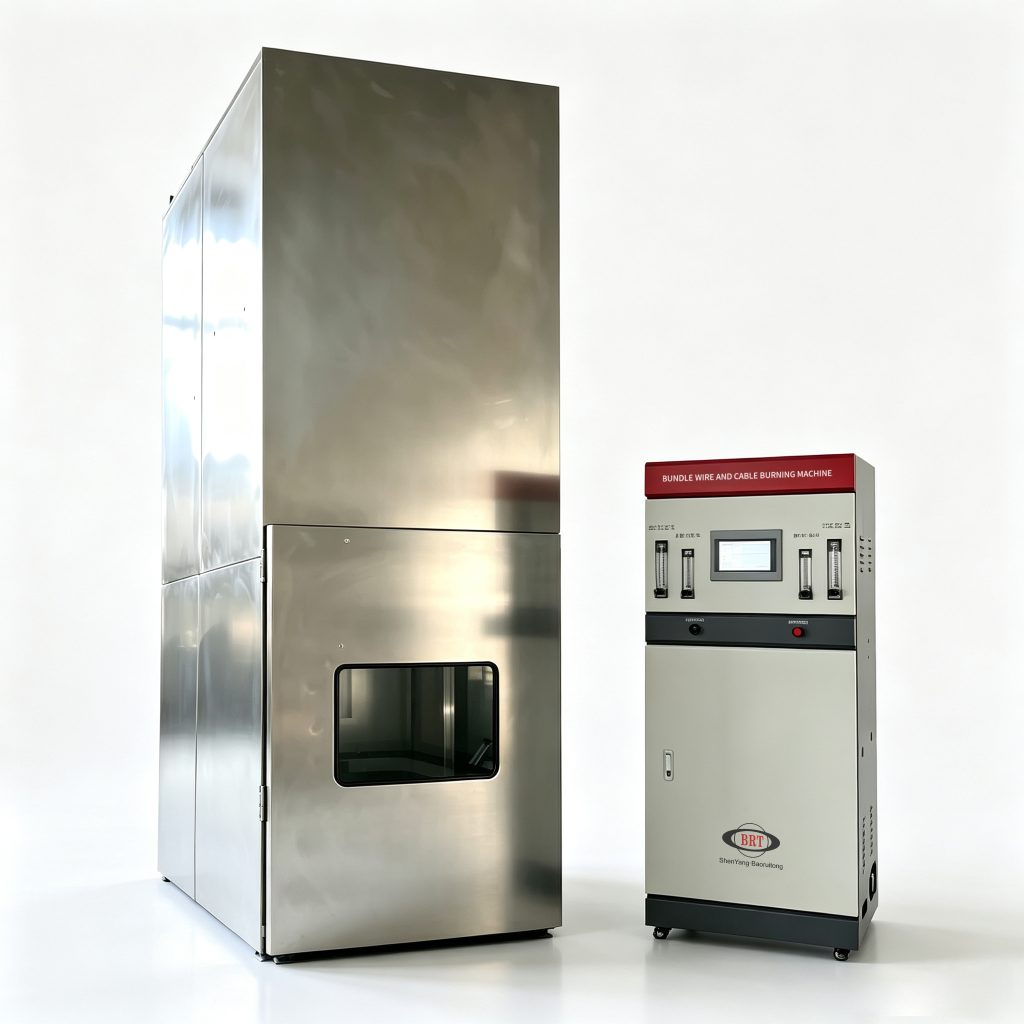

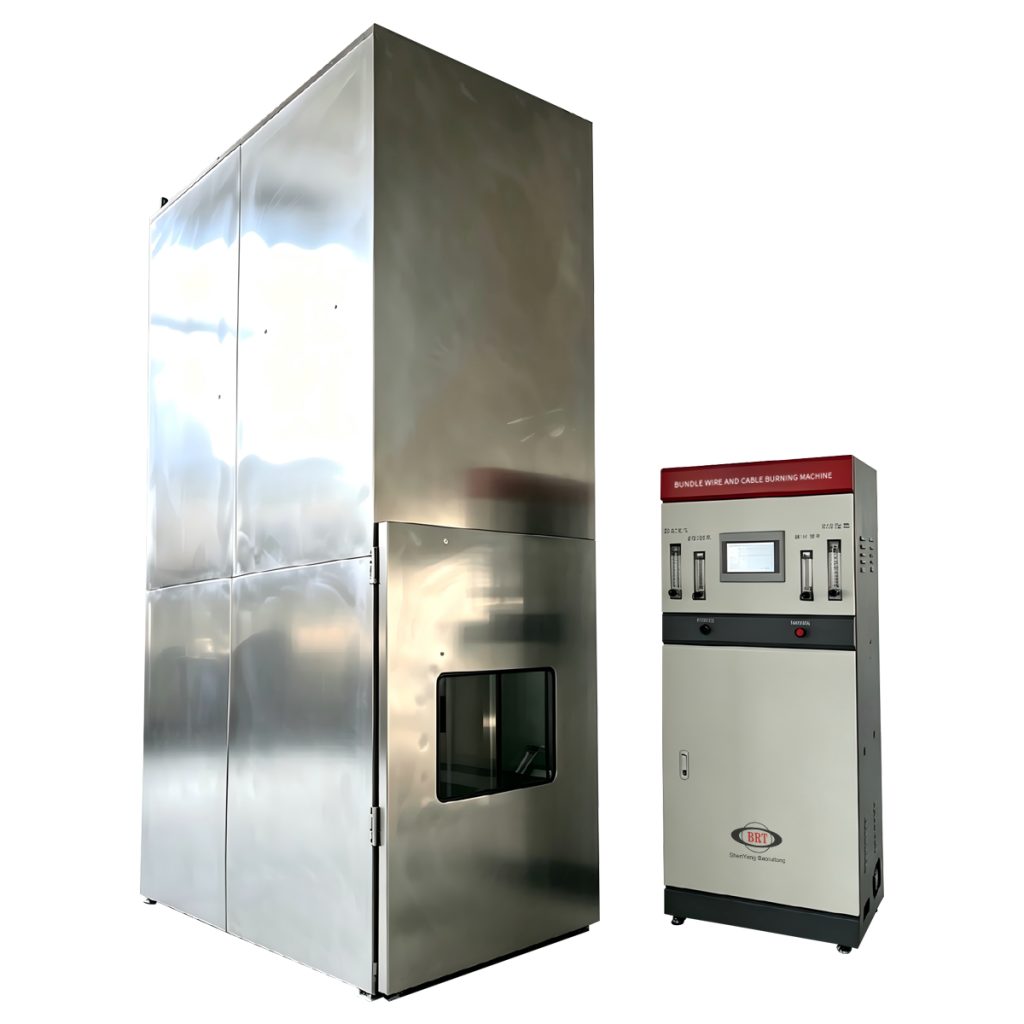

Fully enclosed stainless steel test cabinet with exhaust ventilation, fire suppression interlock and observation window, eliminating fire hazards during long-duration tray flame testing up to 20 minutes.
Target Users & Application Scenarios
- Cable manufacturing factories: Incoming material inspection, production batch quality control, new material R&D flame retardant performance verification
- Third-party certification laboratories: UL, CE, IEC certification pre-testing and official witness testing
- Electrical engineering institutes & university labs: Wire insulation material combustion research
- Importers & exporters: Cross-market compliance testing for North America, EU, Asia cable products
Complete Global Standard Compliance List
All test modes fully satisfy:
- UL Series: UL 1581, UL 2556, UL 1685
- IEC & EN Series: IEC 60332-1-2, IEC 60332-2-2, EN 60332-1-2, EN 60332-2-2
Closing Statement
As global electrical safety regulations grow stricter for building, industrial and appliance cables, unified multi-standard flame testing equipment becomes a core asset for cable manufacturers and testing laboratories. This integrated flame resistance test platform reduces testing complexity, shortens product certification cycles and delivers reliable, internationally recognized flammability test data for wires and cables of all materials and sizes.
