Why Combustibility Testing Is Non-Negotiable

Regulatory codes, insurance requirements and occupant safety mandates converge on one point: the combustibility characteristics of every material used in a building’s structure, façade, insulation and interior finishes must be documented, tested and classified against recognized standards. For the construction and safety industry, combustibility testing is non-negotiable.

Understanding Combustibility and Fire Reaction

Combustibility describes a material’s propensity to burn — to sustain a flame, release heat and contribute to fire propagation. The key fire reaction properties evaluated include:

• Ignitability — the ease with which a material ignites from an external flame or radiant heat source
• Flame spread — the rate at which fire propagates across a material surface
• Heat release rate (HRR) — the power output of a burning material; the most critical parameter for fire severity
• Smoke production — the quantity and opacity of smoke generated; a major determinant of life safety impact
• Burning droplets — whether flaming droplets or particles are produced that can spread fire

These properties collectively determine a material’s fire hazard contribution and its classification under building codes and fire test standards.

Key Combustibility Test Standards

ASTM E136 — Behavior of Materials in a Vertical Tube Furnace at 750 °C

ASTM E136 is the primary US standard for determining whether a material is “noncombustible” for building code purposes. A small specimen is placed in a preheated furnace at 750 °C and observed for flame production, specimen temperature rise and mass loss. A material qualifies as noncombustible if:

• No flaming occurs during the 30-minute test period
• Temperature rise does not exceed 30 °C above furnace temperature
• Mass loss does not exceed 50%

The International Building Code (IBC) references ASTM E136 to define noncombustible construction materials.

EN ISO 1182 — Non-Combustibility Test

The European equivalent of ASTM E136, EN ISO 1182 uses a furnace temperature of 750 °C with similar pass criteria, forming the basis for the Class A1 and A2 fire reaction classifications under EN 13501-1, the European standard for fire classification of construction products.

ASTM E84 — Surface Burning Characteristics (Steiner Tunnel Test)

ASTM E84 evaluates the flame spread index (FSI) and smoke developed index (SDI) of building products — wall and ceiling finishes, insulation and decorative materials — under standardized tunnel fire exposure. Results classify materials into:

• Class A (FSI 0–25, SDI 0–450) — suitable for all occupancies
• Class B (FSI 26–75) — limited applications
• Class C (FSI 76–200) — most restricted

ASTM E84 is mandated by the IBC for interior finish materials, and its results are required for product listings under UL 723.

ISO 5660 — Cone Calorimeter (Heat Release Rate Testing)

The cone calorimeter is the most scientifically rigorous fire test for building materials, measuring heat release rate (HRR), total heat release, mass loss rate, CO and CO₂ yields and smoke production rate under a defined external radiant heat flux (typically 35 or 50 kW/m²). HRR data from the cone calorimeter is used directly in fire engineering calculations and feeds the EN 13501-1 classification system at higher fire reaction classes (B, C, D).

ASTM E119 / ISO 834 — Fire Resistance of Building Assemblies

Distinct from fire reaction testing, fire resistance testing evaluates how long a complete building assembly (wall, floor, column) maintains structural integrity, prevents fire passage and limits heat transmission under a standard fire exposure. Fire resistance is measured in hours (e.g., 1-hour, 2-hour, 4-hour ratings) and is required for structural elements in compartmentalized construction.

Classification Systems for Building Materials

European Classification — EN 13501-1

EN 13501-1 classifies construction products from A1 (no contribution to fire) through F (no performance determined):

• A1, A2 — non-combustible or very limited combustibility (e.g., concrete, steel, mineral wool)
• B — very limited contribution to fire (e.g., certain gypsum boards, cement-bonded particle board)
• C, D — limited and acceptable contribution to fire (various wood-based products)
• E, F — higher combustibility; application-restricted

US International Building Code (IBC) Classification

The IBC classifies construction types (Type I through V) based on the combustibility of structural elements, with Type I (noncombustible) required for high-rise and high-occupancy buildings and Type V (combustible) permitted only for low-rise residential and light commercial structures.

What This Means for Fire Testing Equipment

Accurate combustibility classification ensures that architects, engineers and authorities have reliable data to make informed material selection decisions, ultimately reducing fire risk and protecting occupant safety. For laboratories and manufacturers, this requires precision fire testing instruments:

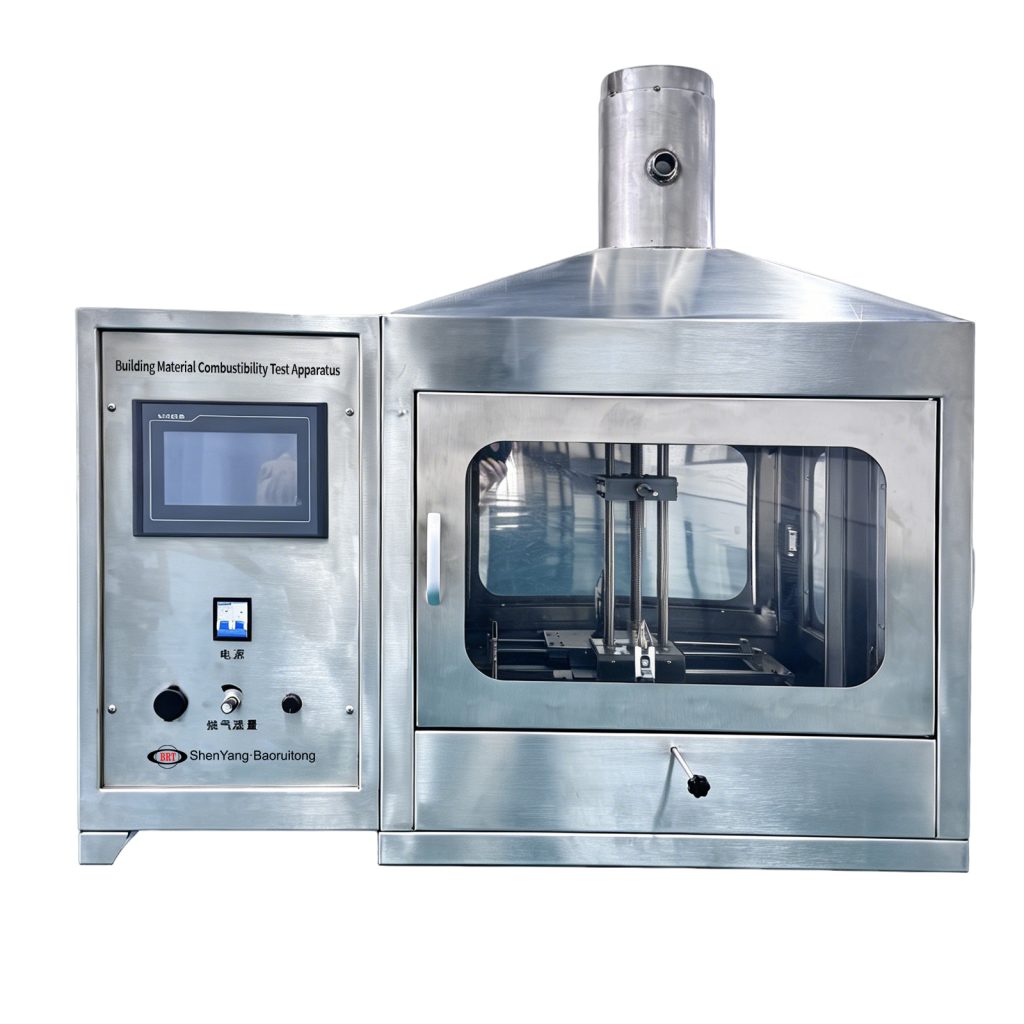

• Non-combustibility furnaces for ASTM E136 and EN ISO 1182 testing
• Steiner tunnel / flame spread testers for ASTM E84 FSI and SDI classification
• Cone calorimeters for ISO 5660 heat release rate analysis
• Fire resistance furnaces for ASTM E119 / ISO 834 assembly testing

Why Choose Shenyang Baoruitong for Fire Testing Instruments

• Standards-first engineering — instruments designed for ASTM E136, EN ISO 1182, ASTM E84, ISO 5660, ASTM E119 and ISO 834 testing workflows
• Precision and repeatability — accurate, reproducible data for classification and compliance
• One-year warranty service period — professional after-sales support, calibration guidance and technical consultation included
• Combustion testing expertise — a dedicated manufacturer of fire testing instruments for the building materials, plastics, textile and flooring industries

About Shenyang Baoruitong Automation Equipment Co., Ltd.

Shenyang Baoruitong Automation Equipment Co., Ltd. is a professional manufacturer of combustion testing instruments and laboratory equipment for the plastics, foam, textile, paper and building materials industries. Headquartered in Shenyang, China, the company is committed to precision engineering and international standard compliance, helping manufacturers worldwide verify flame retardancy, improve product safety and meet regulatory requirements. Every instrument is backed by technical consultation, calibration guidance, after-sales support and a one-year warranty service period.

For more information about Shenyang Baoruitong’s fire testing instruments, pricing or a quotation, please contact our sales team or visit our website.

FAQ

Q1: What is combustibility testing for building materials? Combustibility testing evaluates whether a building material will ignite, sustain combustion or contribute to fire spread when exposed to heat or flame, providing data used for classification, code compliance and material specification decisions.

Q2: What is the difference between combustible and non-combustible materials? Non-combustible materials do not ignite or support combustion under defined test conditions (e.g., ASTM E136 or EN ISO 1182 at 750 °C), while combustible materials ignite and contribute to fire development.

Q3: Which standards apply to building material combustibility testing? Key standards include ASTM E136 (non-combustibility), EN ISO 1182 (non-combustibility), ASTM E84 (flame spread and smoke developed indices), ISO 5660 (cone calorimeter heat release rate) and ASTM E119 / ISO 834 (fire resistance of assemblies).

Q4: What is the Euroclass system for building material fire classification? The Euroclass system, defined under EN 13501-1, classifies construction products from A1 to F based on reaction-to-fire performance. A1 and A2 are non-combustible classes; B through F represent increasing levels of combustibility and fire contribution.

Q5: What service does Shenyang Baoruitong provide with its fire testing instruments? Each Baoruitong fire testing instrument is covered by a one-year warranty service period, including professional after-sales support, calibration guidance and technical consultation.
