What is the UL94 Flammability Test?

The UL94 standard is the globally recognized benchmark for testing the flammability of plastic materials used in devices and appliances. It evaluates how a material resists ignition, its tendency to spread flames, and whether it produces flaming drips that could ignite surrounding surfaces.

To achieve accurate classification, laboratories rely on advanced equipment like the FTech-UL 94, which provides a controlled environment to simulate real-world fire hazards.

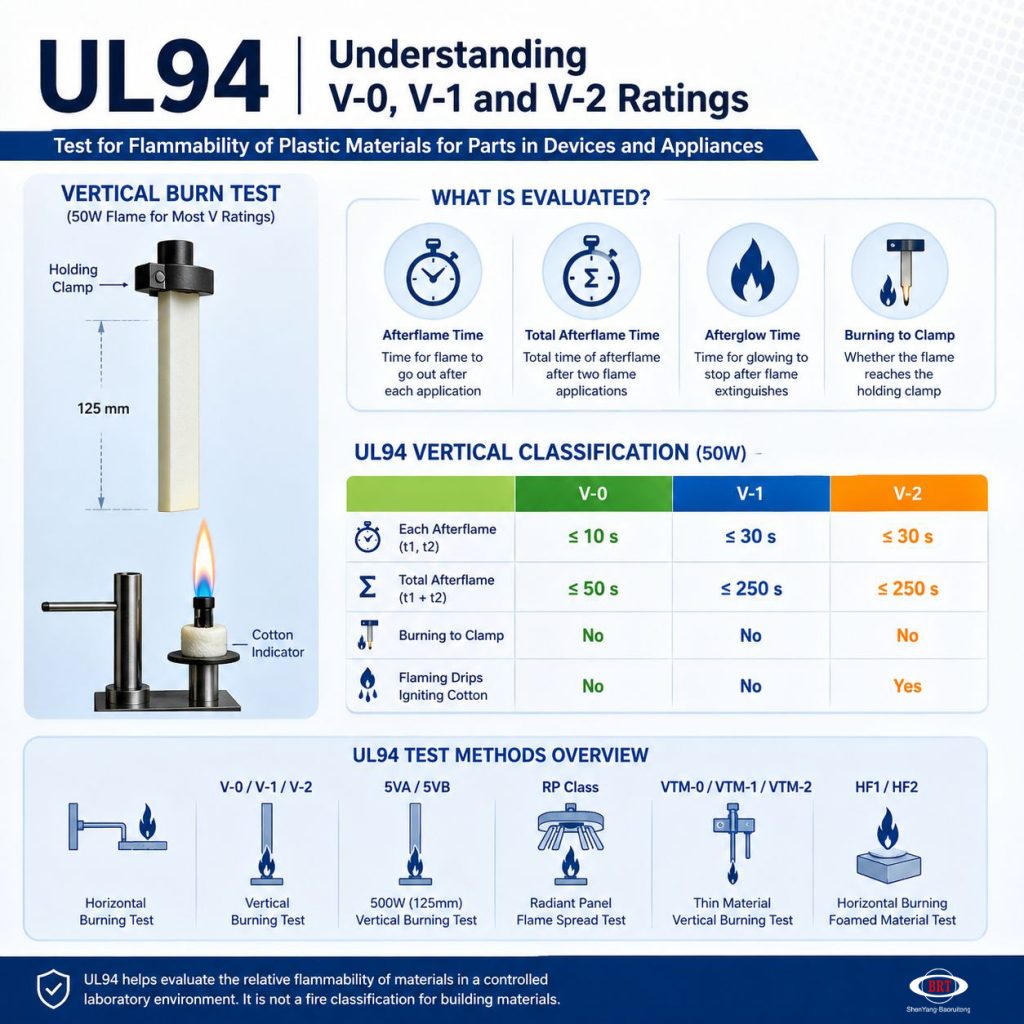

Decoding V-0, V-1, and V-2 Ratings

The most crucial part of the UL94 standard is the Vertical Burn Test. Depending on the duration of the afterflame and the presence of flaming drips, materials are classified into three primary categories:

• V-0 Rating: The highest safety level for vertical tests. The flame must extinguish within 10 seconds, and no flaming drips are allowed.
• V-1 Rating: The flame must extinguish within 30 seconds, with no flaming drips permitted.
• V-2 Rating: Similar to V-1 (extinguishment within 30 seconds), but flaming drips that ignite a cotton indicator are permitted.

Beyond these, the FTech-UL 94 Apparatus is also capable of performing Horizontal Burning Tests (HB), 5VA/5VB (500W flame), and tests for thin or foamed materials (VTM and HF classes).

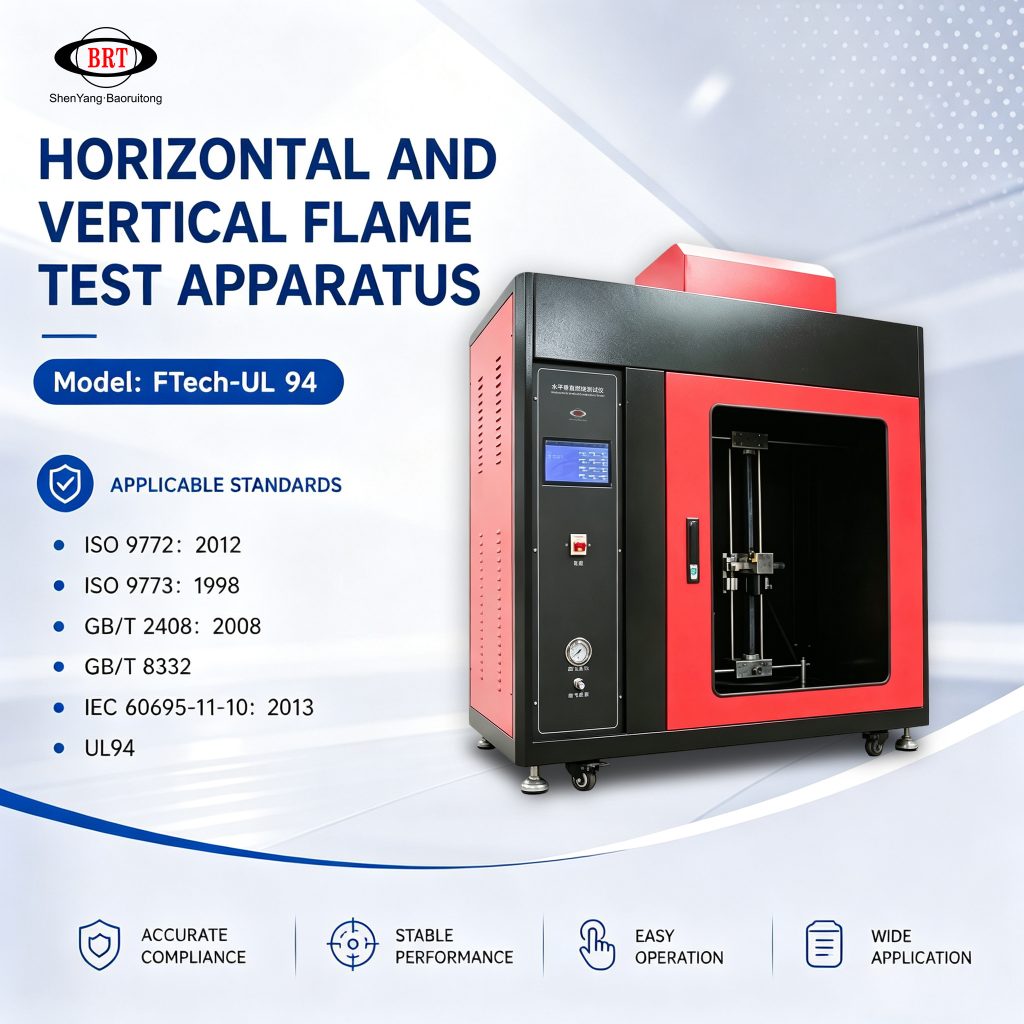

Product Features: FTech-UL 94 Flame Test Apparatus

The Model FTech-UL 94 by Baoruitong Automation Equipment Co., Ltd. is engineered to deliver stable performance and easy operation. Its key selling points include:

1. Accurate Compliance: Fully compliant with a wide range of international standards, including UL94, ISO 9772, ISO 9773, IEC 60695-11-10, and GB/T 2408.
2. Stable Performance: Features high-precision gas flow control and timing systems to ensure repeatable and reliable test results.
3. Easy Operation: Equipped with a user-friendly touch-screen interface, allowing for seamless switching between horizontal and vertical test modes.
4. Wide Application: Ideal for testing plastics, rubber, and foam components used in everything from household appliances to complex aerospace parts.

Commitment to Quality: 1-Year Warranty

We understand that laboratory uptime is vital. Baoruitong Automation Equipment Co., Ltd. provides a 1-year warranty (One-year warranty) on every FTech-UL 94 apparatus sold. Our global support team offers expert guidance and technical assistance to ensure your fire testing operations remain uninterrupted and compliant with the latest safety regulations.

FAQ

Q1: Does the UL94 standard apply to building materials?

A: No. As noted in the standard guidelines, UL94 is intended for evaluating materials used in parts of devices and appliances. It is not a fire classification for building or construction materials.

Q2: What is “Afterflame Time” vs. “Afterglow Time”?

A: Afterflame Time is the time the flame continues to burn after the ignition source is removed. Afterglow Time is the time the material continues to glow (without a flame) after the flaming has ceased. Both are critical for determining the final V-rating.

Q3: Why is the “Cotton Indicator” used in the Vertical Burn Test?

A: The cotton indicator is placed beneath the sample to detect flaming drips. If the material drips and ignites the cotton, it usually falls into the V-2 category rather than V-0 or V-1.

Q4: Can one machine perform both Horizontal and Vertical tests?

A: Yes. The FTech-UL 94 is a combination apparatus designed with a flexible sample holder and adjustable burner to accommodate both Horizontal (HB) and Vertical (V) test methods in a single chamber.

Q5: What safety features are included in the FTech-UL 94?

A: The apparatus includes a sealed combustion chamber with a tempered glass observation window and an integrated exhaust system to safely remove toxic fumes generated during the burning process.
