TGA-1450B High-Temperature Thermogravimetric Analyzer for Global Laboratory & Material Research Markets
Thermogravimetric Analysis (TGA) measures sample mass variation under programmed temperature changes, which is core to testing thermal stability, volatile content, ash residue, decomposition behavior, moisture and oxidation resistance of raw materials. Compared with conventional TGA devices, the TGA-1450B solves common pain points including temperature drift interference, complicated operation, unstable gas switching and poor system compatibility, balancing ultra-high temperature performance with daily lab usability.
Core Technical Advantages of TGA-1450B
1. Ultra-Wide Temperature Range & Precise Temperature Control
- Max operating temperature reaches 1450℃, temperature resolution up to 0.01℃
- Adjustable heating rate: 0.1–80℃/min; cooling rate: 0.1–30℃/min (stable constant cooling above 100℃)
- Advanced PID closed-loop temperature regulation ensures uniform heating curve without overshoot; built-in sample-based temperature calibration function to eliminate test deviation

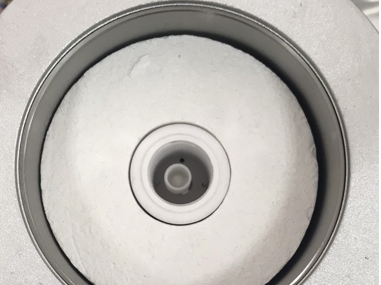

Detachable Furnace Sample Holder
2. High-Precision Electromagnetic Balance & Anti-Interference Design
- Bottom-pan electromagnetic force balance system, weighing range 0.01mg–2g, TG resolution accurate to 0.01mg
- Independent water-bath insulation system completely isolates balance from high furnace heat, effectively preventing weighing drift caused by temperature fluctuation
- Fully mechanical fixed sample support rod, detachable & replaceable sample holder, compatible with multiple crucible sizes for diverse sample testing; easy disassembly for cleaning after contamination
3. Intelligent Touch Screen & Automated Programming Workflow
- Industrial widescreen touch interface, real-time display of set temperature, actual sample temperature, TG mass signal and all equipment status switches
- Customizable user-programmable test procedures: dozens of editable software commands support one-click fully automatic measurement, simplifying repeated complex testing workflows
TGA Supporting Software Operation Interface
4. Stable Dual-Gas Control & Seamless Data Transmission
- Dual-channel automatic gas switching (nitrogen / oxygen), fast gas conversion with short stabilization time, ideal for inert atmosphere and oxidation atmosphere comparative tests
- Gigabit Ethernet communication port with auto-reconnect function, stable long-distance data transmission without interruption
- Supporting software adapts to all screen resolutions, compatible with Windows 7/8/10/11 laptops & desktops; curves auto-adjust display size and supports TXT/TG data export
5. Compact Safe Furnace & Complete Standard Configuration
- Integrated fixed furnace structure without lifting mechanism, safer operation and smaller footprint (70cm×44cm×42cm, net weight 50kg)
- Imported core chips and sensors guarantee long-term stable operation; total power consumption only 1000W, energy-saving for daily lab use
Complete Standard & Optional Accessories
Standard Packing List (Full Set Delivered)
1 set TGA main unit, 50pcs Φ6×10mm ceramic crucibles, power cable, gigabit network cable, operation software CD, software encryption key, nitrogen/oxygen/exhaust tubing (5m each), water pump & water hoses, tweezers, spatula, pressure reducing valve connectors, standard calibration samples (calcium oxalate monohydrate, anhydrous copper sulfate), user manual, qualification certificate and maintenance warranty document.
Optional Custom Accessories
- Curie-point magnet for Curie temperature testing of magnetic materials
- Standard temperature correction reference samples (153℃ / 358℃ / 772℃ / 1131℃)
Wide Application Scenarios
The TGA-1450B serves multi-industry material characterization demands:
- Polymer & Plastic: Volatiles, carbon black, ash content, thermal aging stability
- New Energy Battery: Electrode material thermal decomposition, electrolyte weight loss
- Pharmaceutical: Drug thermal stability, residual solvent, excipient composition analysis
- Ceramic, Glass & Metal Powder: Sintering weight loss, impurity content detection
- Chemical & Environmental: Catalyst activity, waste organic decomposition, coal proximate analysis
- University & Research Labs: Material thermal behavior research, standard academic testing
Executive Statement
“After two years of R&D optimization, the TGA-1450B is built to fill the gap between high-end imported TGA and low-precision domestic equipment,” said BRT Product Director. “We retain industrial-grade precision while cutting maintenance and procurement costs for global labs. The one-click automation, cross-Windows software and dual-gas design greatly lower operation thresholds for new technicians, and the 1450℃ high-temperature capacity covers most inorganic and organic material testing requirements. We provide full after-sales support including remote software debugging, operation training and spare parts supply for overseas distributors and end users.”
About BRT
BRT specializes in R&D, manufacturing and global export of thermal analysis instruments including thermogravimetric analyzers (TGA), differential scanning calorimeters (DSC) and simultaneous thermal analyzers (STA). All products pass strict factory calibration and quality inspection, serving customers across Europe, Southeast Asia, North America and Middle East. BRT offers OEM & ODM customization, fast lead time and professional technical after-sales service for laboratory equipment distributors, university procurement and industrial testing enterprises.
