CYD Smoke Toxicity Test Equipment | GB/T20285 DIN53436 JIS A 1321 Material Smoke Hazard Tester

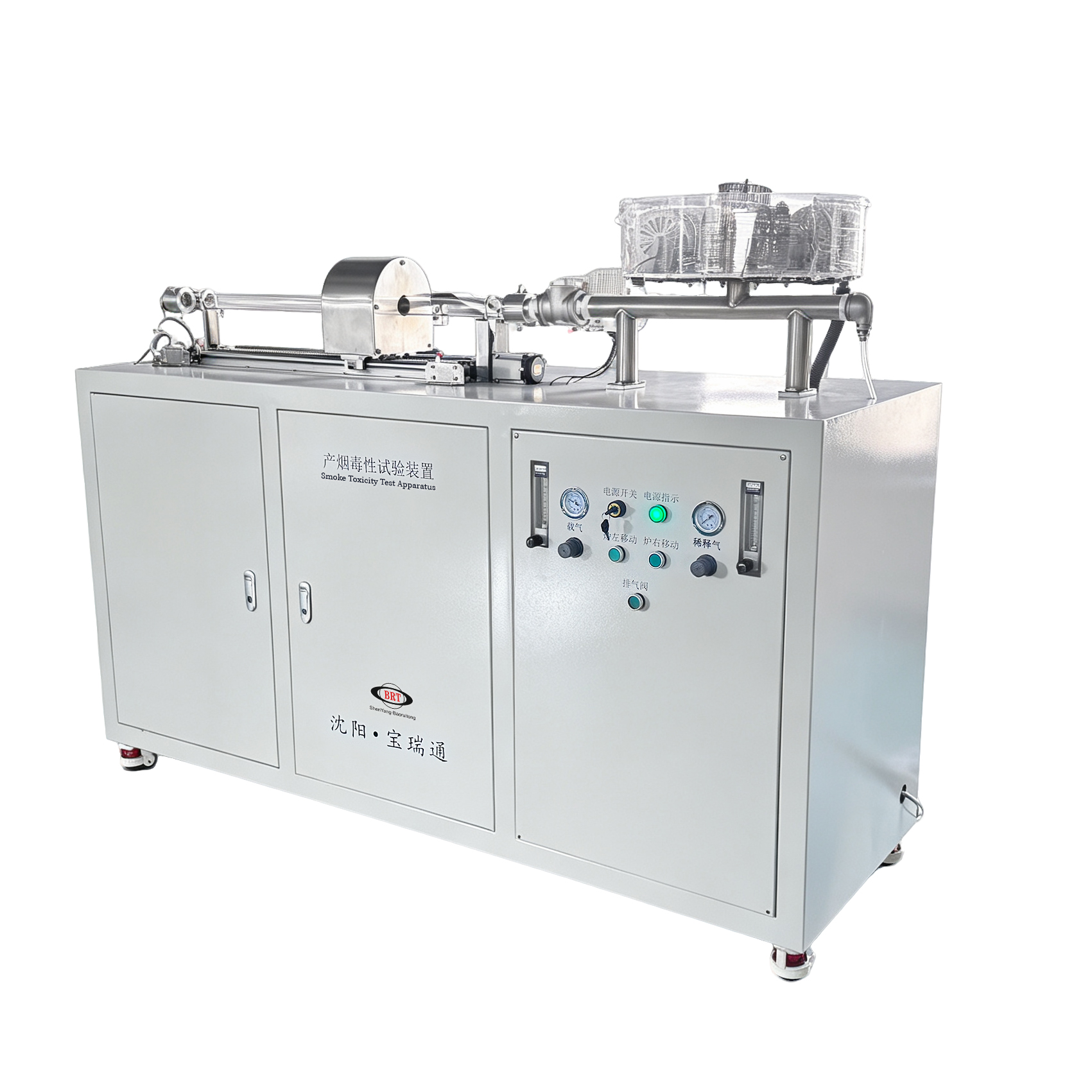

1. Product Overview
2. Applicable Test Standards
- GB/T20285-2006 Hazard Classification of Smoke Toxicity for Materials (Mandatory National Standard)
- Reference Standard DIN53436 Germany Smoke Toxicity Test Method
- Reference Standard JIS A 1321 Japan Construction Material Flue Gas Toxicity Test
3. Core Technical Specifications
3.1 Annular Heating Furnace
- Shell: Corrosion-resistant welded stainless steel plate
- Furnace tube: Energy-saving all-fiber material, ID 47±1mm, length 95–110mm
- Heating wire: Imported Swedish Kanthal alloy, service life 8x longer than domestic counterparts
- Temperature control system: Thermocouple + cold junction compensation + digital temperature display, fully matches GB/T20285 heating curve requirements
3.2 Quartz Combustion Pipeline Assembly
- Quartz tube dimension: Nominal OD 36±1mm, wall thickness 2±0.5mm, length 1000–1300mm
- Matching quartz sample boat for material loading
- Adjustable horizontal & vertical support stand for quartz tube
- All connecting ports precision ground for full airtight sealing, zero flue leakage
3.3 Flue Gas Distribution & Gas Supply
- Flue gas mixing unit: 3-way cock + dilution air pipeline + gas distribution elbow, all pipes 36±1mm diameter
- Gas supply system: Air compressor, precision regulating valves & rotameters for carrier gas and dilution air

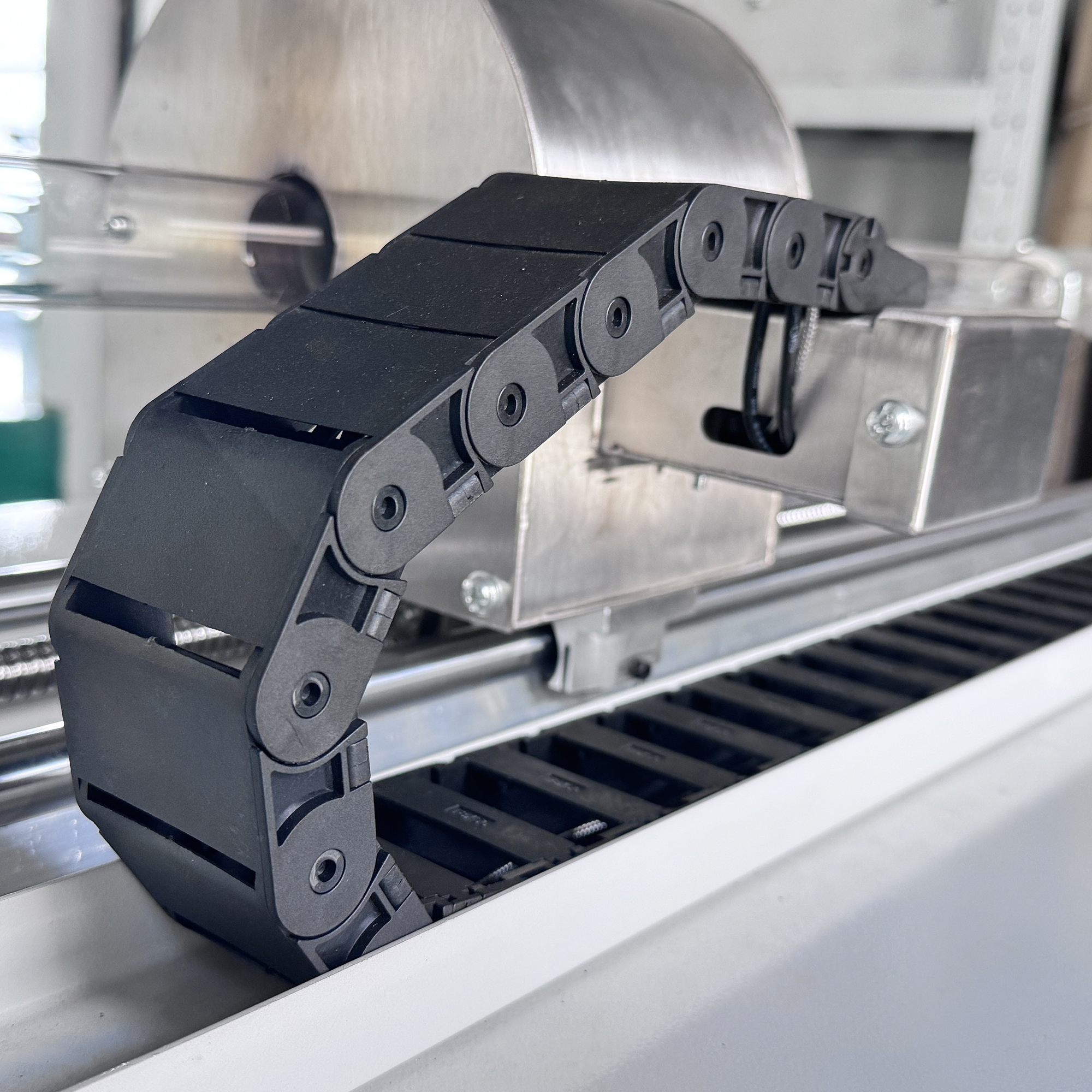

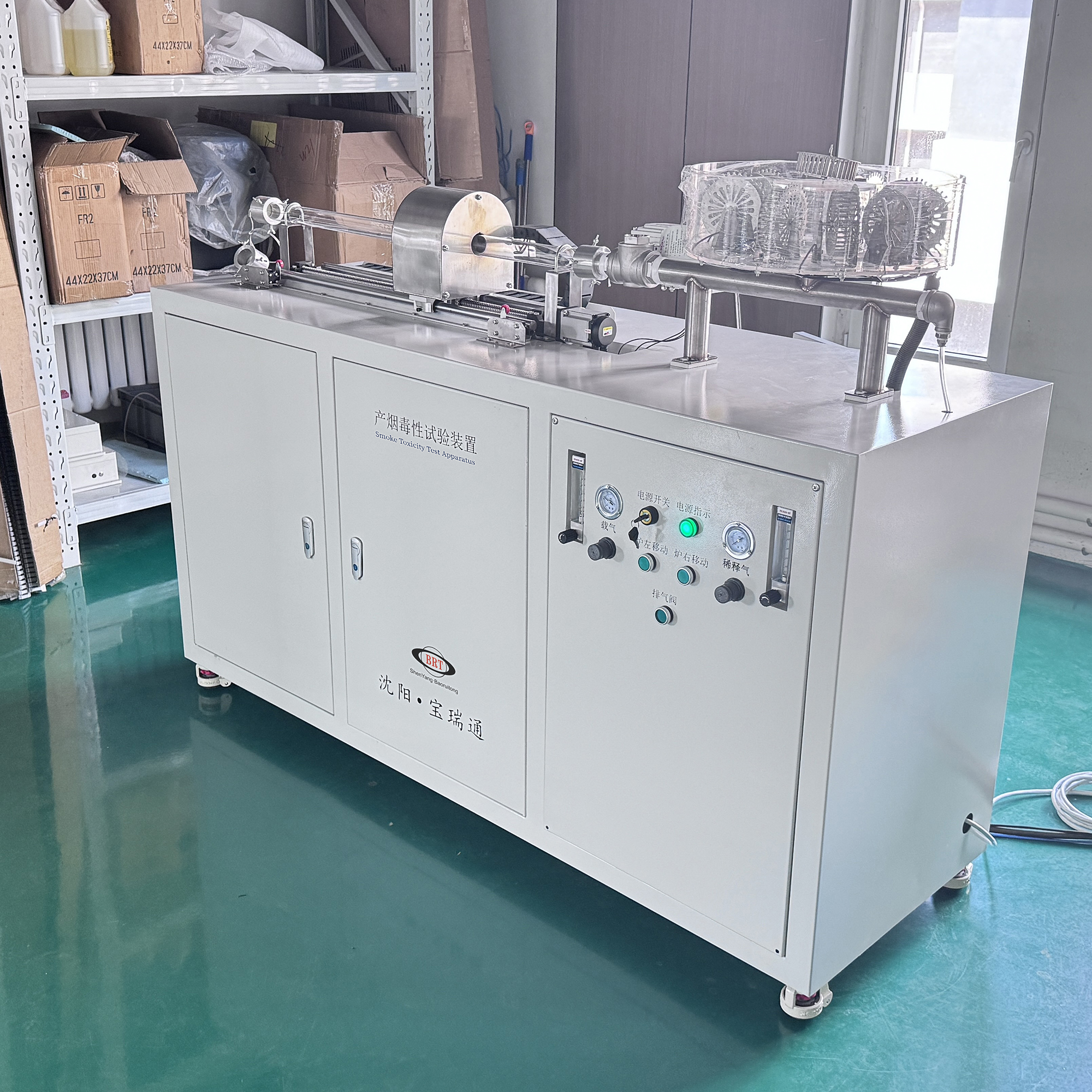

3.4 Furnace Displacement Drive
- Drive type: Low-noise stepper motor
- Standard moving speed: 10±0.1 mm/min
- Adjustable speed range: 5–50 mm/min
- Max travel distance: Over 600 mm, fast auto reset after test for high efficiency

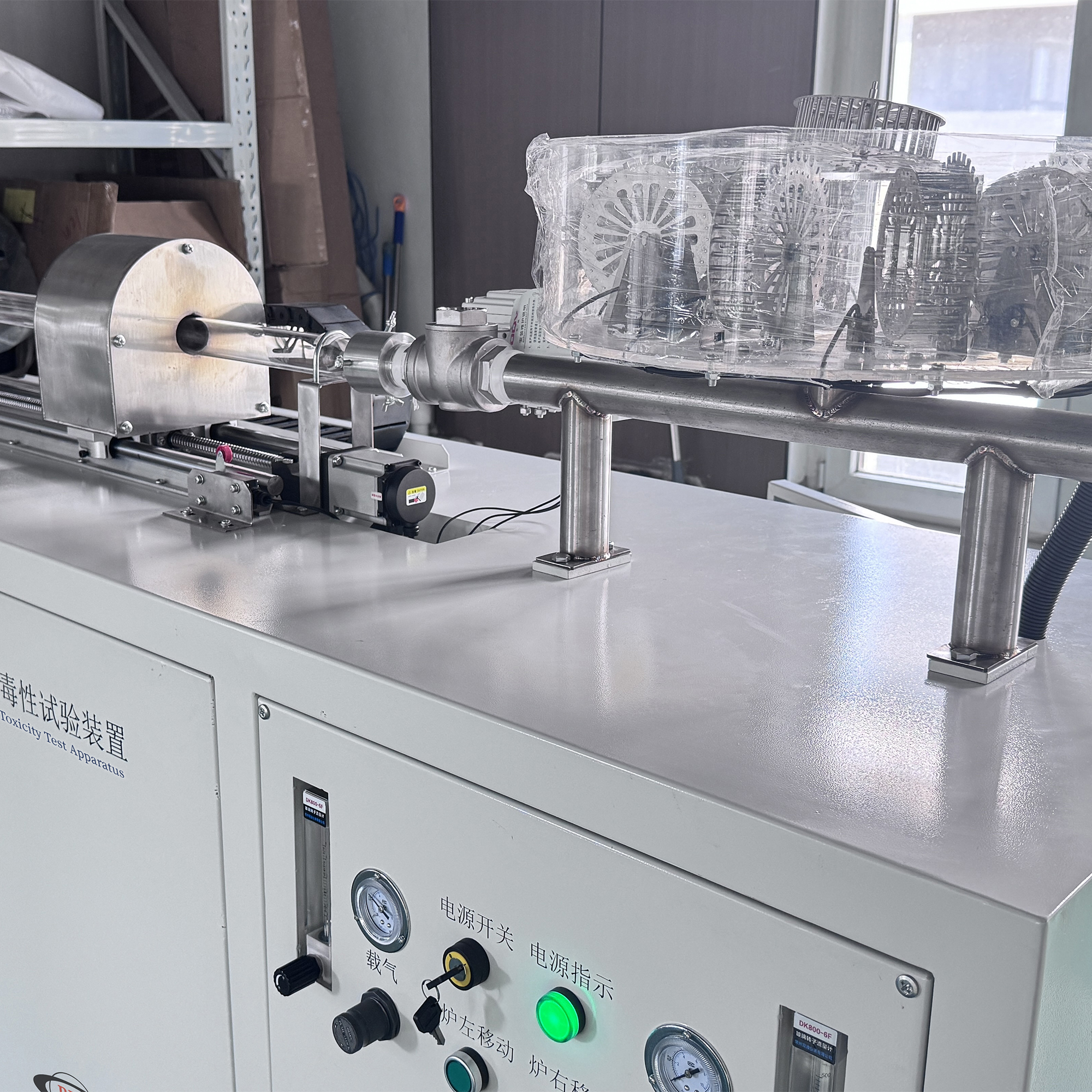

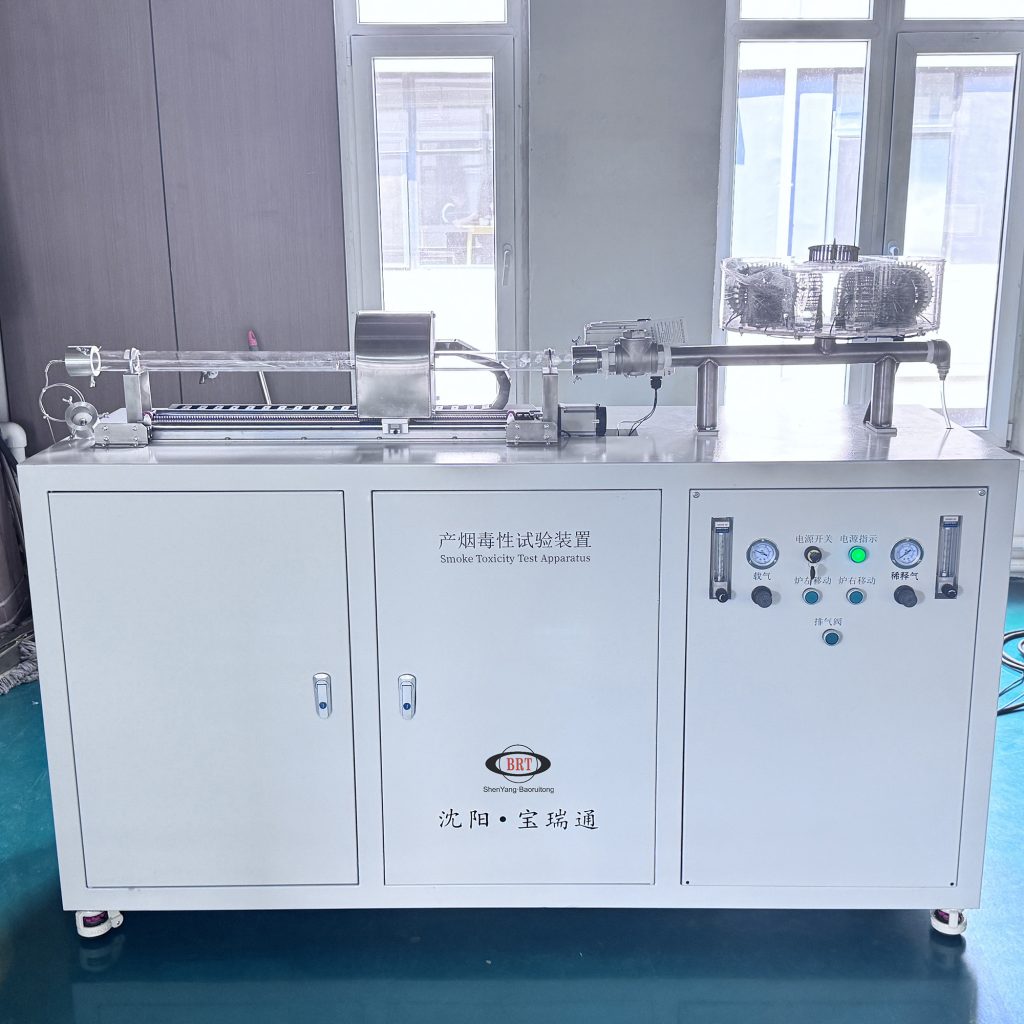

3.5 Animal Exposure & Detection System
- Rotating mouse cage: Mold-stamped aluminum alloy, single cage weight 60±10g
- Exposure chamber: Transparent plexiglass, simultaneous test for up to 10 mice
- Activity sensor: Hall effect sensor, captures 1/2 rotation tiny movement; 10-channel synchronous real-time data recording on PC
- Post-test output: Auto-generate activity spectrum chart & printable formal test report
3.6 Supporting Configuration
- Full computer intelligent control system with 10 functional software modules
- Exhaust design: Direct waste gas discharge to ventilation duct, no extra fume hood required
4. Main Product Features
Multi-standard Compatibility for Global Smoke Toxicity Certification
Fully meets GB/T20285 core requirements, compatible with DIN53436 and JIS A 1321 test protocols, test data recognized for domestic and international material smoke hazard grading reports.
Imported Long-Lasting Kanthal Heating Coil
Swedish Kanthal electric heating wire delivers stable uniform heating; service life 8 times longer than ordinary domestic heating elements, cutting frequent replacement maintenance cost.
Precision Stepper Motor Furnace Displacement Control
0.1mm speed accuracy with 5–50mm/min adjustable range, fast automatic reset after each test to shorten batch testing cycle and improve lab daily throughput.
Airtight Quartz Pipeline System with Zero Gas Leakage
All tube joints adopt precision grinding sealing technology; waste gas can be directly connected to workshop ventilation pipeline, no smoke spillage, eliminating need for extra laboratory fume hood.
10-Channel Synchronous Mouse Activity Real-Time Recording
High-sensitivity Hall sensors capture tiny rotation movements of each cage; PC displays 10 groups of activity curves simultaneously, auto archives data and prints complete toxicity test reports.
Large-Capacity Transparent Plexiglass Exposure Chamber
Clear organic glass chamber allows direct visual observation of mouse reaction; supports simultaneous exposure test for 10 test mice to improve data comparability of parallel samples.
All-In-One Intelligent Computer Operating Software
Independent 10 functional modules covering login, parameter setup, temperature monitoring, animal observation, data storage and report export; full-automatic one-click test operation with minimal manual intervention.
Complete Integrated Gas Mixing & Dilution Unit
Independent carrier gas and dilution air flow control valves, stable proportional flue gas dilution to create standardized toxic smoke concentration environment as specified in standards.
5. Application & Target Customers
- Construction board, plastic, rubber, foam and fireproof material manufacturers
- Third-party fire safety & environmental hazard certification testing laboratories
- Flame retardant additive and composite material R&D research institutes
- University fire protection engineering & material science laboratories
- Rail transit, ship interior decorative material inspection institutions
