Description
Highlights at a glance
- Wide test applicability: Tests ring stiffness, ring flexibility, creep and flattening performance for DN≤1500mm metal, plastic and composite pipes, complying with ISO 9969 and EN 13476-1 standards.
- Ultra-high precision measurement: 0.5 accuracy grade, ±0.5% force indication error and ultra-high force resolution, with precise control over force, deformation and displacement rates.
- Stable rigid gantry structure: High-rigidity four-column frame with servo drive and backlash-free ball screw, paired with high-precision force sensors for steady long-term testing.
- Comprehensive deformation measuring accessories: Complete matched fixtures and dual-range inner diameter deformation gauges to accurately capture pipe deformation data.
- Intelligent digital closed-loop control: Preloaded standard test programs, data storage/export, English test software, handheld controller and network compatible measurement system.
- Full safety & humanized design: Multi-layer safety protections including overload and limit stops, casters and leveling feet for easy installation, modular electric cabinet for simple maintenance.
1.Product Introduction:

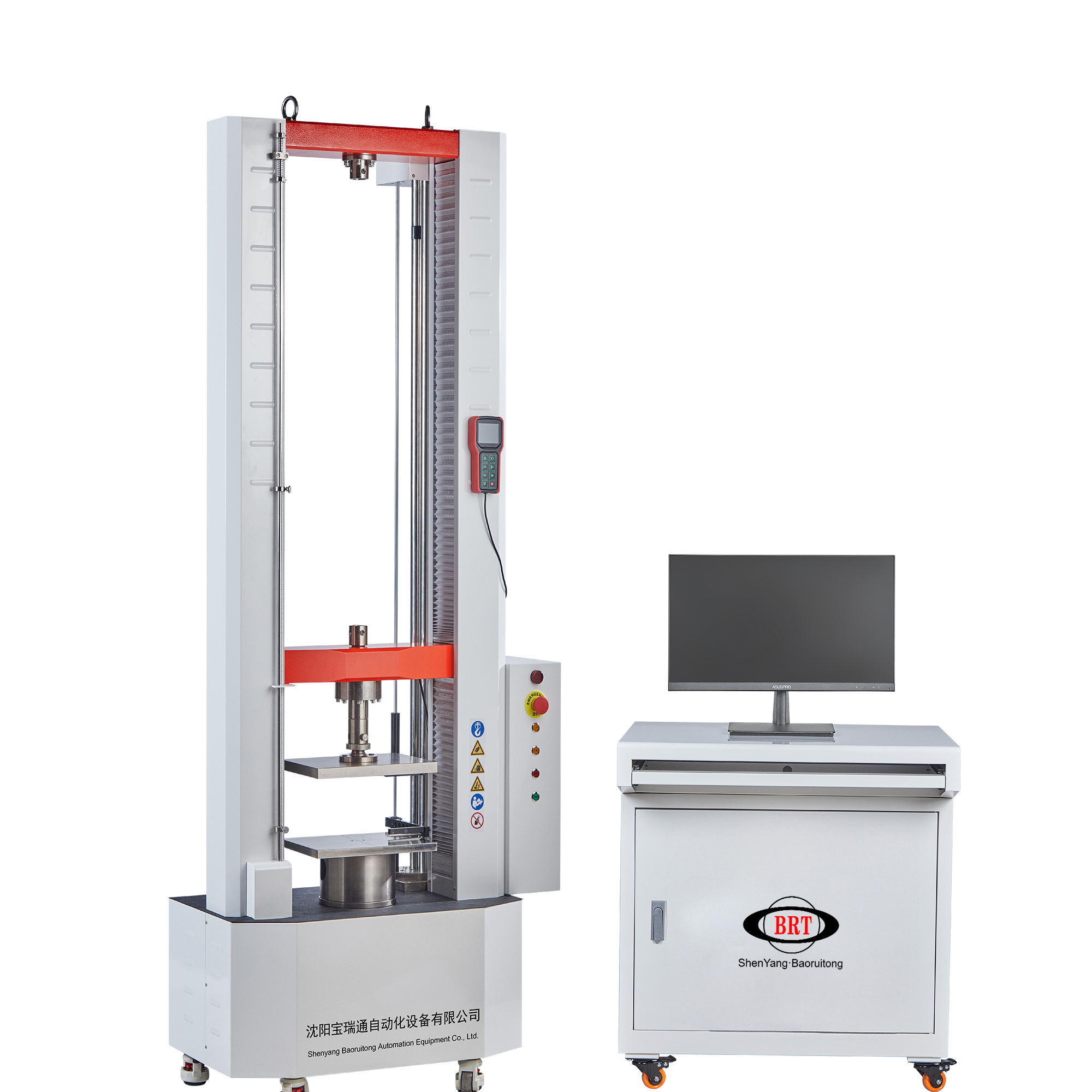

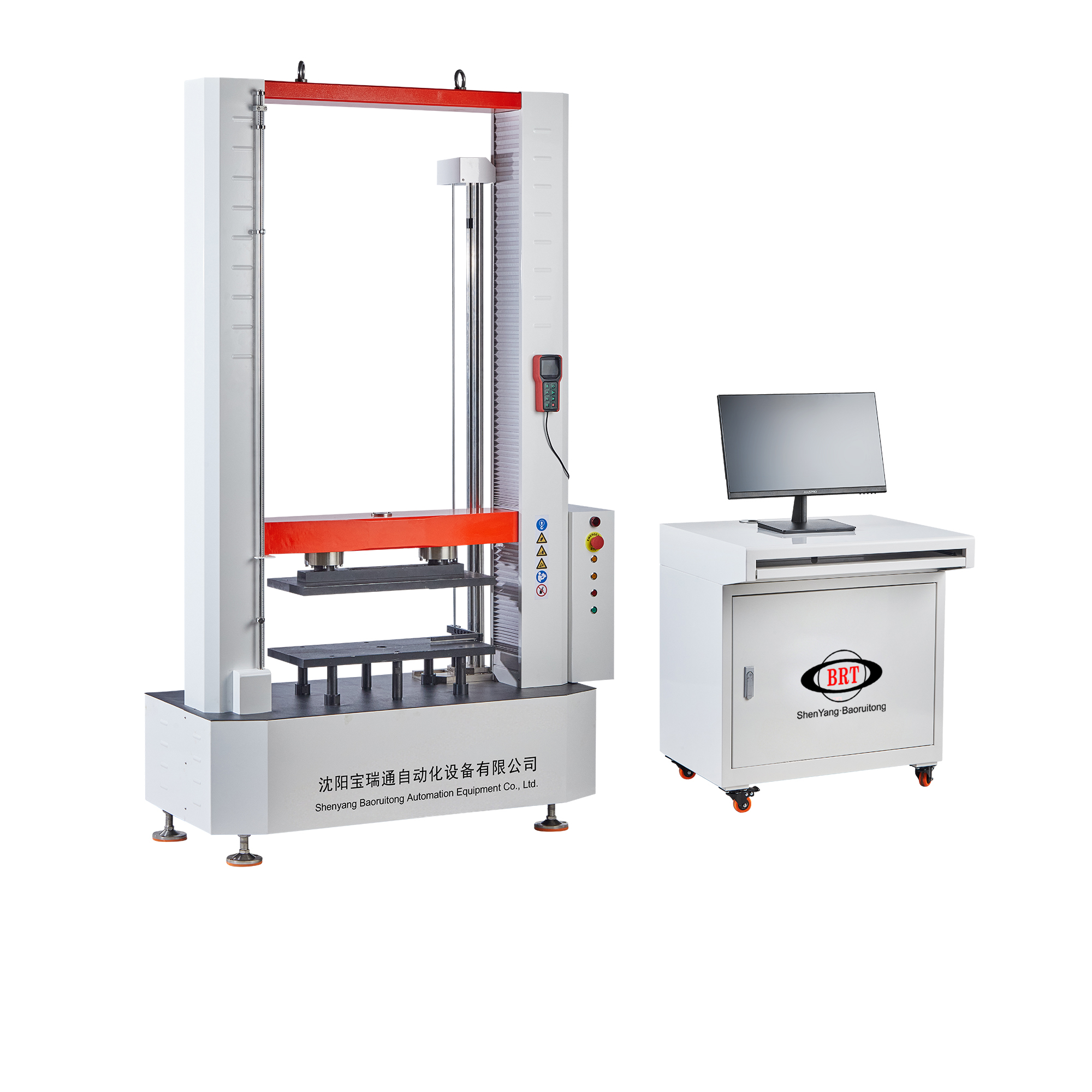

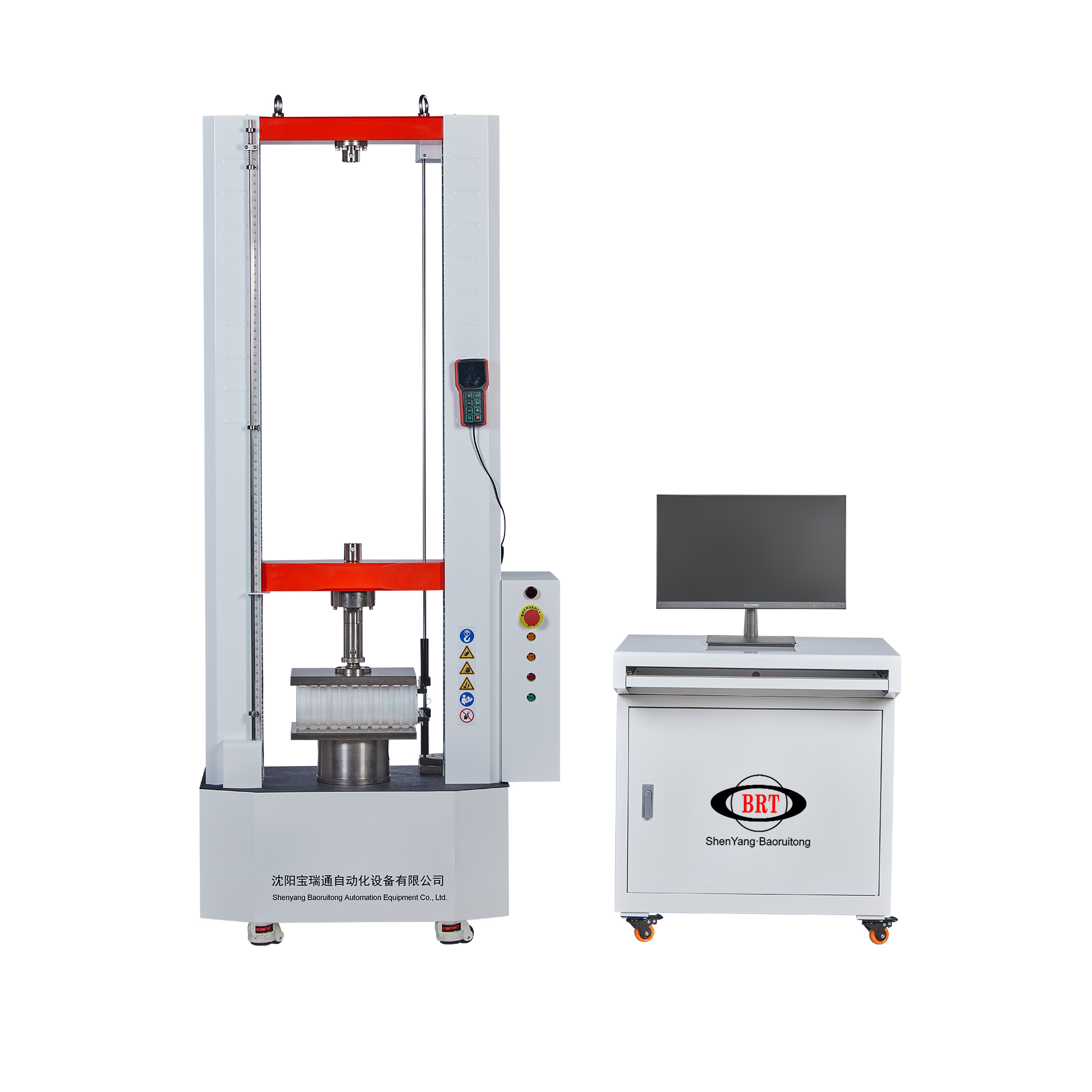

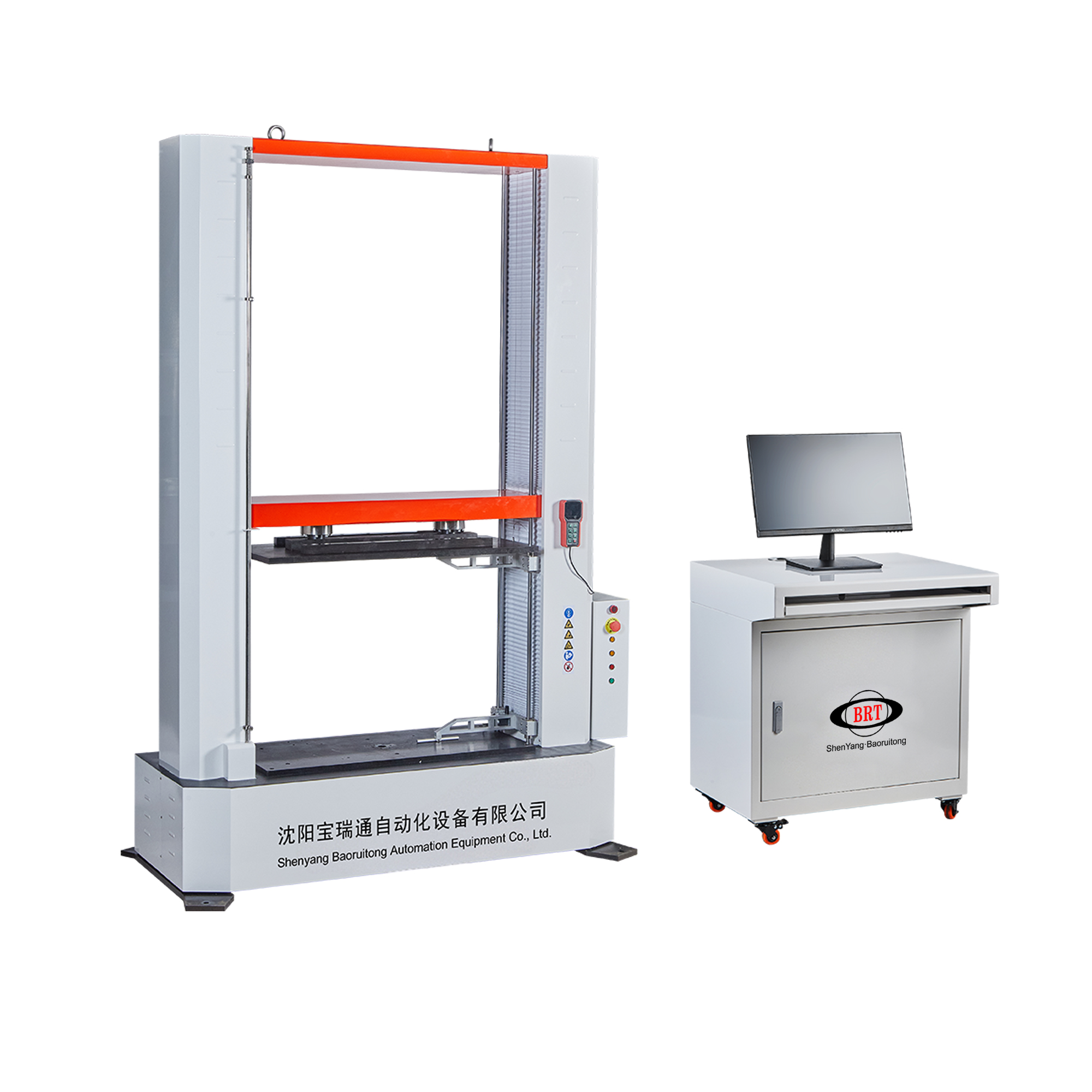

Used for testing and researching mechanical performance indicators of pipes with a nominal diameter DN≤1500mm (can be customized for increased height); applicable to various metal, non-metal, composite, and special-shaped pipes for ring stiffness tests, ring flexibility tests, flattening tests, uniform load tests, continuous creep rate tests (1000h/42d), bending level, and other mechanical performance evaluations.
Meets Standards：
EN 13476-1 Thermoplastic Plastic Pipe Systems for Non-Pressure Buried Drainage and Sewerage
ISO 9969 Determination of the Ring Stiffness of Thermoplastic Plastic Pipes
2.Key technical specifications:
1 | maximum test force | WD-50H（50kN） |
2 | test machine level | 0.5 magnitude |
3 | load measurement range | 0.5%～100%FS |
4 | relative indication error | ±0.5% |
5 | test force resolution | 1/±500000FS (full-range resolution remains unchanged) |
6 | range of deformation measurement | 0.2%～100% FS |
7 | force rate control range | 0.005%～5%FS/S |
8 | rate control precision | When the rate is below 0.05%FS, it remains within ±1% of the set value. When the rate is ≥0.05%FS, it falls within ±0.5% of the set value. |
9 | rate of deformation regulation range | 0.005～5%FS/s； |
10 | rate control accuracy | When the rate is <0.05%FS/s, it remains within ±1% of the set value. When the rate ≥0.05%FS/s, it is within ±0.5% of the set value. |
11 | rate of displacement regulation range | 0.01～500mm/min； |
12 | displacement rate control accuracy | within ±0.2% of the set value; |
13 | constant force, constant deformation, constant displacement control range | 0.5%～100%FS |
14 | Control Accuracy of Constant Force, Constant Deformation and Constant Displacement | When the set value is ≥10%FS, it should be within ±0.5% of the set value. When the set value is less than 10% of the full scale (FS), it is within ±1% of the set value. |
15 | effective test span | 1100mm |
16 | maximum beam movement distance | 1700mm (custom height available) |
17 | internal deformation measurement range | 180-1500mm (custom height available) |
18 | supply voltage | ~220V±10% 50Hz (must be reliably grounded) |
19 | machine power | 750W |
20 | Host dimensions (length*width*height) | ≈1650x900x2500mm |
21 | Control cabinet dimensions (length*width*height) | ≈700*600*750mm |
22 | weight of main body | ≈1200kg |
23 | weight of control cabinet | ≈30kg |
3.Functional characteristics:
u The high-strength optical axis fixes the upper crossbeam and worktable, forming a high-rigidity gantry frame main machine:
u The transmission structure consists of a servo motor, reducer, synchronous belt, pulley, and precision backlash-free ball screw, enabling the crossbeam to move up and down; the testing process is controlled by measurement and control software:
u High-precision spoke-type/S-type force sensor with a measurement accuracy of 0.5 class;
u Various complete test fixtures, pin connections, and simple nut locking for easy operation;
u Equipped with extensometers, displacement meters, and large-deformation measurement instruments to accurately measure material deformation data;
u Powerful fully digital closed-loop, multi-channel measurement and control system with built-in standard testing methods, automatic control of the testing process, data storage and export capabilities, and network compatibility with multiple companies;
u The bottom of the main machine is designed with casters/adjustable leveling feet for convenient installation and later adjustment;
u Modular electrical control box for easy troubleshooting;
u Overload protection for test force, safety limit protection, overcurrent and overvoltage protection, status indicator lights, voice operation prompts, and an emergency stop switch.
4.Product configuration:
order number | name | content | remarks |
1 | load rack | High rigidity (4 columns + 2 lead screws), high stability, dual space, gantry load-bearing frame | 1 unit |
2 | driving system | AC servo motor and its driver | 1 set |
3 | TT&C system | Fully digital closed-loop, multi-channel, multifunctional, and easy to operate | 1 set |
4 | force cell | 50KN , spoke type | 2 pieces |
5 | Handheld controller | Limited, LCD | 1 |
6 | Ring stiffness inner diameter deformation measuring device | 180mm～1500mm | 1 set |
7 | Ring stiffness inner diameter deformation measuring device | 45mm～800mm | apolegamy |
8 | ring stiffness rigid pressure plate | 1000x400mm | 1 set |
9 | computer | Mainstream brands | 1 unit |
10 | technical data | Instruction manual, packing list, certificate of conformity | 1 set |
11 | ring stiffness test software | English version | 1 set |
