Description
Highlights at a glance
- Wide applicable materials: It tests melt flow performance of PE, PP, ABS, nylon and other thermoplastics for factories and research institutes.
- Full standard compliance: Strictly follows GB/T 3682 and ISO 1133 international standards for standardized melt flow rate measurement.
- Ultra-precise core extrusion components: Standard die and barrel with tiny dimensional tolerances guarantee accurate test data.
- Eight adjustable standard load grades: Complete matched weights with error within 0.5% to meet diverse polymer test requirements.
- Broad & high-precision temperature control: 30℃–450℃ heating range with temperature accuracy up to ±0.2℃.
- Stable working performance: Adapts to common lab temperature and humidity conditions, resistant to corrosion, airflow, vibration and magnetic interference.
Product Description

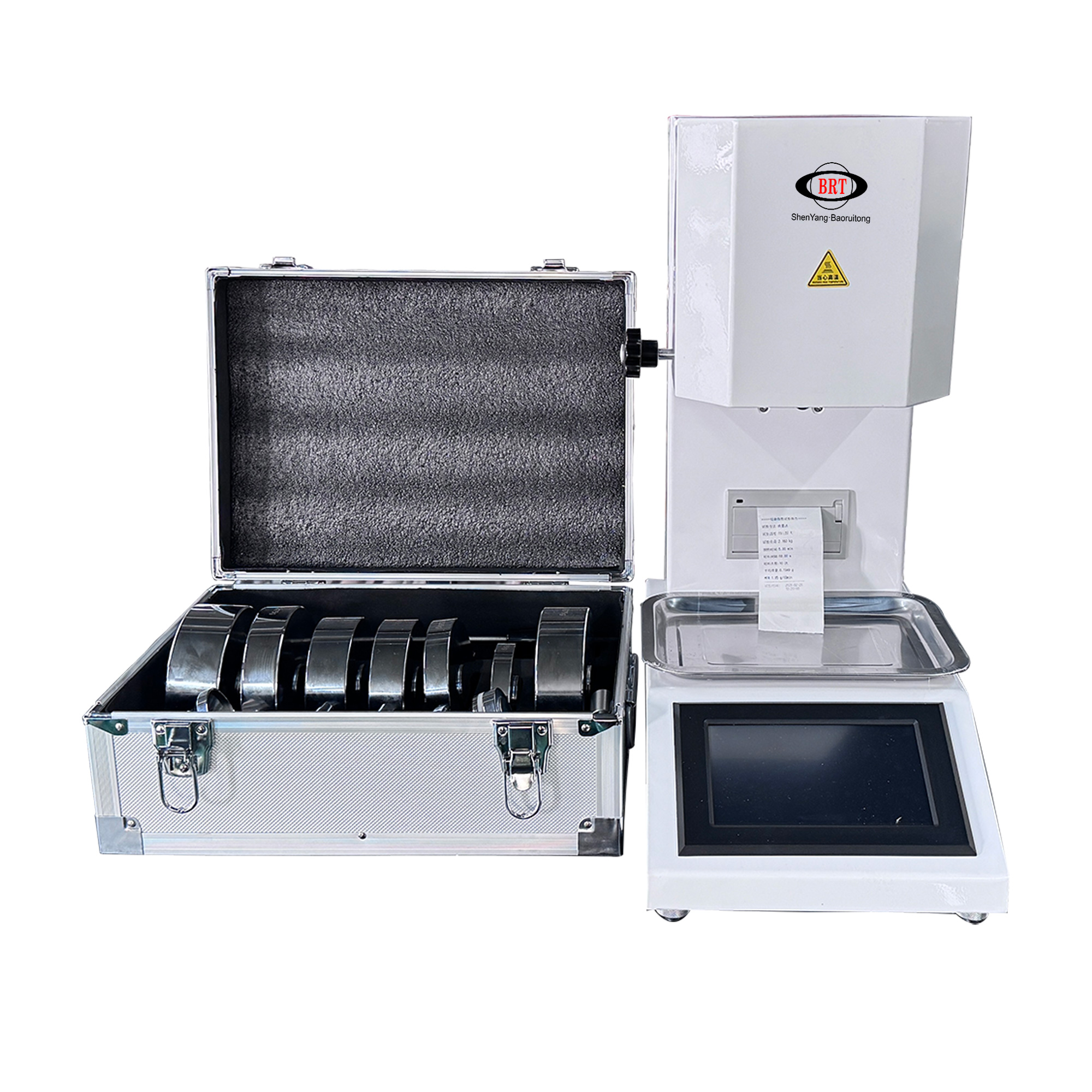

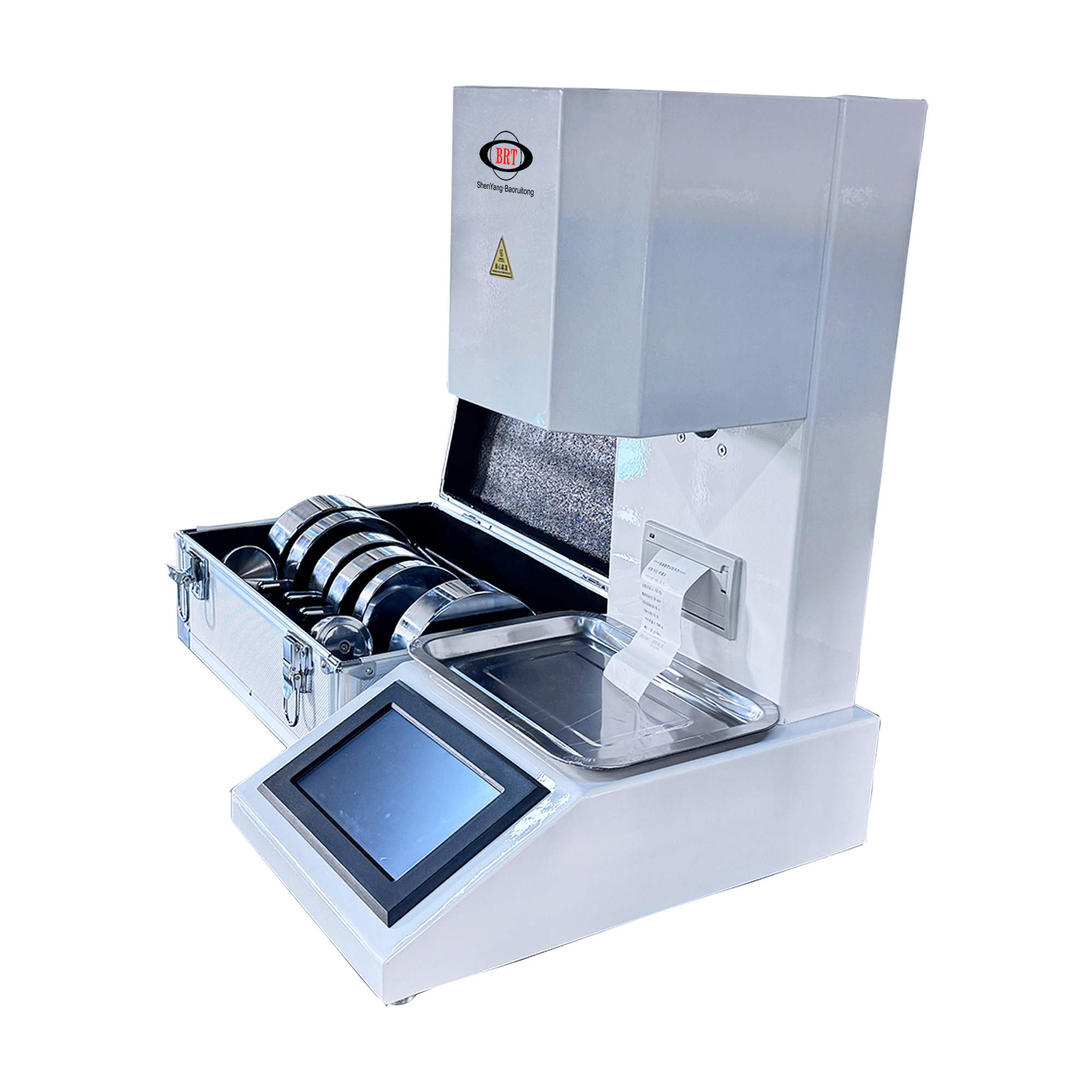

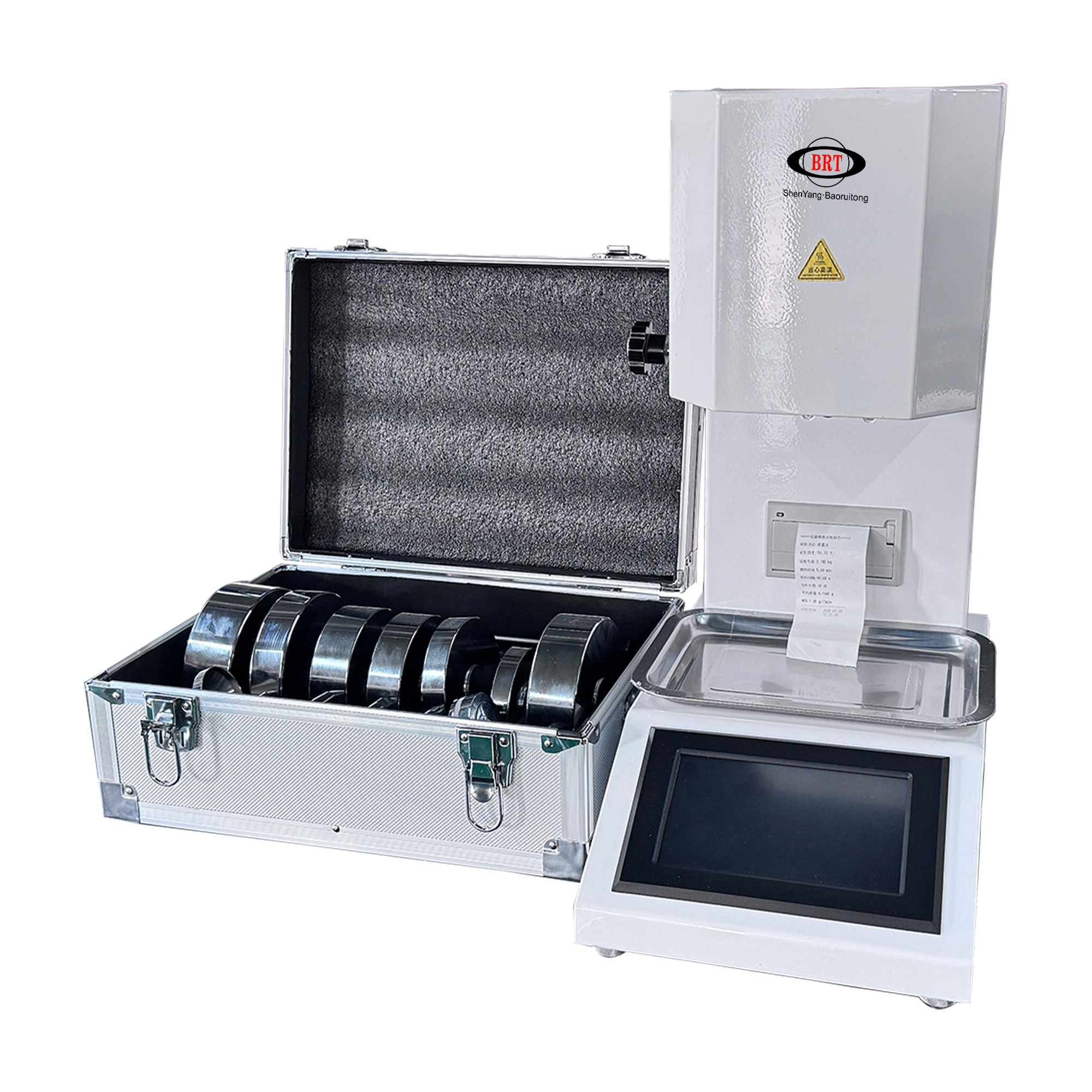

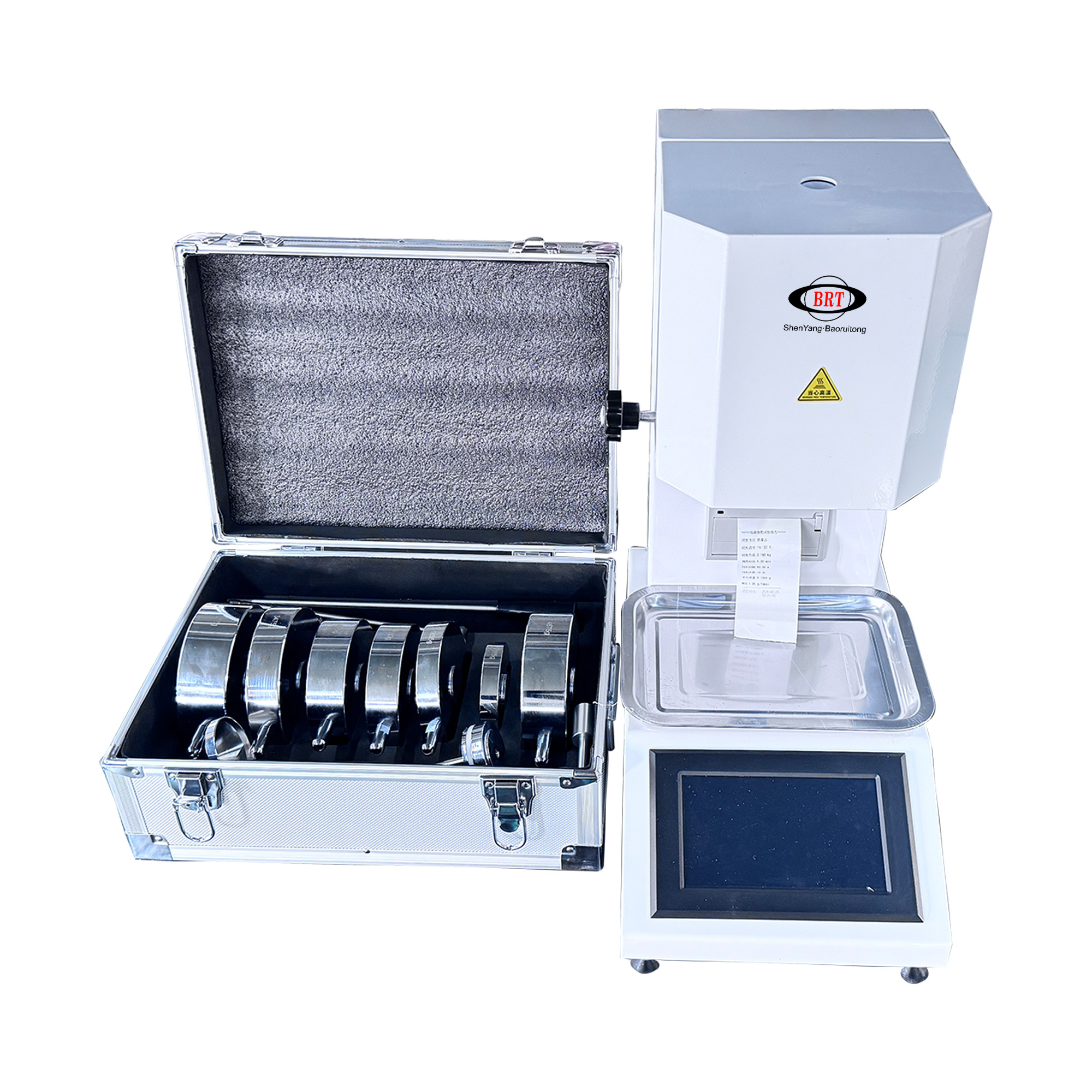

The BNR-400B Melt Flow Rate Tester is an instrument designed to determine the flow properties of thermoplastic polymers at high temperatures in accordance with the test methods specified in GB/T 3682 and ISO 1133. It is used for measuring the melt flow rate of polymers such as polyethylene, polypropylene, polyoxymethylene, ABS resin, polycarbonate, nylon, and fluoroplastics at high temperatures. This tester is suitable for production and research work in factories, enterprises, and scientific research institutions
Main Technical Parameters
Extrusion Discharge Part
Discharge orifice diameter: Φ2.095±0.005 mm
Discharge orifice length: 8.000±0.025 mm
Charging barrel diameter: Φ9.550±0.025 mm
Charging barrel length: 152±0.1 mm
Piston rod head diameter: 9.475±0.015 mm
Piston rod head length: 6.350±0.100 mm
Test Weights (Relative error ≤ 0.5%)
Weight No. | Weight | Weight No. | Weight |
No. 1 (Assembly) | 0.325 kg | No. 5 | 4.675 kg |
No. 2 | 0.875 kg | No. 6 | 5.000 kg |
No. 3 | 1.835 kg | No. 7 | 2.500 kg |
No. 4 | 3.475 kg | No. 8 | 2.915 kg |
Standard test load (eight levels)
Level 1: 0.325 kg = (Piston rod + Weight tray + Heat insulation sleeve + No. 1 weight body)
Level 2: 1.200 kg = (0.325 kg + No. 2 weight of 0.875 kg)
Level 3: 2.160 kg = (0.325 kg + No. 3 weight of 1.835 kg)
Level 4: 3.800 kg = (0.325 kg + No. 4 weight of 3.475 kg)
Level 5: 5.000 kg = (0.325 kg + No. 5 weight of 4.675 kg)
Level 6: 10.000 kg = (0.325 kg + No. 5 weight of 4.675 kg + No. 6 weight of 5.000 kg)
Level 7: 12.500 kg = (0.325 kg + No. 5 weight of 4.675 kg + No. 6 weight of 5.000 kg + No. 7 weight of 2.500 kg)
Level 8: 21.600 kg = (0.325 kg + No. 2 weight of 0.875 kg + No. 3 weight of 1.835 kg + No. 4 weight of 3.475 kg + No. 5 weight of 4.675 kg + No. 6 weight of 5.000 kg + No. 7 weight of 2.500 kg + No. 8 weight of 2.915 kg)
4) Constant Temperature Range: 30℃ – 450℃
5) Constant Temperature Accuracy: ±0.2℃
6) Power Supply Voltage: 220V±10% 50Hz
7) Working Environment
Ambient temperature: 5℃ – 50℃
Ambient relative humidity: 30% – 80%
No corrosive media, no strong air convection in the surrounding area
No vibration or strong magnetic field interference in the surrounding area
8) Instrument Overall Dimensions: 250×360×514 (Length×Width×Height, unit:
