Description
Highlights at a glance
- Multi-Standard Global Compliance for Flame Retardancy Testing Fully aligned with ISO 4589 series, GB/T 2406 series and GB 8624-2025 standards, meeting certification testing requirements for plastic, construction and cable materials fire performance classification.
- High-Accuracy Digital Oxygen Concentration Detection 0–100% full oxygen measuring range with ±0.1% precision, digital direct readout, supporting zero point and full-scale calibration; sensor response time less than 5 seconds for real-time concentration monitoring.
- Precision Dual Gas Circuit Control System Independent nitrogen and oxygen regulating knobs, Class 2.5 precision pressure gauges (0–0.4 MPa range) and flowmeter (0–15 L/min adjustable). Stable working pressure 0.05–0.15 MPa ensures uniform gas mixing inside the combustion column.
- Standard Specified Transparent Combustion Column Standard combustion tube with 75mm inner diameter and 480mm height, maintaining standard internal airflow velocity at 40±2 mm/s, eliminating data deviation caused by inconsistent airflow.
- Low Power & Stable Laboratory Operation Low power consumption of only 50W, works steadily under 23℃±2℃ ambient temperature and humidity ≤70%. Simple mechanical adjustment structure with low failure rate for long-term daily testing.
- Strong Compatibility with Diverse Test Materials Covers rigid plastics, flexible films, rubber, foam, insulation, cables, textiles and wood, ideal for incoming material inspection, finished product flame retardant testing and new material R&D evaluation.
1. Product Overview
2. Applicable International & National Standards
- ISO 4589.1-2017 Plastics – Determination of Burning Behaviour by Oxygen Index – Part 1: General Requirements
- ISO 4589.2-2017 Plastics – Determination of Burning Behaviour by Oxygen Index – Part 2: Ambient-temperature Test
- GB/T 2406.1-2008 Plastics – Determination of Burning Behaviour by Oxygen Index – Part 1: Guidance
- GB/T 2406.2-2009 Plastics – Determination of Burning Behaviour by Oxygen Index – Part 2: Ambient-temperature Test
- GB 8624-2025 Classification for Burning Behaviour of Building Materials and Products
3. Wide Application Scope
- Homogeneous solids, laminated materials, foams with density over 100 kg/m³
- Plastics, rubber, thermal insulation, fiberglass, wires & cables, waterproof rolls
- Textiles, fireproof fabrics, fiber cords, polyurethane foam, asphalt, plastic films, woodNote: Low-density foams (<100 kg/m³) require supplementary equipment as specified in GB/T 8332 for complete flame spread evaluation.
4. Complete Technical Specifications
Detection & Gas Control Parameters
- Oxygen concentration range: 0–100%
- Measurement accuracy: ±0.1%
- Display: Digital readout, support zero & full-scale calibration
- Sensor response time: <5 s
- Flow adjustment range: 0–15 L/min, Class 2.5 flowmeter precision
- Working pressure: 0.05–0.15 MPa
- Pressure gauge range: 0–0.4 MPa, Class 2.5 accuracy
- Combustion column: Inner diameter 75 mm, height 480 mm (excluding neck)
- Internal gas flow velocity: 40 ±2 mm/s
Power & Operating Environment
- Power supply: AC 220 V ±5%, 50 Hz
- Rated power: 50 W
- Ambient temperature: 23℃ ±2℃
- Relative humidity: ≤70%
Gas Supply Requirements
- Test gas: Oxygen & nitrogen, purity ≥98%
- Gas inlet pressure: 0.1–0.3 MPa
- Auxiliary accessories (gas cylinder, pressure reducer, dryer): Provided by customer
6. Working Principle
Mix oxygen and nitrogen in the gas mixing chamber by adjusting two independent flow valves to form a uniform mixed gas with stable concentration. The digital sensor real-timely detects and displays oxygen percentage.Mount the vertical standard sample inside the transparent combustion column, ignite the top of the specimen. Gradually adjust oxygen concentration until the sample can just sustain continuous combustion. The recorded oxygen value is the oxygen index, which reflects the material’s inherent flame retardant property.7. Typical Application Scenarios
- Plastic, rubber, foam and composite material manufacturing factories
- Wire, cable, waterproof and thermal insulation material production lines
- Third-party fire safety testing laboratories & certification bodies
- University material science, fire protection engineering laboratories
- Construction material quality supervision and inspection institutions
- R&D labs for new flame retardant raw materials
8. Standard Equipment Configuration

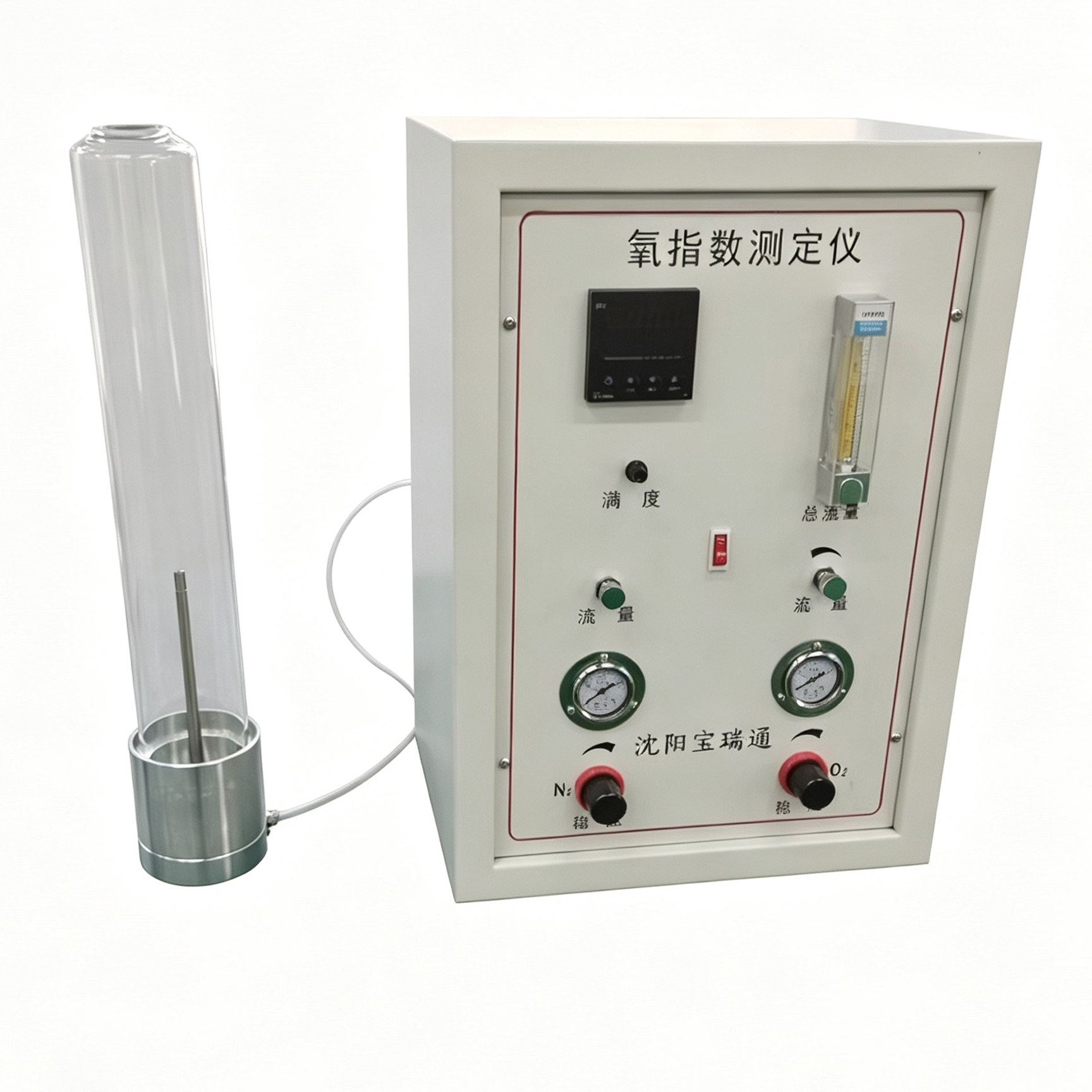

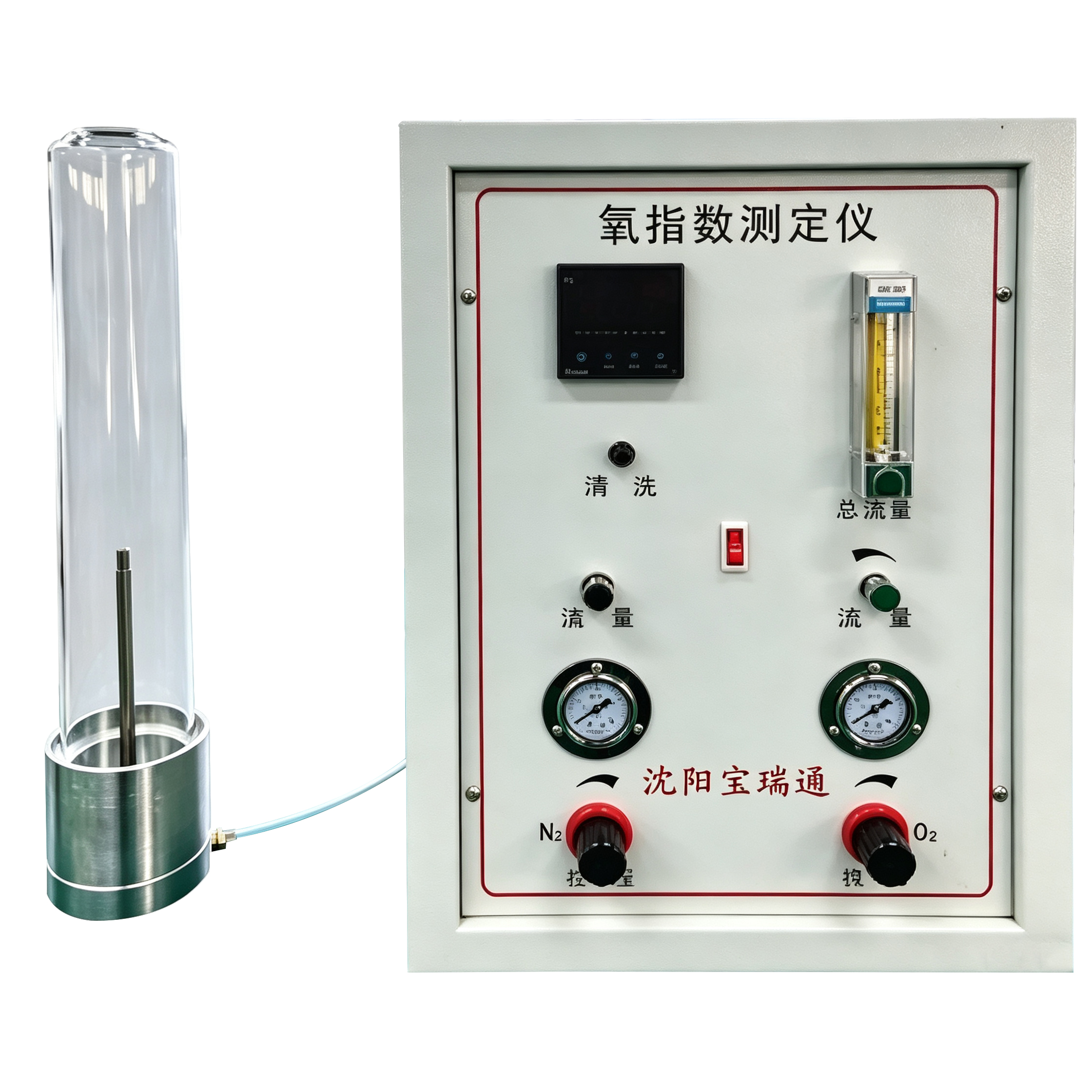

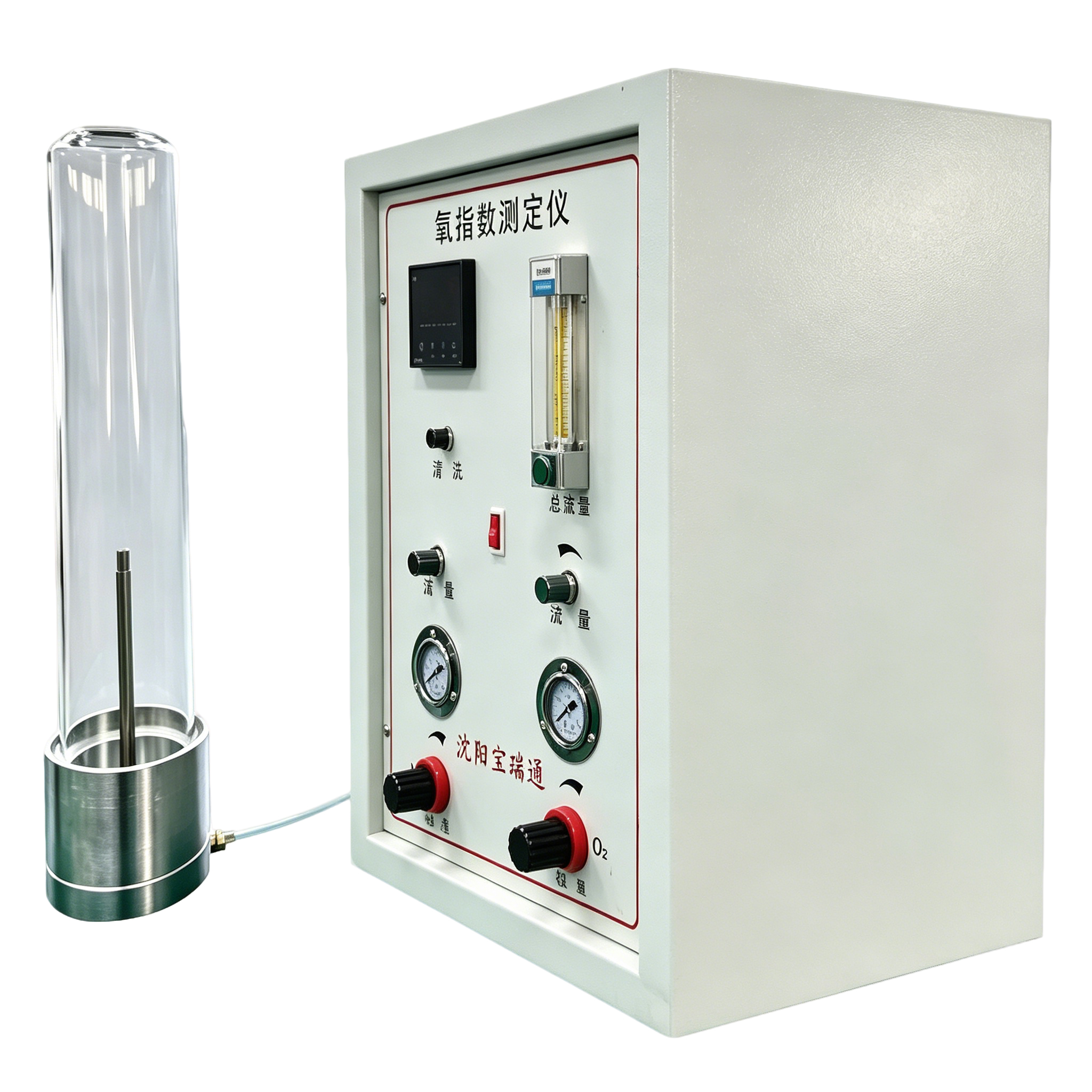

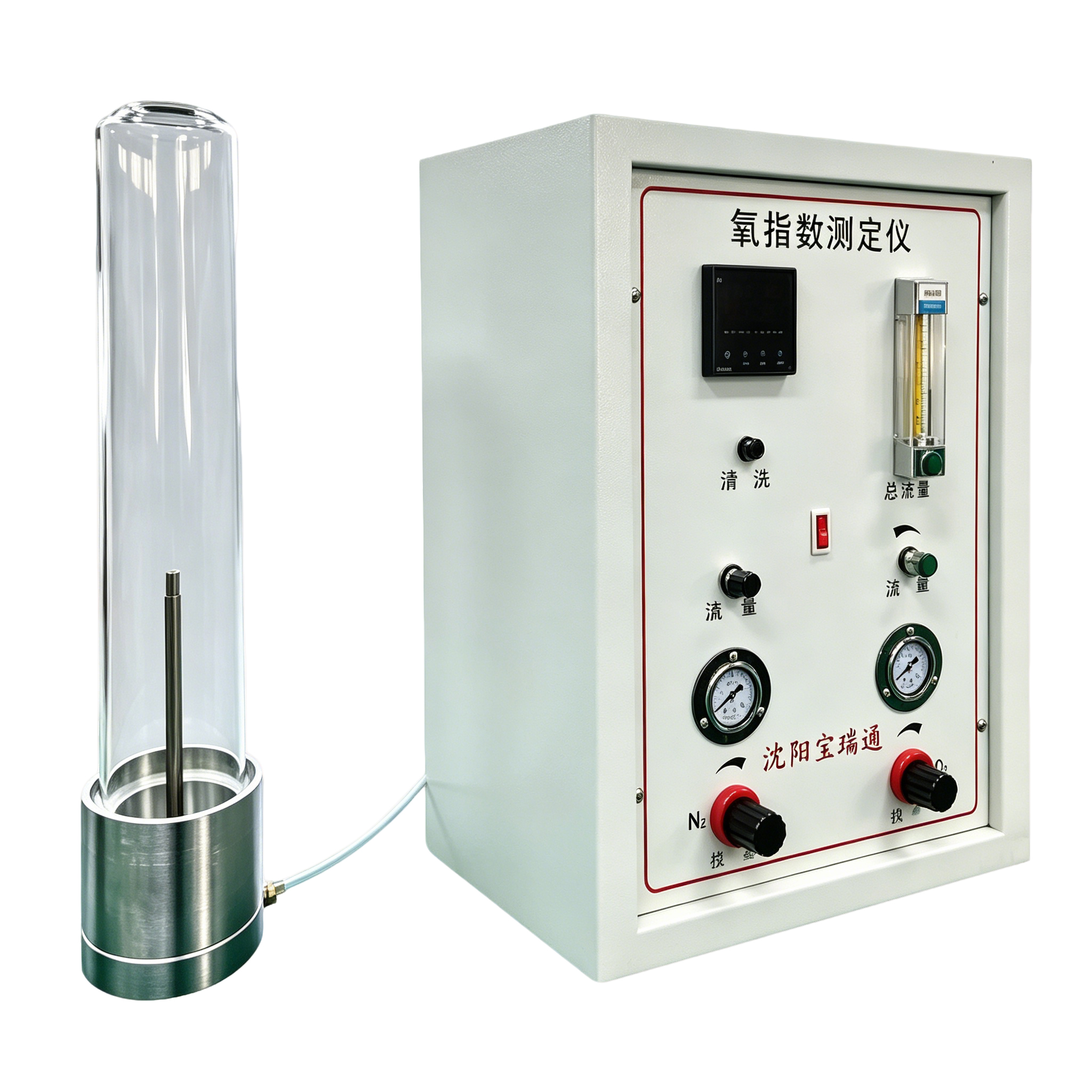

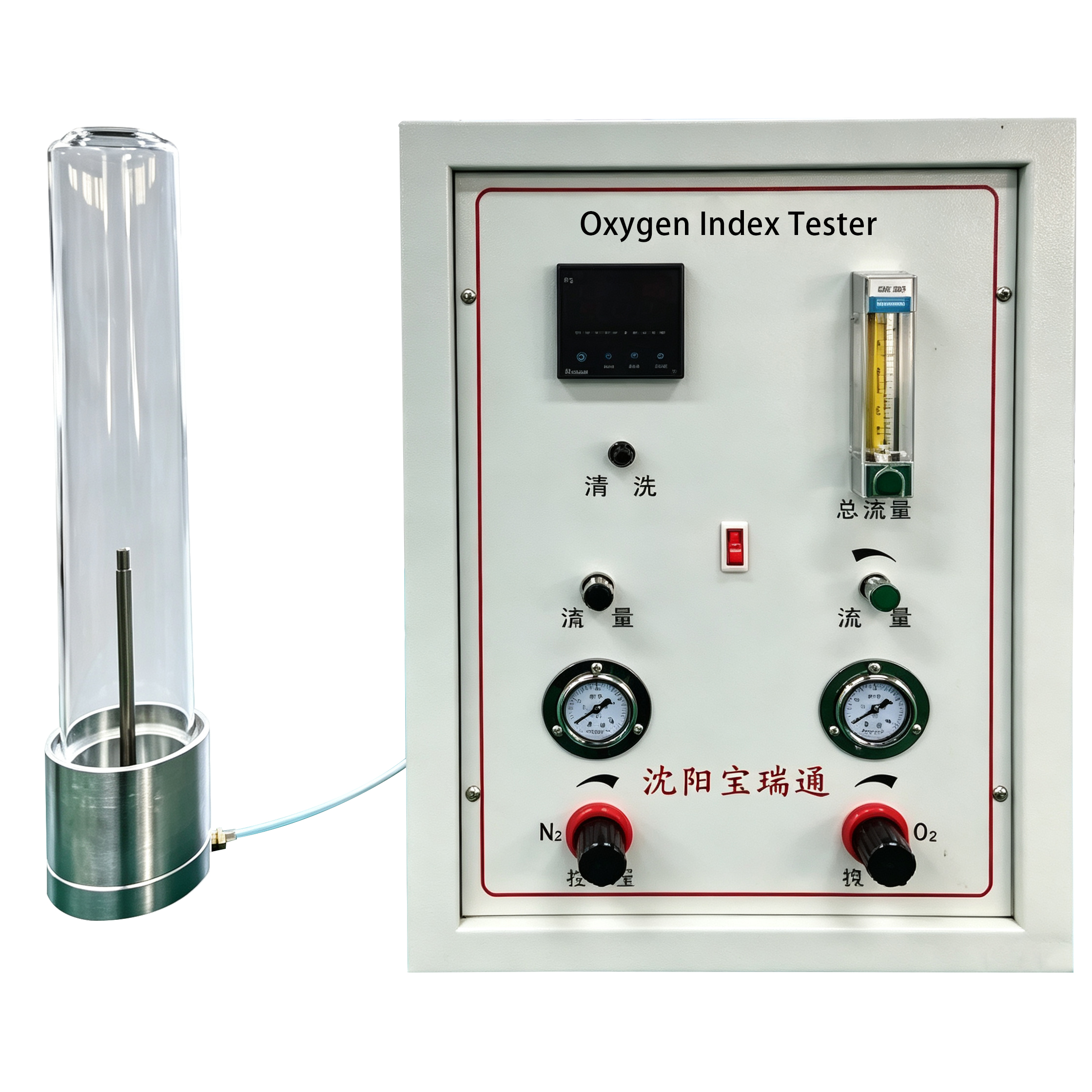

- JYZS-10 main control cabinet with digital concentration display panel
- Standard transparent acrylic combustion column
- Dual precision pressure gauges for N₂ and O₂
- Independent nitrogen & oxygen flow adjustment knobs
- Total flow rotameter
- Complete gas connecting pipelines
- Operation manual and calibration guide
