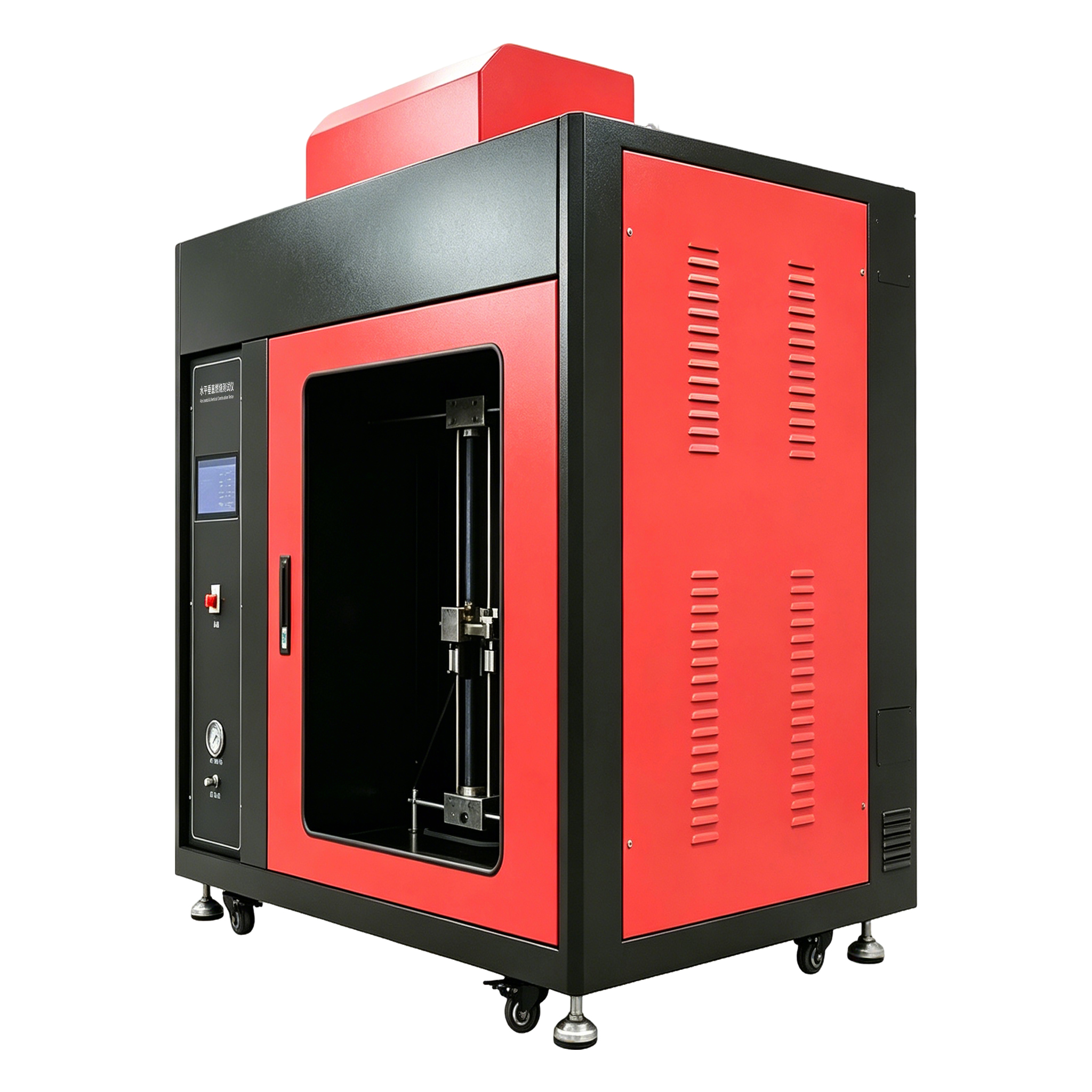

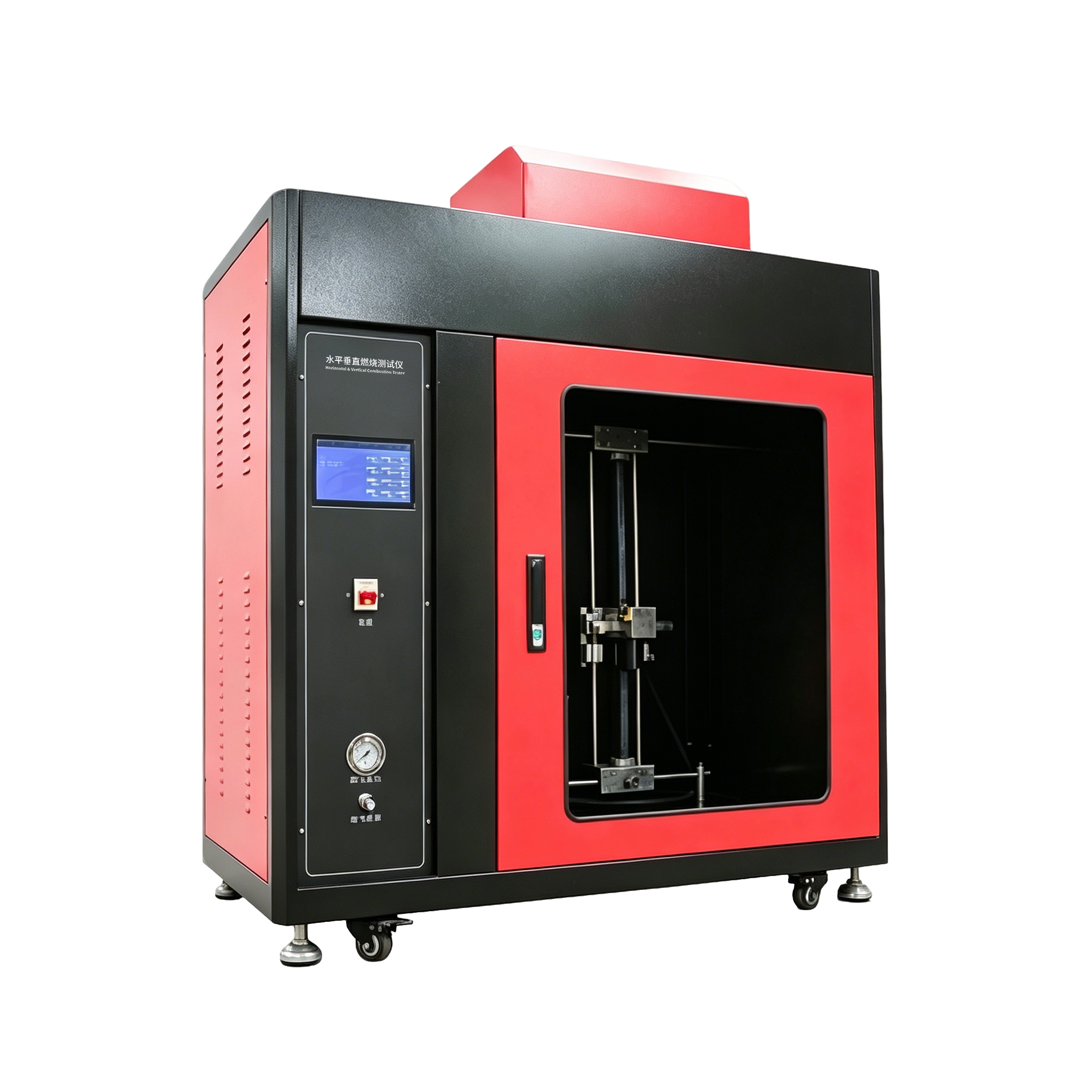

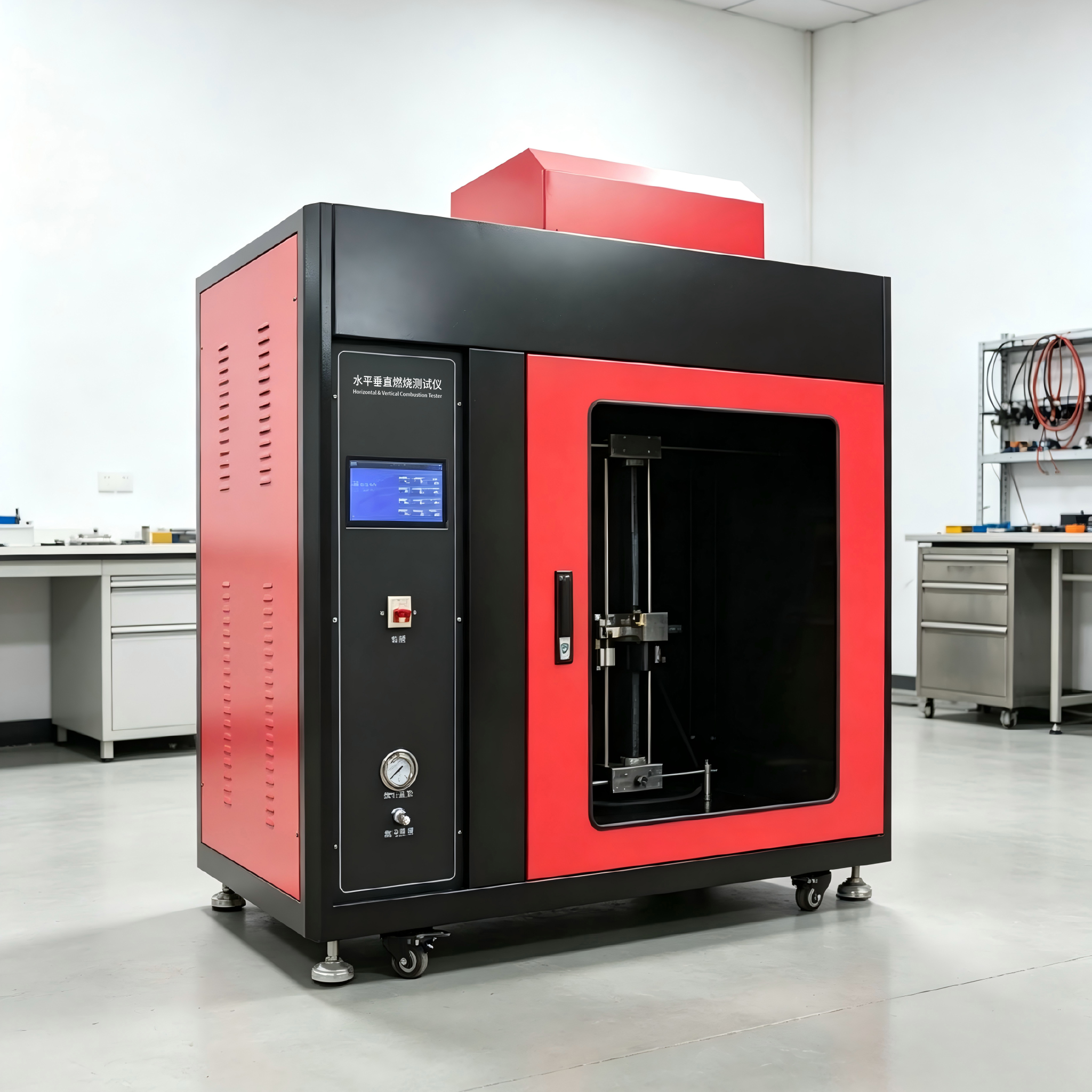

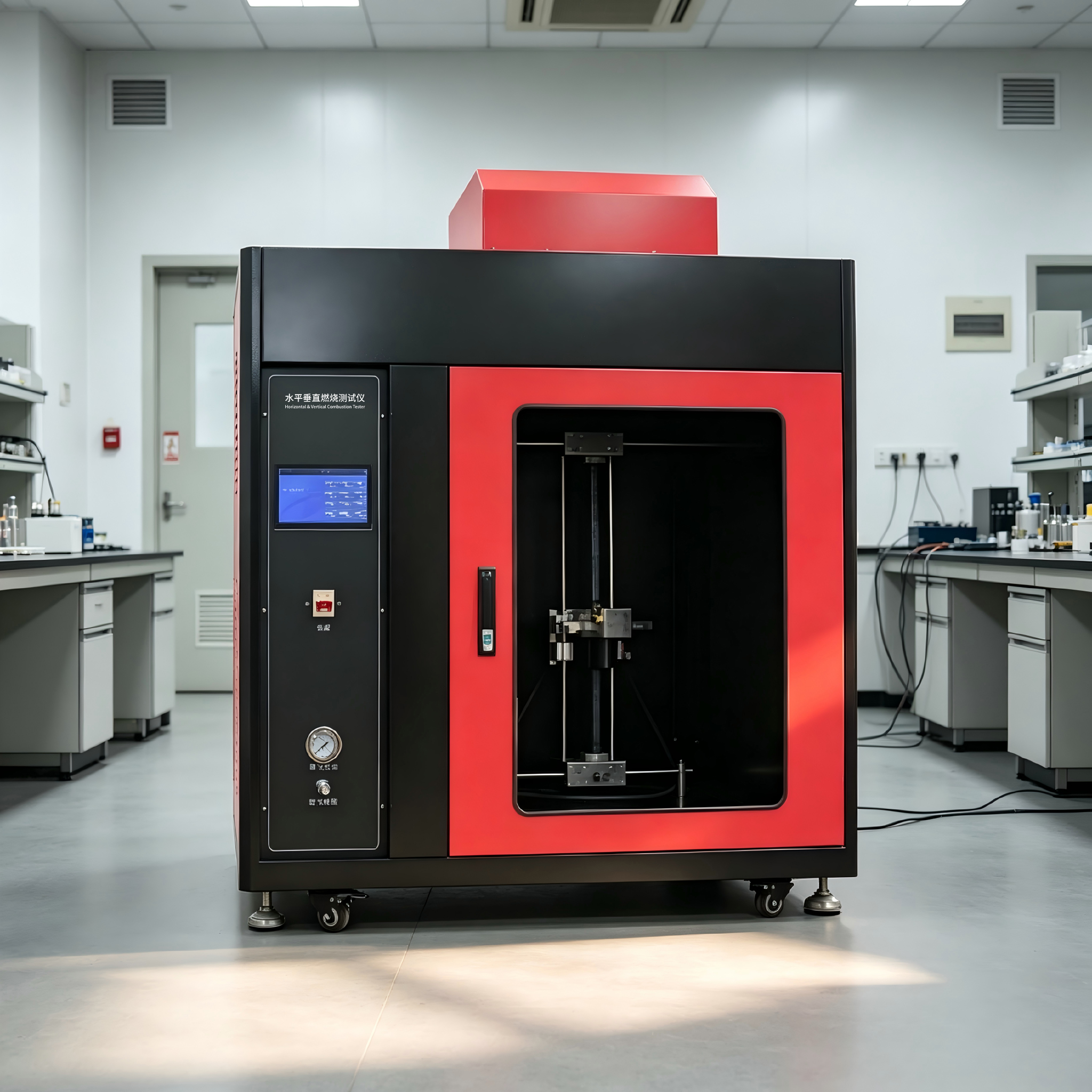

SPCZ-05 Horizontal & Vertical Combustion Tester

Product Overview

Introduction

The SPCZ-05 Horizontal & Vertical Combustion Tester is a professional laboratory instrument engineered to evaluate the burning performance of plastics and non-metallic materials. It utilizes a standardized 50W flame source to carry out horizontal or vertical combustion tests on material specimens. This device delivers precise, repeatable test data to analyze flame retardancy, combustion spread and self-extinguishing performance of raw materials, ideal for manufacturing QC labs, third-party testing institutions and material R&D centers.

Scope of Application

This flammability testing machine is designed for fire safety assessment of plastic products and all non-metallic raw materials. It performs standardized horizontal and vertical burning laboratory tests under a stable 50W flame condition. It is widely adopted by electronics factories, rubber manufacturers, military component inspection labs and automotive material suppliers for material flame resistance verification.

Compliance Standards

Domestic Industry Standards

GB/T 2408-2021 Plastics — Determination of burning behavior — Horizontal and vertical methods
GB/T 10707-2008 Rubber — Determination of burning behavior, Method B (equivalent to GB/T 13488 Vertical Burning Test for Rubber)
GB/T 5169.16-2008
GJB 360B-2009 Test Methods for Electronic & Electrical Components, Method 111

International Authoritative Standards

ANSI/UL 94
IEC 60950-1

Core Product Features

Programmable Touchscreen + PLC Integrated Control System

Built-in programmable touch panel paired with PLC control, integrating equipment control, real-time detection, automatic data calculation and visual result display for all-in-one intelligent operation.
Highly Automated Full Test Cycle

Fully automatic workflow: auto timing, auto ignition, automatic test time recording and instant result display. Once flame exposure finishes, the Bunsen burner retracts automatically, with optional automatic gas shutoff function to enhance operational safety.
Switchable Auto Ignition Function

Operators can enable or disable automatic ignition upon equipment startup to match different standard test requirements flexibly.
Touchscreen Adjustable Specimen Holder & One-Touch Operation

The sample fixture supports forward, backward, upward and downward movement fully controlled via touchscreen. All core operations including start/stop, gas switch, timing, ignition, data saving, internal lighting and exhaust ventilation are centralized on the touch panel for effortless fingertip control.
Precision Timing & Built-In Data Storage

Dedicated timing module works with PLC to automatically record and store all combustion time data. No manual stopwatch operation required, effectively eliminating human reading errors.
Automatic Test Result Generation

The system continuously records all test duration data during testing. After test completion, standardized test results are auto-calculated and generated, cutting down manual data sorting workload.

Ideal For These Industries & Buyers

Plastic & rubber raw material manufacturers
Consumer electronics & electrical component factories
Independent fire safety third-party testing laboratories
Military electronic component inspection institutes
Automotive, home appliance, wire & cable manufacturers
University & enterprise material research laboratories

Why Choose Our SPCZ-05 Combustion Tester?

✅ Full compliance with UL94, IEC, national and military test standards; test data globally recognized

✅ Intuitive touchscreen intelligent operation, minimal training required for operators

✅ High automation reduces manual steps and improves test consistency & repeatability

✅ Stable gas pressure and flow control maintains consistent 50W flame output for reliable testing

✅ Safe mechanical design with optional auto gas cut-off to prevent potential fire hazards

✅ Internal data storage supports batch test record archiving and full data traceability
