GTL-50 Fire-Retardant Coating Thermal Insulation Efficiency & Fire Resistance Rating Test Furnace
1. Product Overview

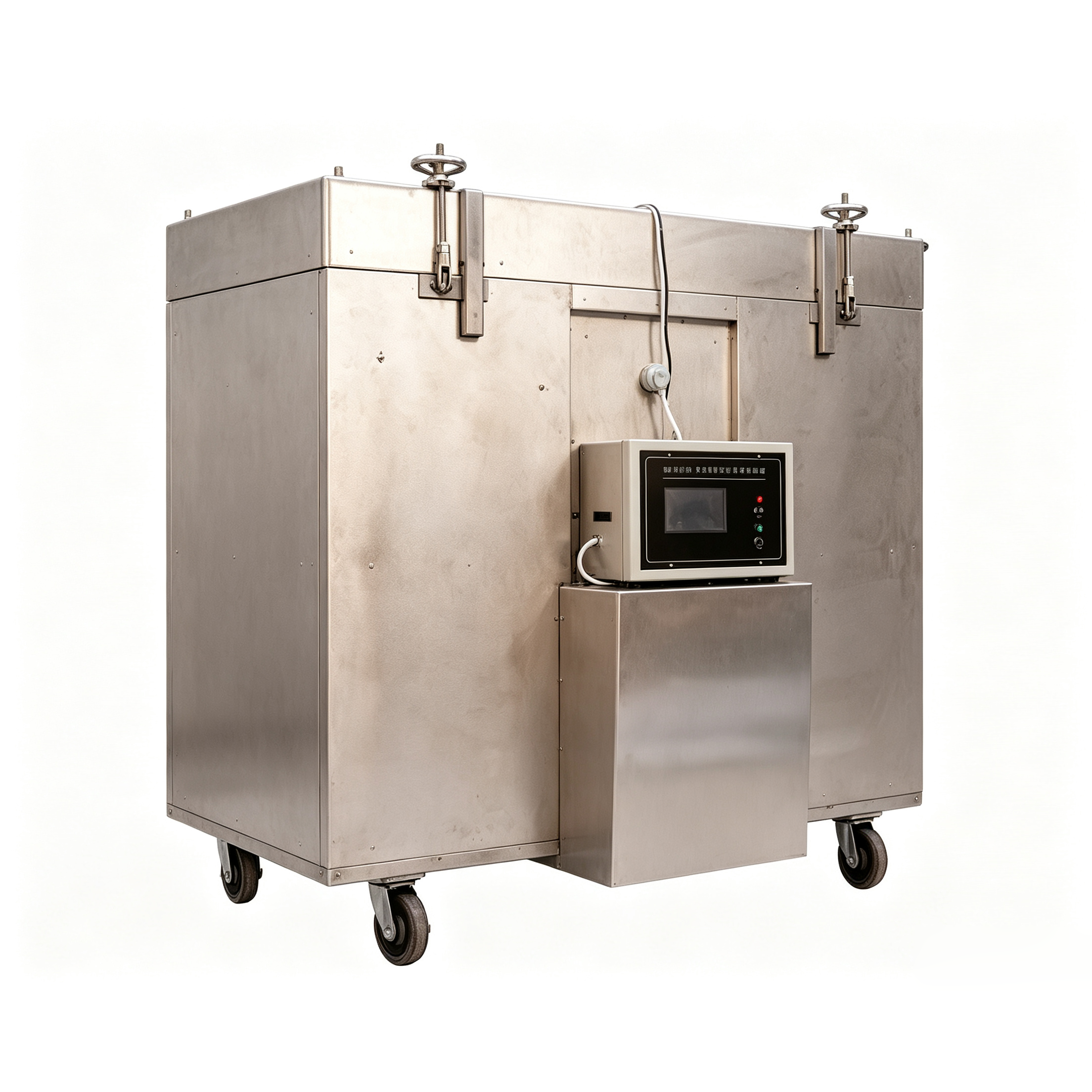

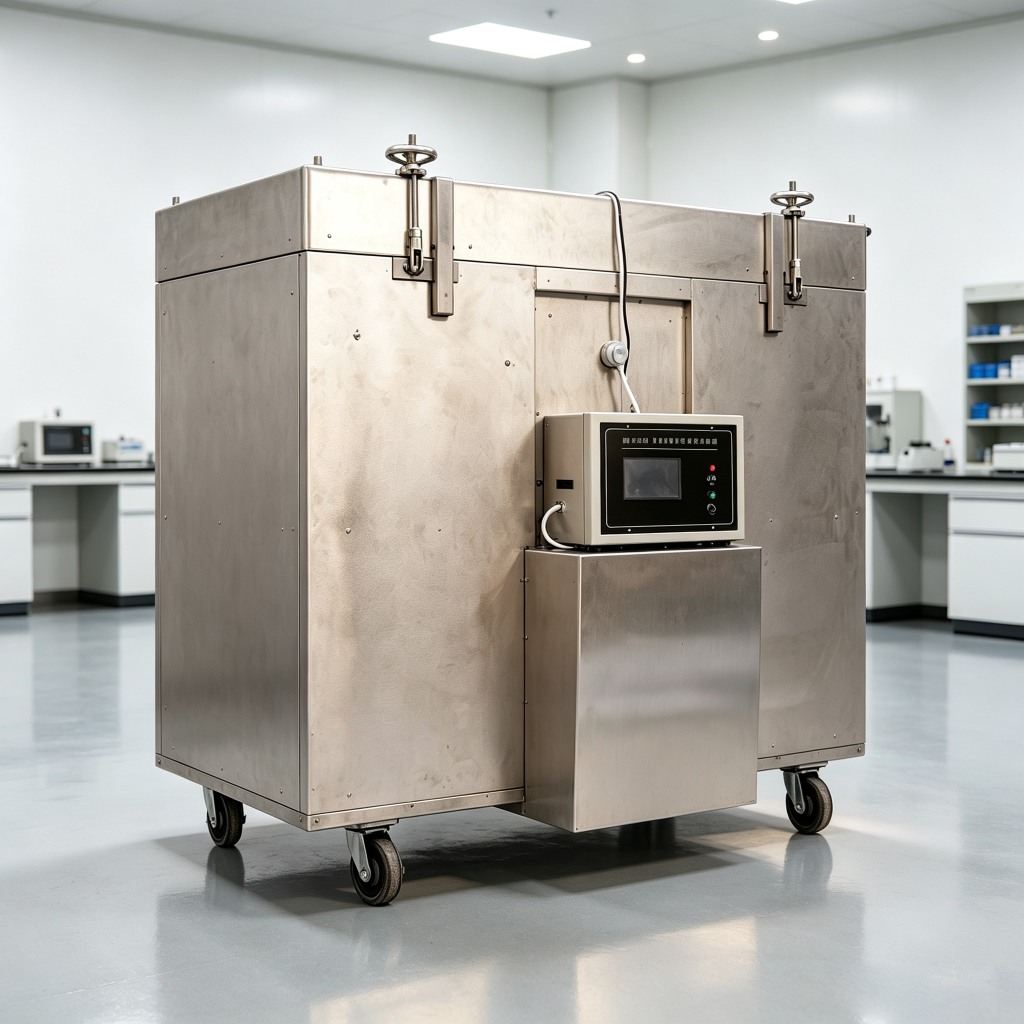

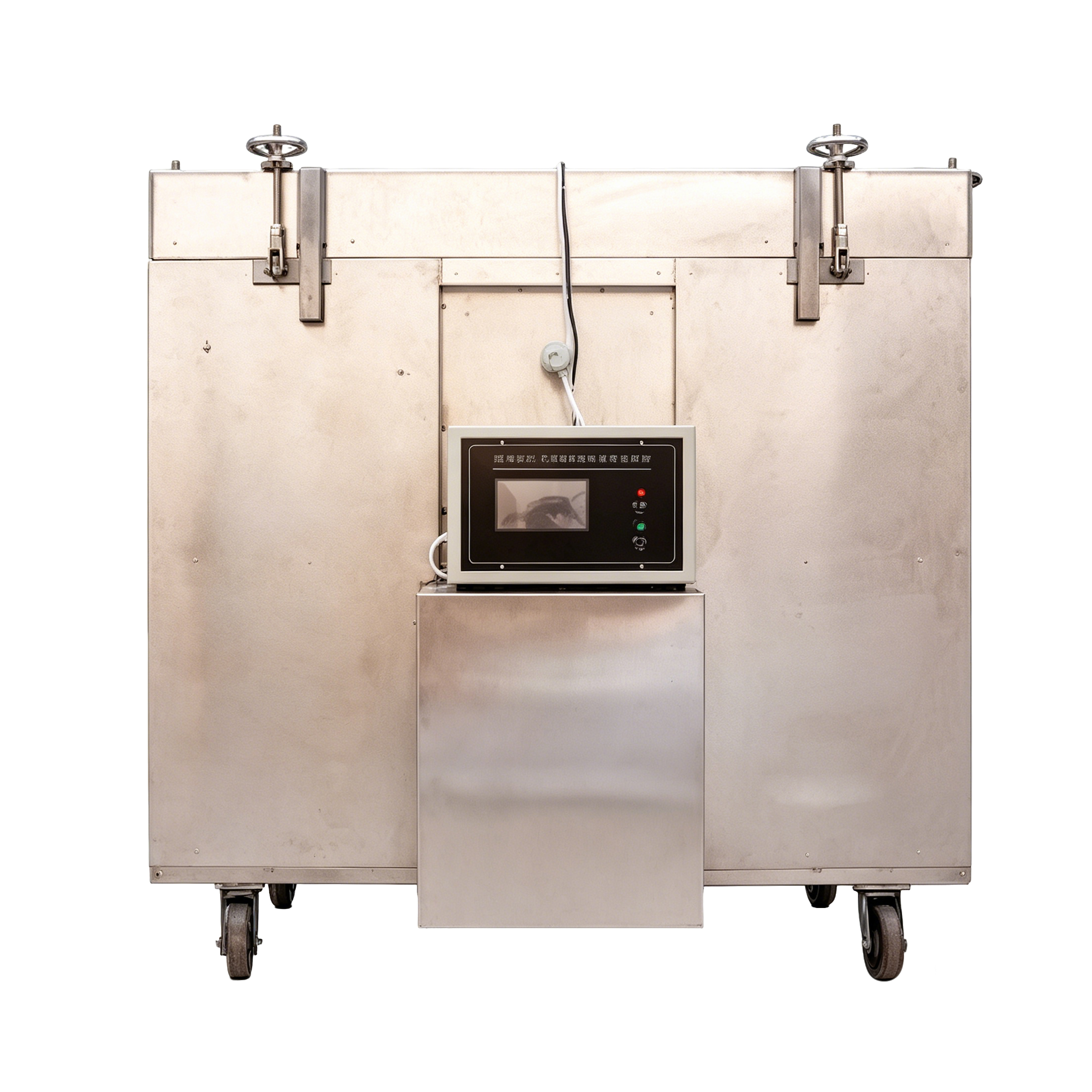

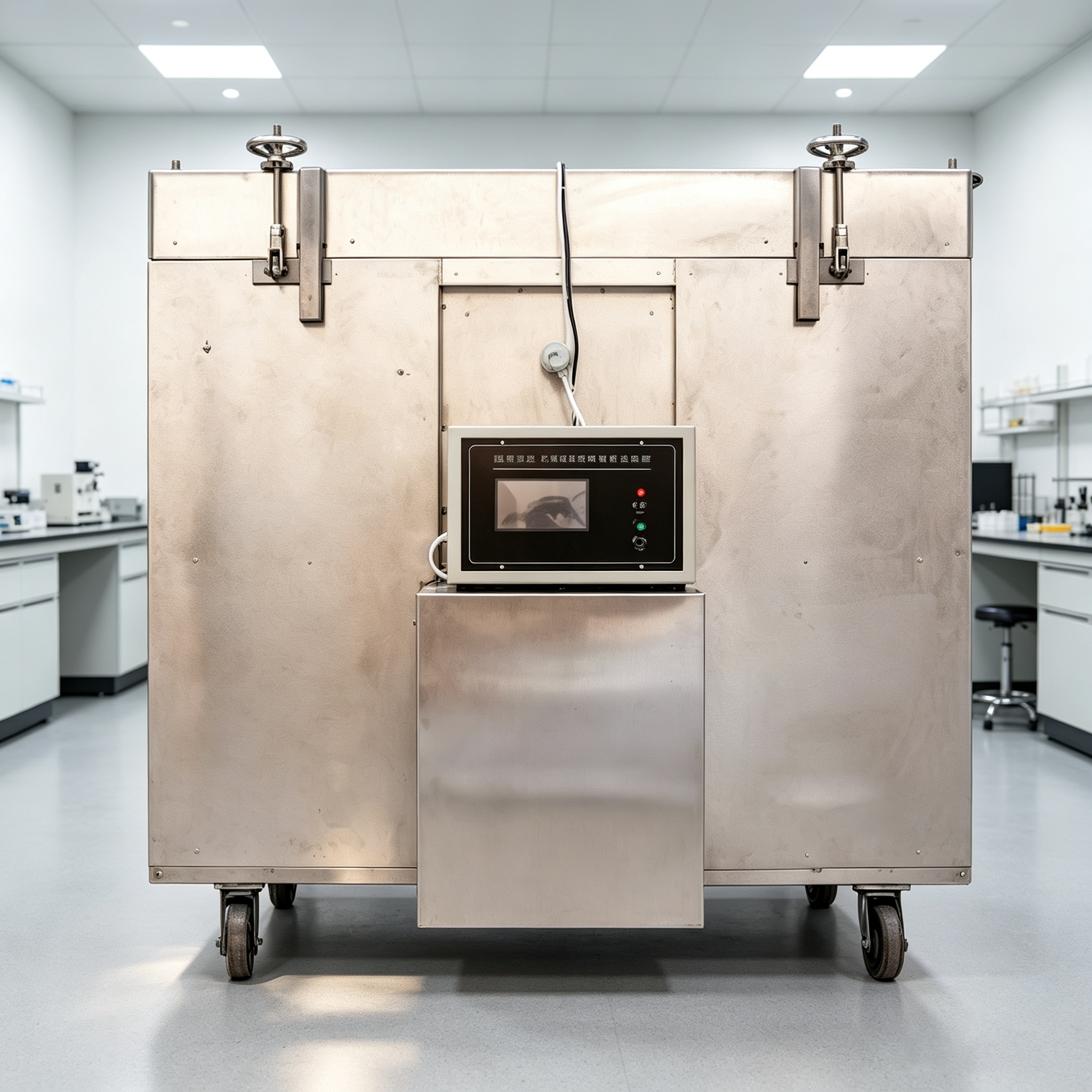

The GTL-50 Test Furnace is a dedicated laboratory testing furnace developed strictly in accordance with GB14907-2018 Fire-retardant coating for steel structures and GB/T9978-2008 Clauses 4 & 5 (5.1, 5.2). It is specially designed to detect the fire resistance performance, thermal insulation efficiency and fire resistance grade of fireproof coatings for steel construction materials.
This furnace adopts intuitive touch screen independent control, no extra computer or software installation required for daily operation. The whole testing process is fully automated with simple operation and easy maintenance. All temperature control error indicators are superior to national standard requirements, delivering stable, high-precision test data for fire coating manufacturers, third-party testing labs and construction engineering institutes.
2. Applicable Standard
- GB14907-2018 Fire-retardant coating for steel structures
3. Core Technical Parameters
- Power Supply & Power: AC 220V±10%, 50Hz; Total power consumption 3KW
- Furnace Pressure: Measuring range 0–100Pa, constant pressure control 20±3Pa
- Air Flow: 0–50m³/min, measuring accuracy ≤±0.5m³/min
- Fuel Type: 0# / -10# Diesel
- Standard Programmed Heating Curves
- 60 min: Ambient temperature up to 925℃
- 120 min: Ambient temperature up to 1050℃
- 180 min: Ambient temperature up to 1115℃
- 240 min: Ambient temperature up to 1150℃
- 300 min: Ambient temperature up to 1180℃
- 360 min: Ambient temperature up to 1210℃
- Thermocouple Configuration & Precision
- 4 high-precision furnace temperature thermocouples
- 2 thermocouples for unexposed surface temperature monitoring
- Unexposed surface temperature control tolerance: ±4℃
- Support average temperature control or single-point independent temperature control
- Temperature Sensor: K-type nickel-chromium/nickel-silicon sheathed thermocouple, Class II accuracy
- Heating Mode: Full-automatic spray burner heating
- Timing System: Timing range 0–360 min, timing accuracy <±2s
- Specimen Size: 500×500×6 mm
- Storage Capacity: Store over 100 groups of test data
- Post-test Function: Automatic exhaust & cooling after test completion
- Overall Equipment Dimension: 1.6m × 1.6m × 1.6m
4. Outstanding Product Features
- Touch Screen & Computer Dual Control with Wireless LinkageSupports independent touch screen operation and wireless computer control. One PC can synchronously control multiple furnaces for batch testing; one furnace can also receive commands from multiple computers for multi-user monitoring.
- Automatic Fault Thermocouple EliminationBuilt-in intelligent diagnosis function to automatically identify and shield abnormal thermocouple signals without manual troubleshooting.
- Full-Automatic Closed-Loop Test WorkflowThe whole heating, temperature holding and testing cycle runs automatically without manual intervention.
- Real-Time Automatic Curve PlottingThe system automatically generates and displays real-time temperature curve and furnace pressure curve during testing for intuitive data observation.
- Intelligent Flame Protection MechanismAuto re-ignition function when accidental flameout occurs during heating to avoid test failure. The furnace automatically stops heating once reaching the preset target temperature.
- Post-Test Automatic Cooling & ExhaustAfter the test cycle ends, the unit triggers automatic exhaust and forced heat dissipation to shorten waiting time for next test.
- Anti-Power Failure Protection ModeSpecial power-off protection program prevents furnace damage and data loss caused by sudden power cut or forced shutdown.
- Large-Capacity Data StorageAble to save more than 100 groups of complete test records for long-term data traceability and report export.
- Superior Temperature Control AccuracyAll temperature deviation indicators are better than national standard limits, ensuring reliable, repeatable fire resistance test results.
5. Suitable Customers & Application Scenarios
- Steel structure fire retardant coating manufacturers
- Construction material fire safety testing laboratories
- Construction engineering inspection institutions
- Fire protection product R&D factories
- University material & fire safety research labs
- Third-party certification testing organizations
6. Why Choose GTL-50 Fire Resistance Test Furnace
✅ Fully compliant with GB14907-2018 national standard for steel fireproof coating inspection ✅ Dual touch screen + wireless computer control, flexible for single or batch testing
✅ Full automatic operation with auto curve drawing, ignition protection and power-off backup
✅ Ultra-high temperature & pressure control precision, error smaller than standard requirements
✅ Large storage for test data, easy report sorting and archiving
✅ Automatic exhaust cooling system improves laboratory testing efficiency
✅ Stable diesel spray heating system, consistent temperature rise curve for standardized fire resistance assessment
✅ Full automatic operation with auto curve drawing, ignition protection and power-off backup
✅ Ultra-high temperature & pressure control precision, error smaller than standard requirements
✅ Large storage for test data, easy report sorting and archiving
✅ Automatic exhaust cooling system improves laboratory testing efficiency
✅ Stable diesel spray heating system, consistent temperature rise curve for standardized fire resistance assessment
