Description
Highlights at a glance
- Multi-National Standard Full Compliance Fully meets ISO 1182:2020, GB/T 5464-2026, GB 8624-2025 and EN 13238-2010 standards, ideal for non-combustibility classification test of homogeneous & heterogeneous building materials.
- Intelligent Computer Automatic Control System PC-based control with high sampling frequency, auto flame duration judgment, automatic data storage, query and export. Optimized dual-loop temperature & power control ensures power fluctuation below 1% and furnace temperature deviation less than 2°C.
- Stable & Durable All-Stainless Steel Furnace Structure Integral stainless steel furnace tube features high temperature, rust and corrosion resistance. Standard height positioning block enables fast, accurate specimen placement for consistent test conditions.
- Optimized Heating & Energy Compensation Technology Supports 0–100V adjustable heating voltage and 0–1500W furnace power. Built-in power compensation & soft-start functions auto-adjust heating power against mains voltage fluctuation, prolonging furnace core service life.
- Efficient Continuous Batch Testing Design Reaches stable 750°C constant temperature within 40–60 mins. Supports continuous testing of multiple specimen groups and auto-switch between constant-temperature & constant-power modes without manual adjustment, greatly improving lab testing efficiency.
- High-Precision Multi-Point Temperature Monitoring Equipped with 4 Class 1 K-type thermocouples to monitor furnace, specimen surface and core temperature simultaneously, temperature accuracy up to ±1.5°C, realizing precise temperature data acquisition.
Product Description

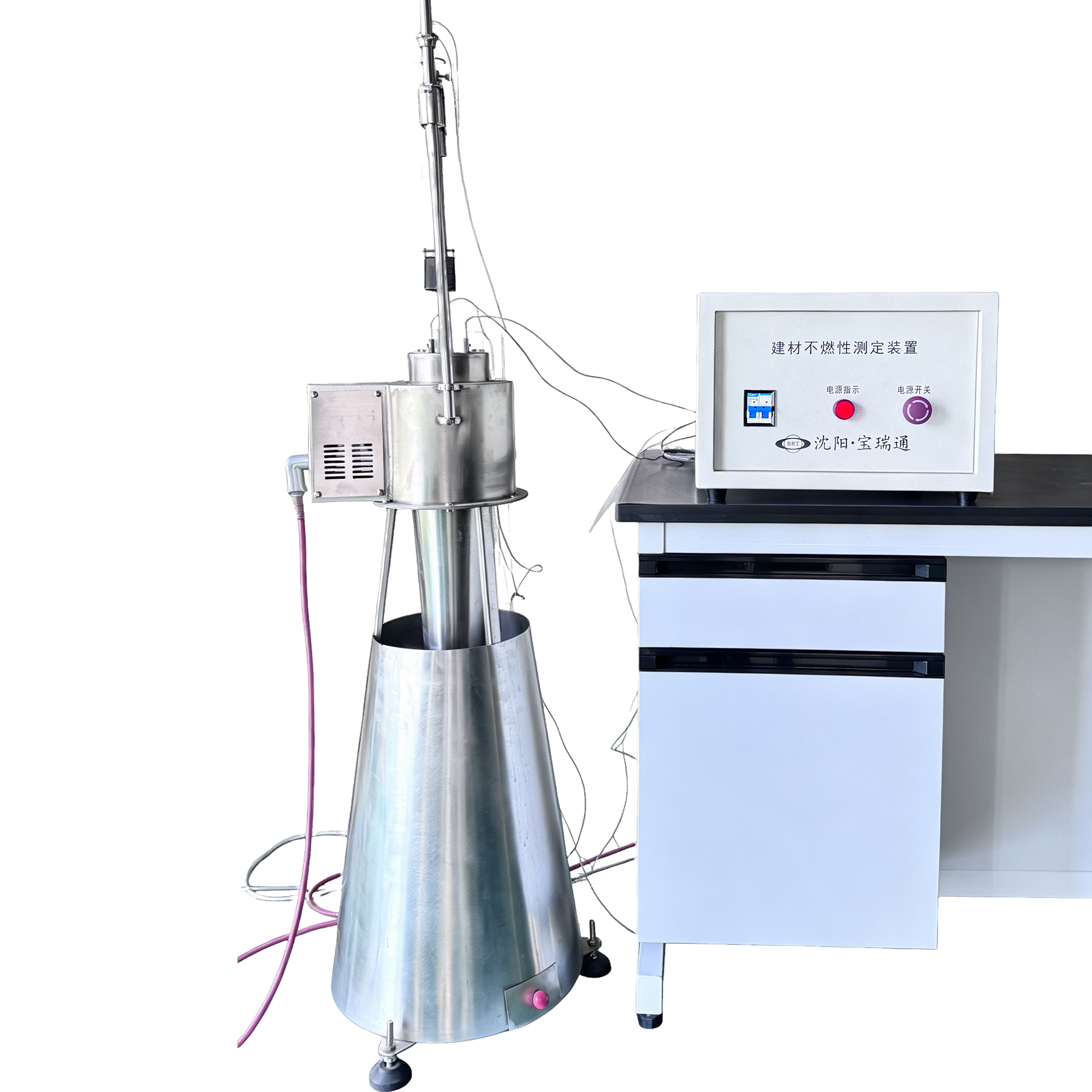

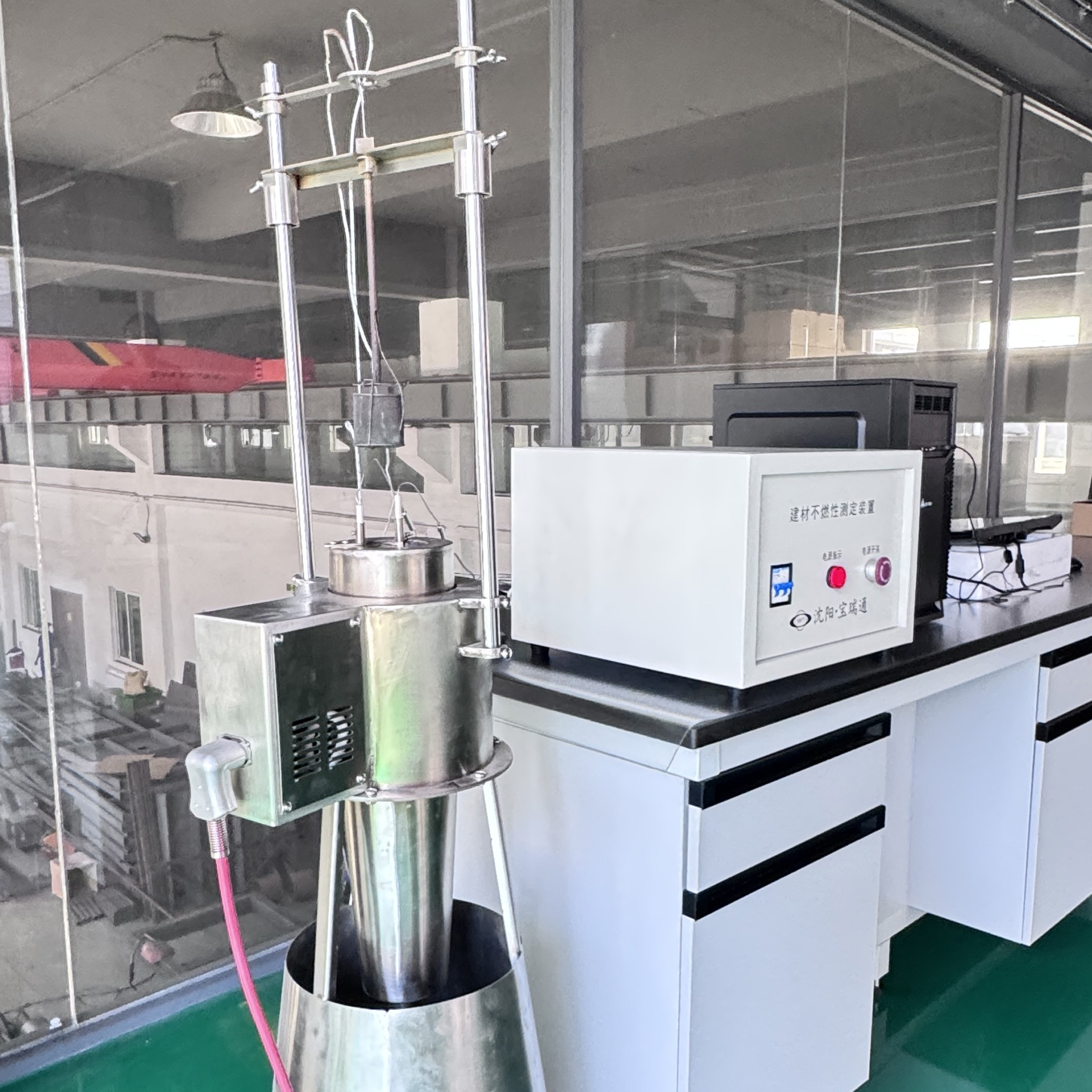

This apparatus is used to conduct non-combustibility tests, under specified conditions, on homogeneous building products and the main components of non-homogeneous building products. In conjunction with GB 8624-2025, Classification for Burning Behavior of Building Materials and Products, it evaluates the material under test to determine whether its burning performance complies with the applicable requirements and to support product quality control.
Applicable Standards
GB/T 5464-2026, Non-Combustibility Test Method for Building Materials
GB 8624-2025, Classification for Burning Behavior of Building Materials and Products
GB/T 40238-2021, Reaction-to-Fire Tests for Building Materials and Products – Selection of Substrates, Specimen Conditioning, and Mounting Requirements
ISO 1182:2020, Reaction to Fire Tests for Products – Non-Combustibility Test
ISO 1182:2020, Reaction to Fire Tests for Products – Non-Combustibility Test
EN 13238-2010, Reaction-to-Fire Tests for Building Products – Conditioning Procedures and General Rules for Selection of Substrates
Equipment Specifications
- Heating voltage: 0-100 V
- Furnace power: 0-1500 W
- Heating temperature range: Ambient temperature to 1000 °C
- Thermocouple specification: Wire diameter 0.3 mm; outer diameter 1.5 mm; Type K; Class 1 accuracy

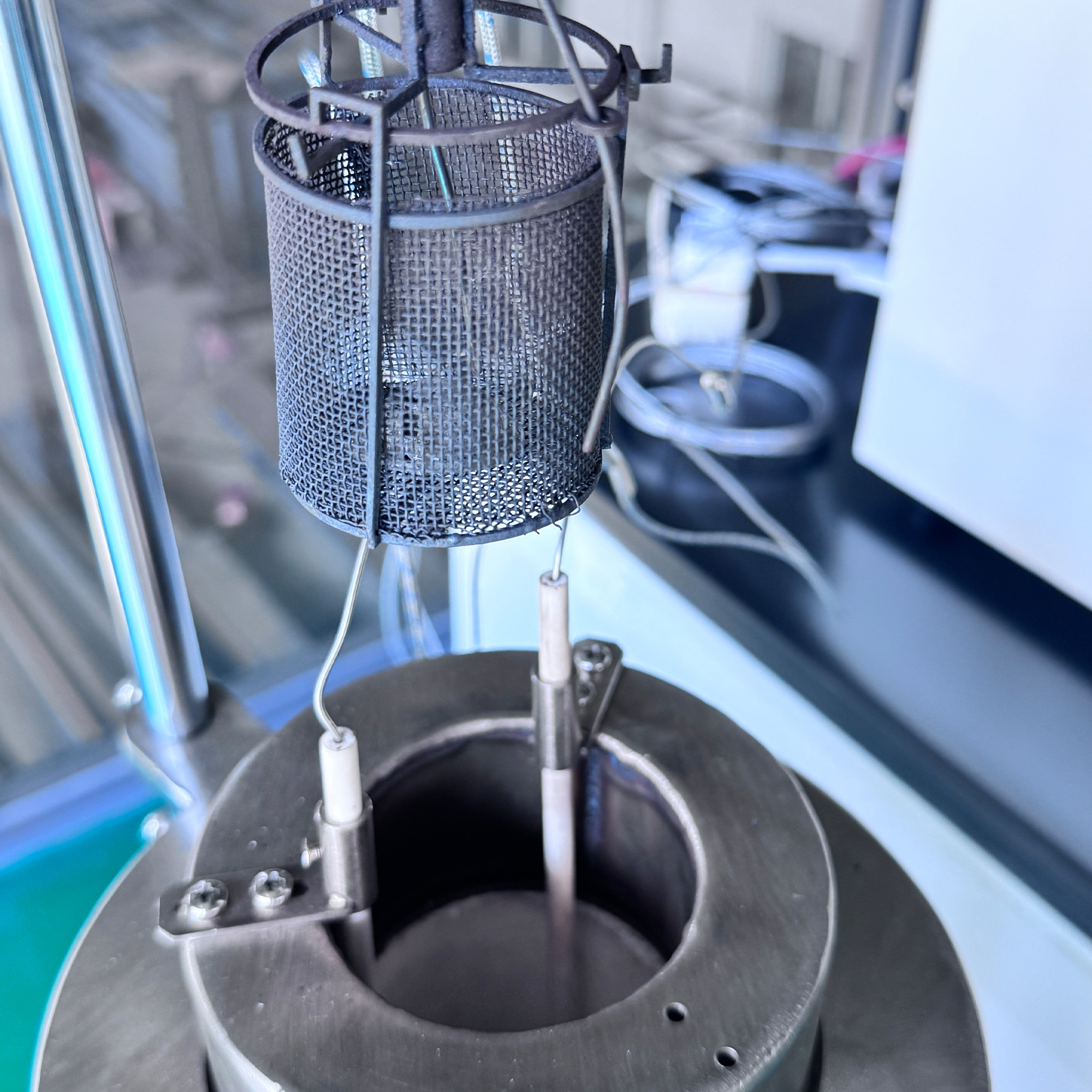

- Number of thermocouples: 4 (2 furnace-temperature thermocouples, 1 specimen-surface thermocouple, and 1 specimen-center thermocouple)
- Temperature measurement accuracy: Class 1; ±1.5 °C or 0.4% of the measured temperature, whichever is greater
- Specimen dimensions: Ø45 mm × 50 mm
- Furnace tube: Height 150 ± 1 mm; inner diameter 75 ± 1 mm; wall thickness 10 ± 1 mm
- Temperature stabilization time: 40-60 min (from ambient temperature to stable operation at 750 °C)
Operating Environment and Other Requirements
- Operating environment: Temperature 23 ± 5 °C; relative humidity 50 ± 20%. During testing, the room-temperature variation shall not exceed 5 °C. The apparatus shall not be installed near an air outlet or exposed to any form of intense solar or artificial radiation.
- Power supply: Single-phase AC 220 V ± 5%, 50 Hz
- Balance: Readability of 0.01 g or better (supplied by the user)
Product Features
- Complies with the latest ISO 1182:2020 standard and uses two furnace thermocouples.

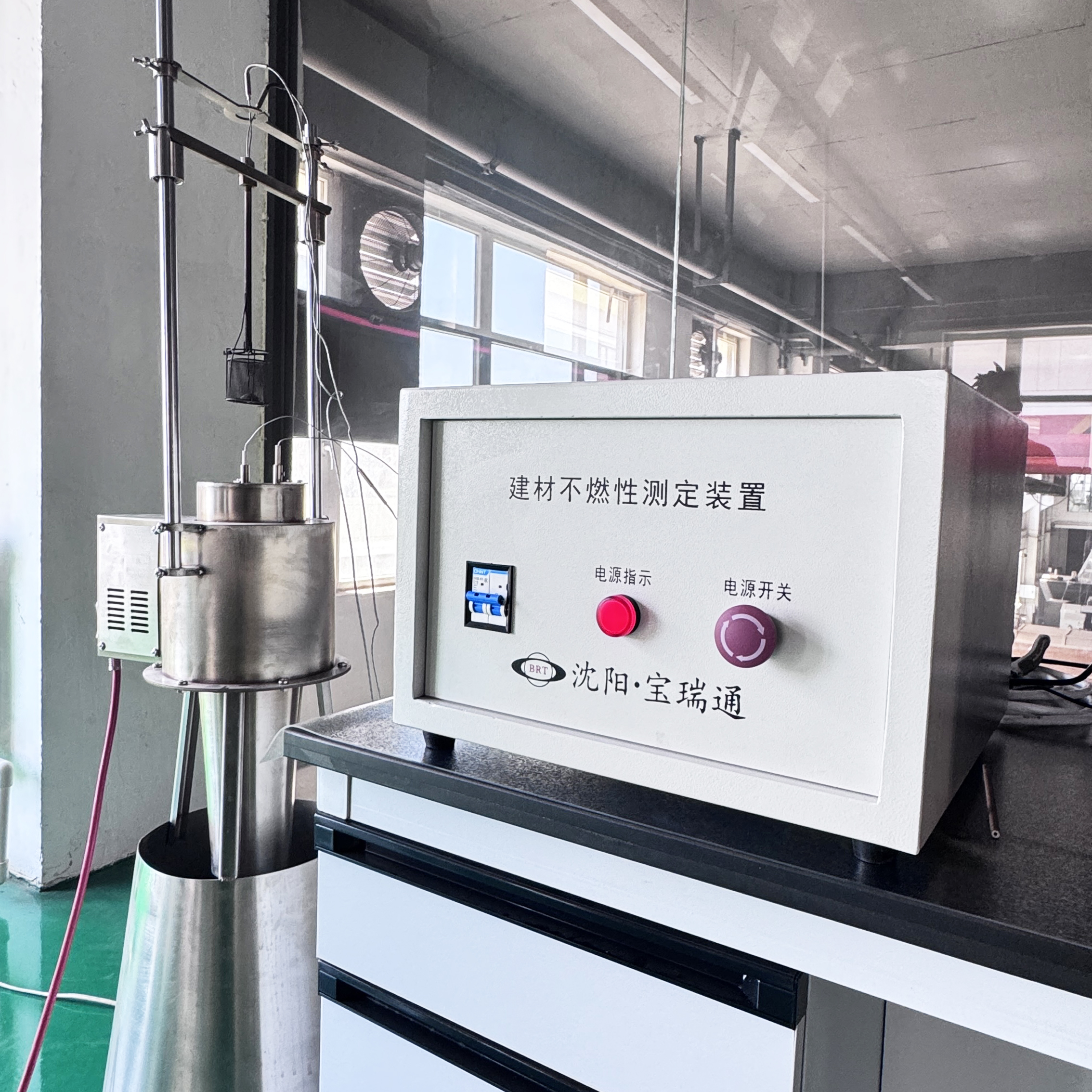

- Computer-controlled operation with a high sampling frequency, fast system response, and accurate data calculation.
- Uses a well-established brand controller with RS-485 communication and strong interference immunity.
- Uses a 100 V heating voltage in strict accordance with the standard requirements.
- The all-stainless-steel furnace body provides an attractive appearance and excellent resistance to rust, corrosion, and high temperatures.
- A height-positioning block is supplied as standard, enabling accurate and rapid positioning of the specimen holder’s lowering height.
- Optional auxiliary thermocouples are available for the test parameters (specimen center and specimen surface).
- Multiple sets of specimens can be tested continuously, significantly reducing the reheating wait time between tests.
- Rapid heating and precise temperature control. The apparatus typically reaches the constant-temperature condition within 40-50 min and is then ready for testing.
- The temperature-control algorithm has been optimized through multiple iterations and improved on the basis of a British non-combustibility test furnace. Switching from constant-temperature mode to constant-power mode requires no manual intervention, making operation quick and convenient.
- Dual-loop temperature and power control provides strong voltage adaptability. Power fluctuation during constant-power operation is less than 1%, and temperature deviation during empty-furnace operation is less than 2 °C.
- The power-compensation function uses advanced compensation technology to automatically adjust the heating power when the mains voltage deviates.
- The soft-start function allows the software to control the heating rate automatically and regulate the furnace temperature in stages, extending the service life of the furnace core.
- Flame duration is determined automatically, with no manual timing required, preventing missed events.
- Test results are recorded automatically and can be queried and exported.
