Description
Highlights at a glance
- Full Global Standard Compliance for Cable Fire Integrity Test Designed to meet GB/T 19216.21/23/25, IEC 60331 series and BS 6387:2013 standards, it performs 830℃+ flame integrity tests for power cables, data cables and optical fiber cables.
- 304 Stainless Steel Insulated Combustion Chamber with Customizable Structure 3m×3m×3m large test chamber with outer 304 stainless steel and high-temperature inner fire boards, 750℃ heat-resistant observation glass. Optional steel plate or brick wall structure to match different lab demands.
- High-Precision Intelligent Gas & Temperature Control System Equipped with imported mass flow controllers, dual pressure reducing valves and Venturi gas mixer to stabilize propane & air pressure at 0.1MPa. Two K-type thermocouples monitor flame temperature adjustable from 600℃ to 1000℃ for A/B/C/D grade testing.
- Automatic Full-Process Safety & Alarm Control High-voltage auto ignition with flame detection, customizable burning/spray timing (0–99h99m99s). Auto flameout & gas cut-off, automatic short-circuit alarm if cable fails during test; touch screen displays real-time temperature curves.
- 5-Channel Adjustable Electrical Load Test System Built-in 5KW three-phase transformer supporting 5 independent test loops, adjustable test voltage 0–1000V and load current 0.1–3A with overcurrent protection. Compatible with fire resistance, water spray and hammer impact combined tests.
- Complete Standard Test Fixtures for Various Cable Specimens Comes with two standard propane burners (500mm & 610mm nozzles), movable slide rail burner assembly, adjustable stainless steel cable ladder and 7 freely spaced 150mm metal support rings. 30kg load-bearing sample bracket fits all types of wire & cable samples.
Applicable International & National Standards
- IEC 60331-21:1999 / GB/T 19216.21-2003: Circuit integrity test for cables rated 0.6/1.0kV and below under fire conditions
- IEC 60331-23:1999 / GB/T 19216.23-2003: Fire integrity test for data cables
- IEC 60331-25:1999 / GB/T 19216.25-2003: Fire resistance test for optical fiber cables
BS 6387:2013: Standard for cable fire resistance, water spray and mechanical impact test
Combustion Chamber Parameters
- Outer material: 304 stainless steel; inner lining: 700℃ high-temperature fireproof board
- Internal dimension: 3.0±0.1m (L) × 3.0±0.1m (W) × 3.0±0.1m (H)
- Observation window: 750℃ heat-resistant fireproof glass
- Optional chamber structure: Integrated steel plate / customer self-built brick wall
- Chamber base frame: Steel plate with high-temperature sealant
2. Control & Temperature System
- Ignition mode: High-voltage automatic ignition + flame feedback detection
- Gas control: Imported mass flow controller, dual pressure reducing valves (0.1MPa stable pressure), Venturi mixer
- Temperature sensor: Two 1.5mm K-type thermocouples for flame temperature detection
- Flame temperature range: 600~1000℃ (650℃ Grade A,750℃ Grade B,950℃ Grade C/D)
- Timing range: 0 ~ 99 hours 99 minutes 99 seconds, customizable burning/spray duration
- Operation panel: Touch screen, real-time temperature curve display
- Safety alarm: Flameout alarm, test completion reminder, sample short-circuit auto flame & gas cut-off
- Control cabinet size: 650(D) × 400(W) × 1200(H)
3. Electrical Load System
- Transformer power: 5KW three-phase transformer
- Test channels: 5 independent test loops (3-phase 5-wire)
- Adjustable test voltage: 0 ~ 1000V
- Adjustable load current: 0.1 ~ 3A; overcurrent protection triggered over 3A
- Single loop configuration: 2A fuse, ammeter, indicator light, adjustable resistor
- Application: Compatible with fire resistance, water spray and hammer impact test loads
4. Burner & Specimen Fixture
- Burner 1: 500mm ×15mm nozzle with 3 staggered rows of holes (radius 1.32mm, pitch 3.2mm)
- Burner 2: 610mm strip propane burner for BS 6387 Grade C test
- Burner mounting: Movable slide rail structure
- Cable test ladder: 1200mm(L) ×60mm(H), adjustable vertical supports, total weight 18±1kg
- Fixing accessories: 7 pcs 150mm inner diameter metal rings with freely adjustable spacing
- Auxiliary thermocouple: <2mm K-type thermocouple, 75mm away from burner nozzle
- Installation standard: Burner front ≥200mm from chamber bottom, ≥500mm from chamber wall
- Bracket load capacity: Max 30kg, all fixture material: 304 stainless steel
- Chamber base: Equipped with moving casters for easy displacement
5. Installation Position Standard
- Horizontal distance between burner axis and cable center: 40–60mm
- Vertical distance between burner axis and cable axis: 100–120mm
Working Principle
Install the tested cable sample on the stainless steel ladder and fix it with adjustable metal rings. Set target flame temperature, burning duration and test voltage/current on the touch screen. The system completes automatic ignition, precise gas mixing and constant temperature flame output.The 5-channel load system continuously supplies rated voltage and current to the cable during combustion. K-type thermocouples track real-time flame temperature; the system automatically alarms and cuts off gas & flame once cable short-circuit occurs. After preset burning time, the machine stops heating automatically. Operators judge whether the cable maintains circuit integrity to confirm its fire resistance grade.Application Scenarios
- Wire & cable manufacturing factories (raw material inspection, finished product fire resistance quality control)
- Third-party fire safety testing laboratories & certification organizations
- Fire protection research institutes and university material laboratories
- Construction engineering supervision & fire product inspection departments
- Cable R&D labs for new flame-retardant cable development
Standard Equipment Configuration List

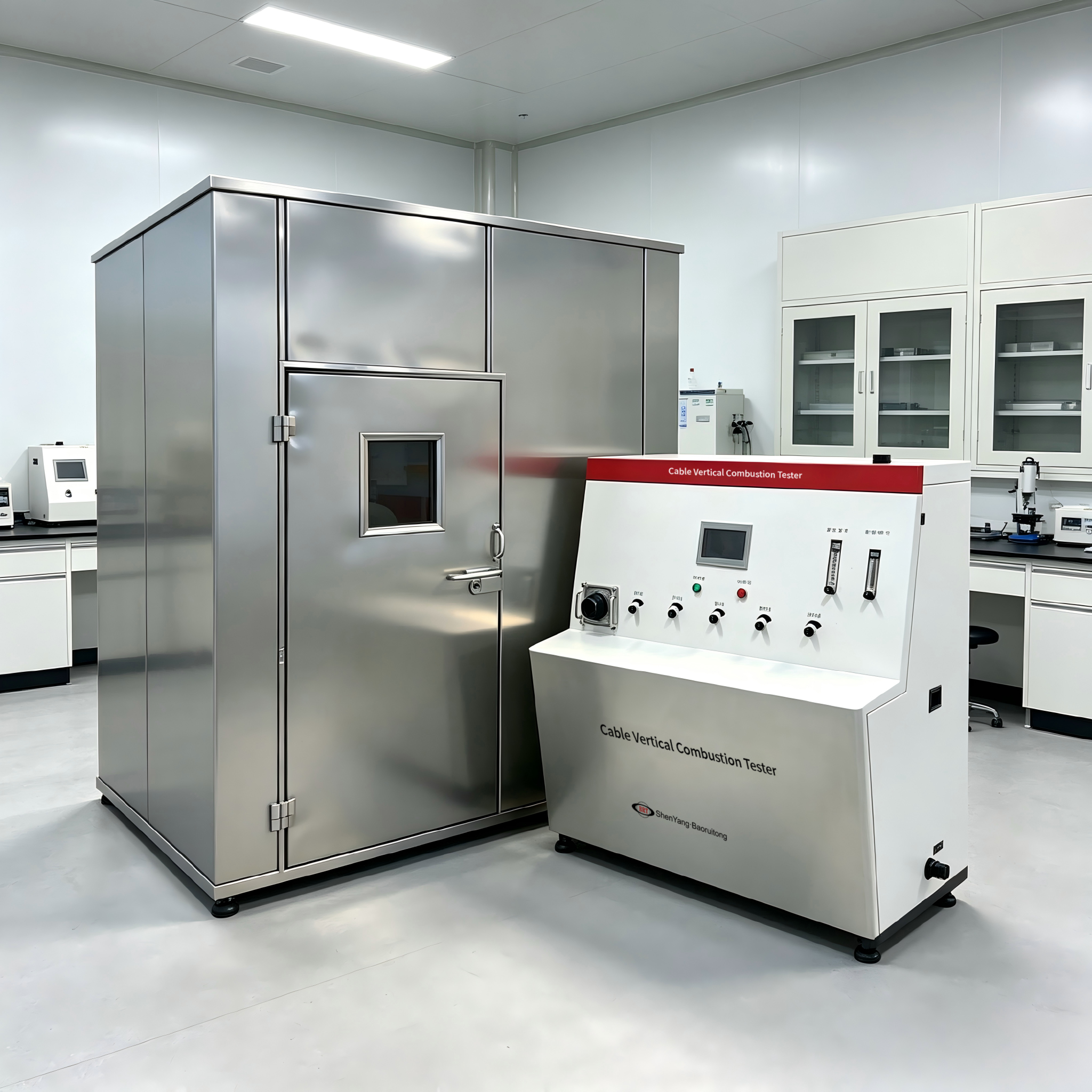

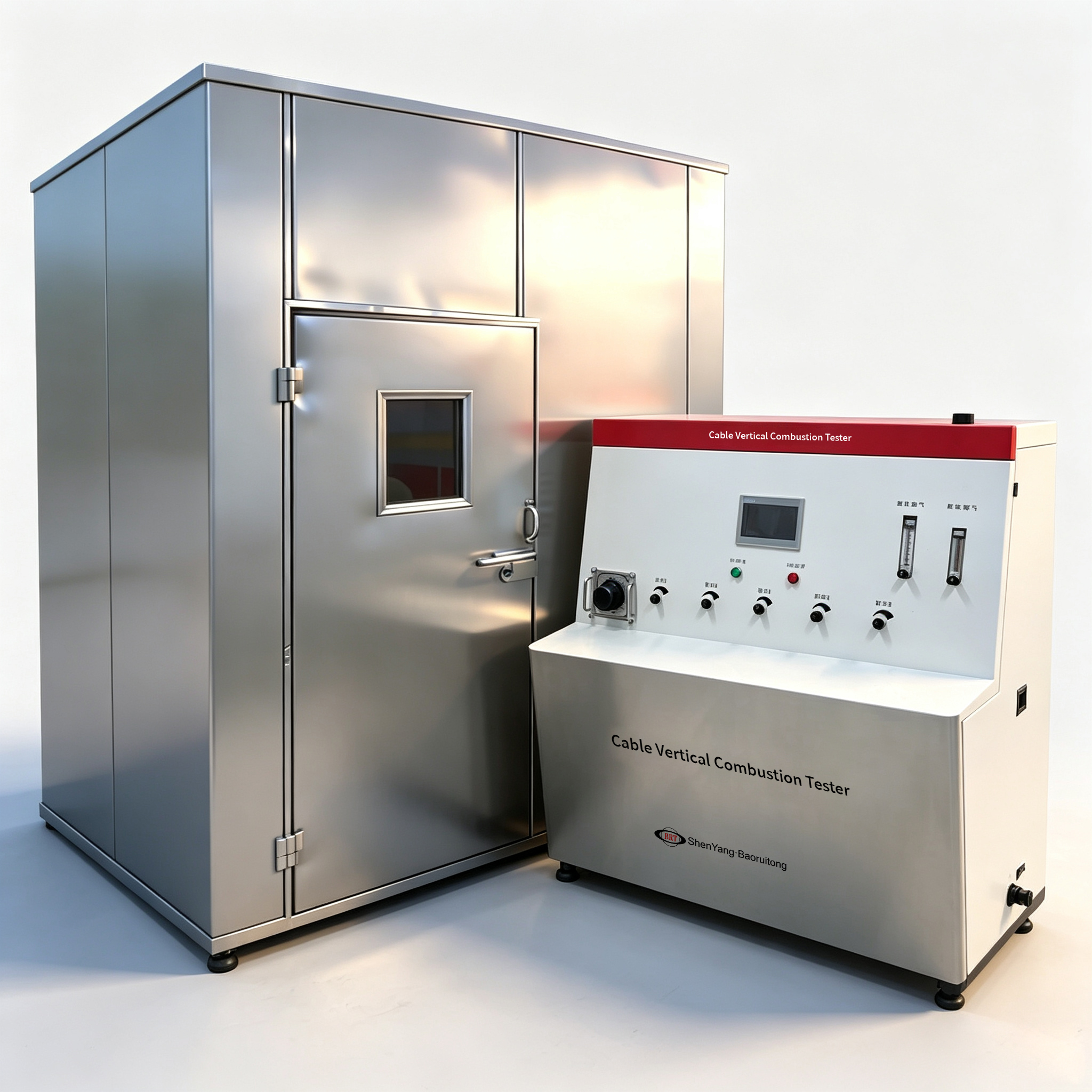

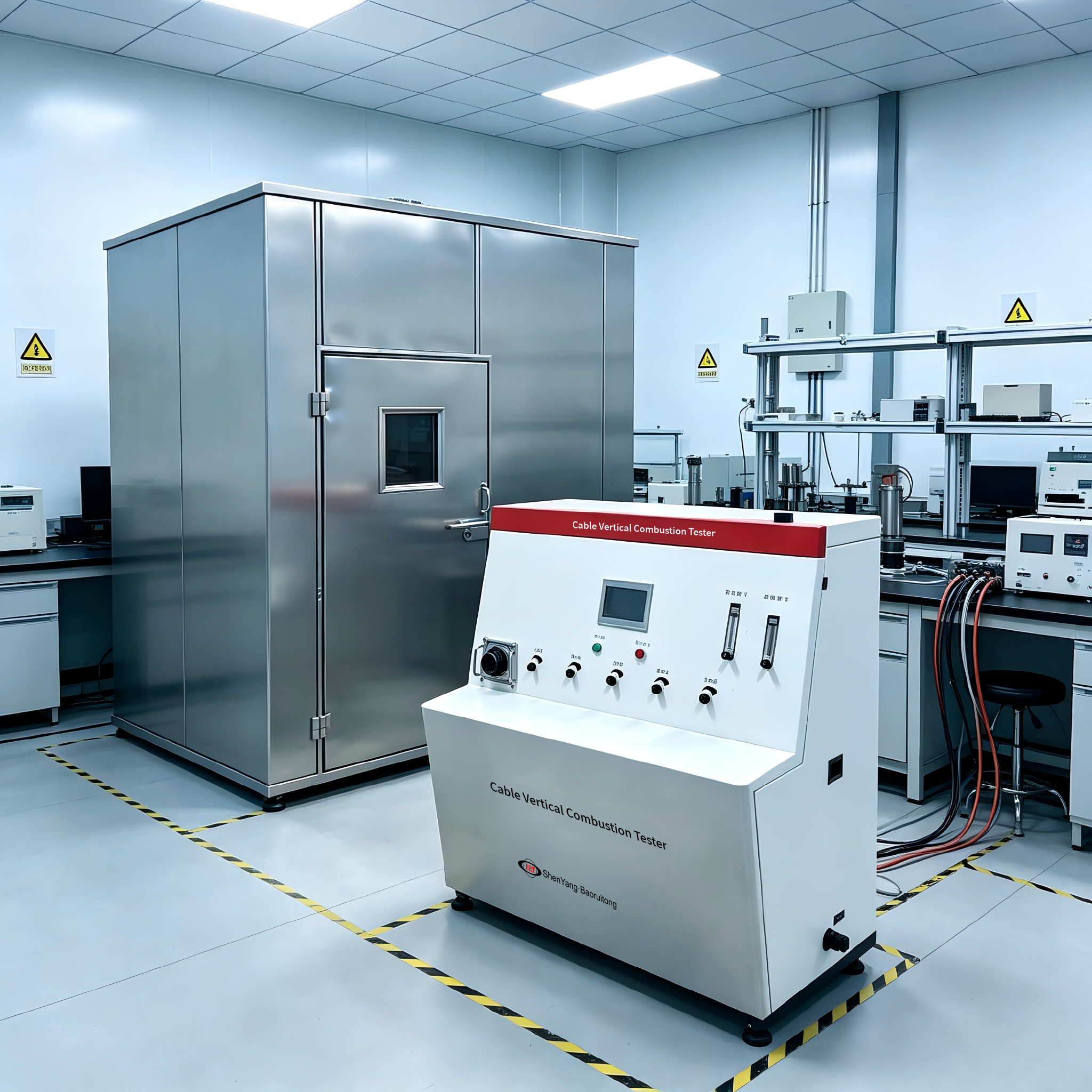

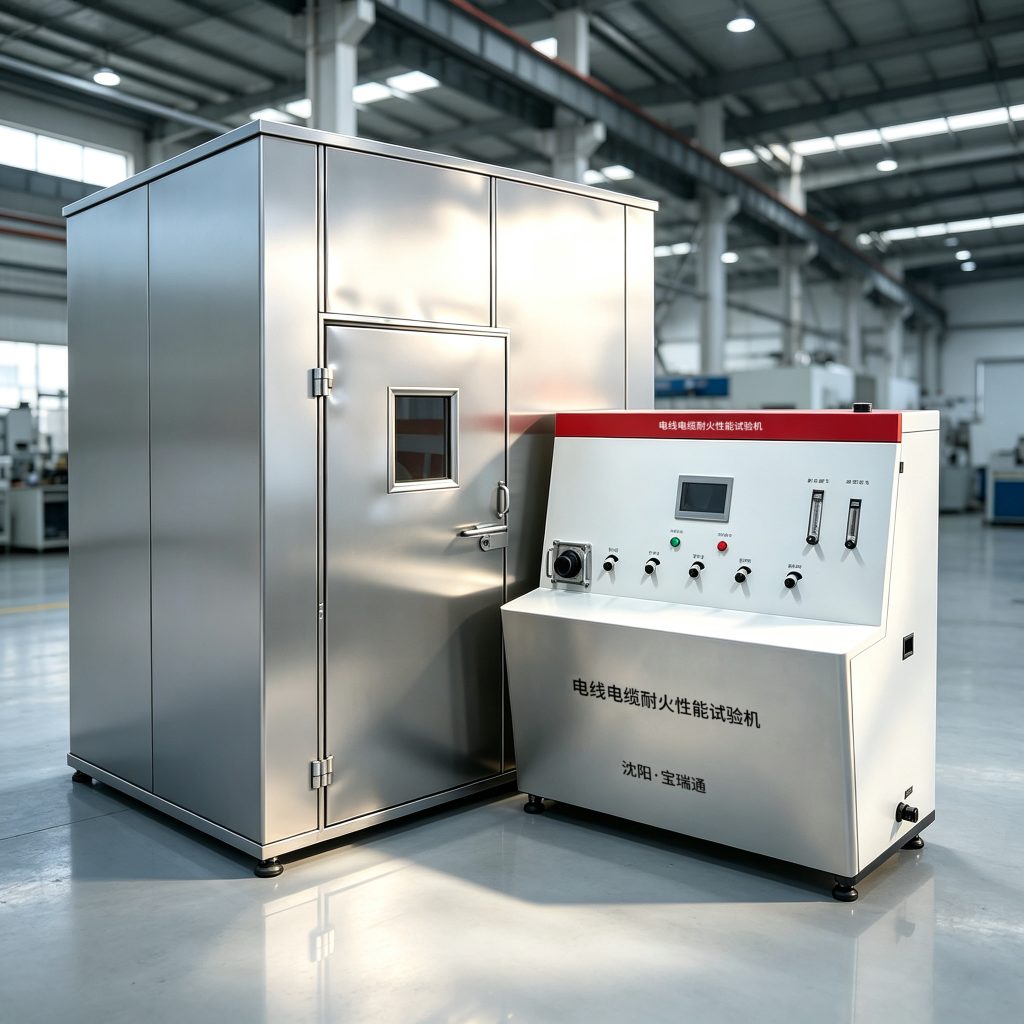

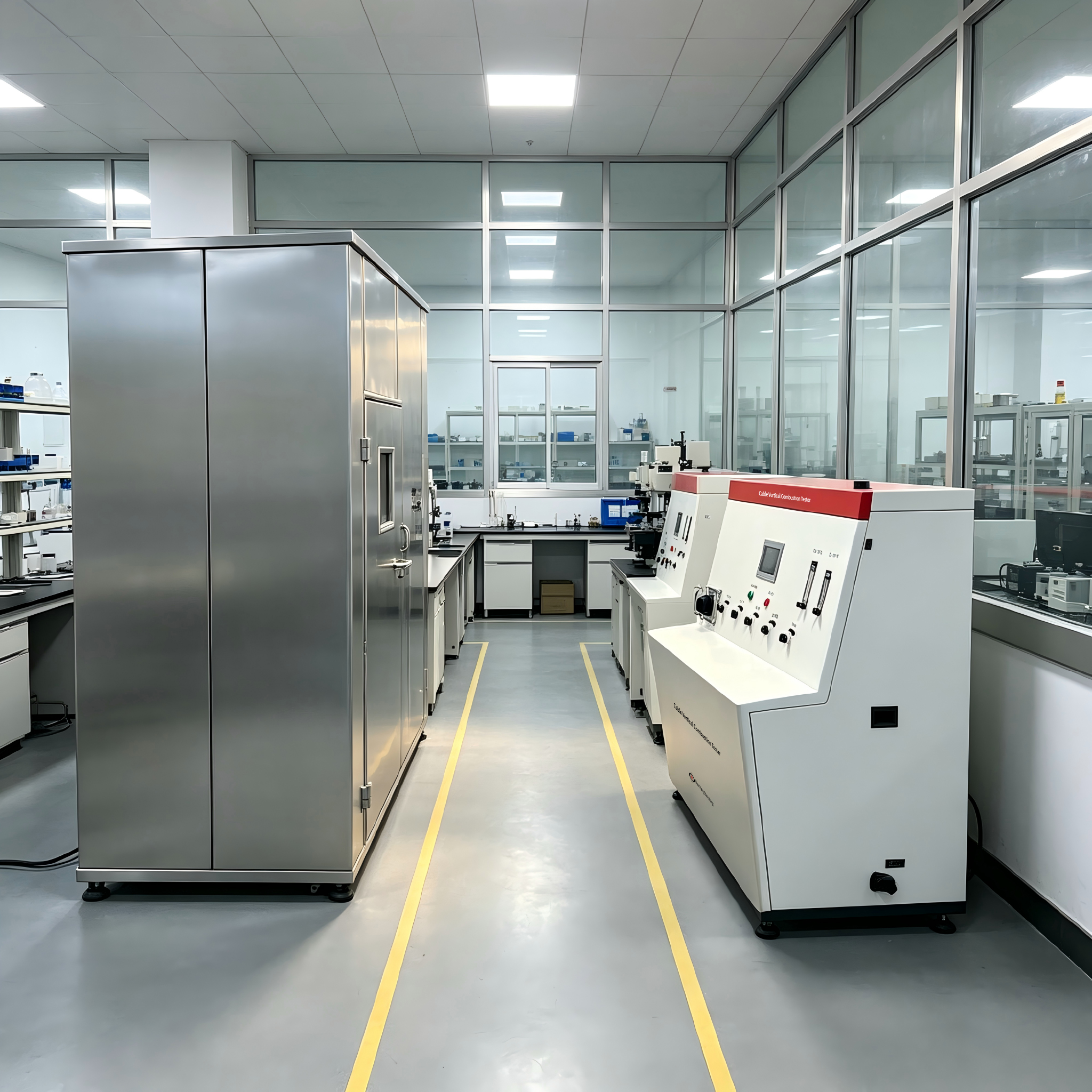

- 3m cubic stainless steel combustion chamber with observation window and moving casters

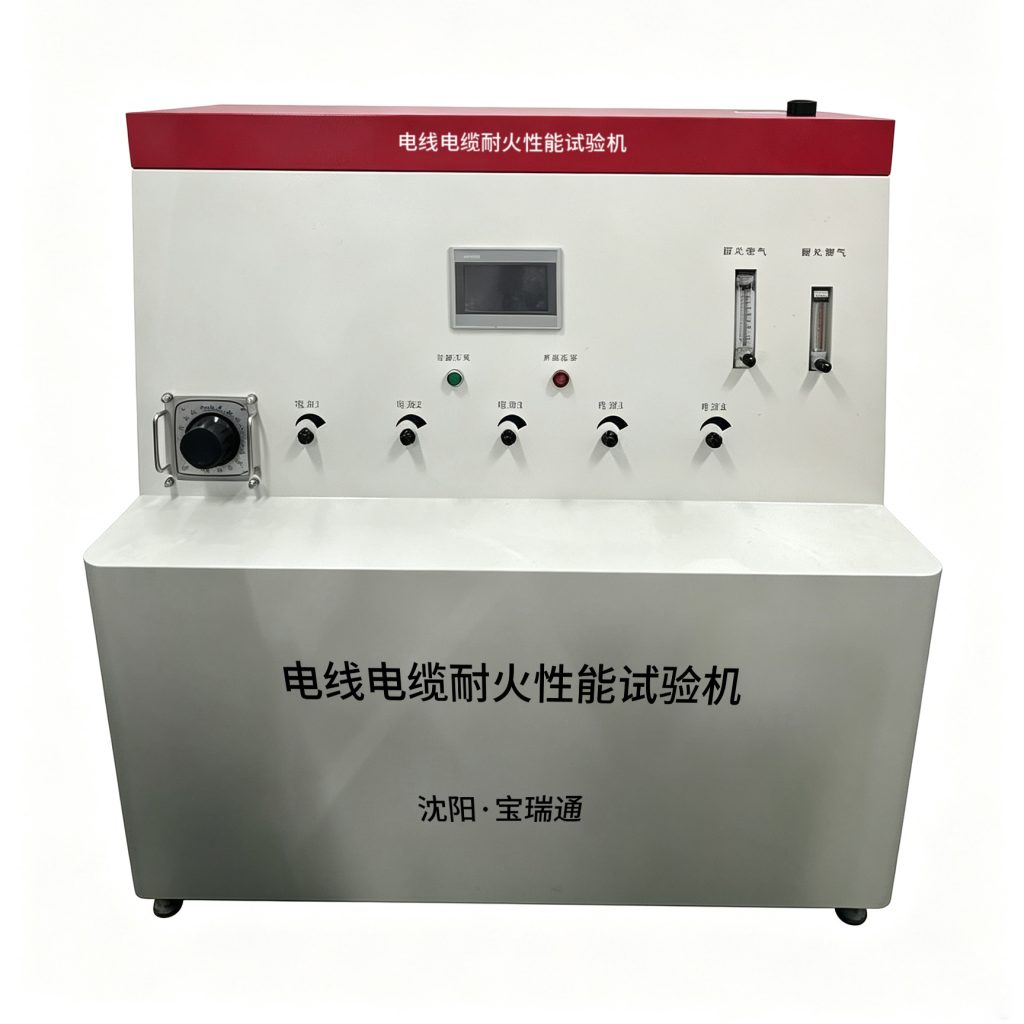

- Independent touch screen electrical control cabinet (650×400×1200mm)
- 5KW three-phase transformer & 5-channel independent load control unit
- Two sets of standard propane burners with slide rail assembly
- Imported mass flow controller, dual pressure reducing valves and Venturi gas mixer
- Complete K-type thermocouple temperature measuring assembly
- Adjustable stainless steel cable test ladder
- 7 pcs 150mm metal fixing rings + 30kg load-bearing sample bracket
- Complete gas pipeline, power cable and installation accessories
- English operation manual and standard calibration guide
