Description

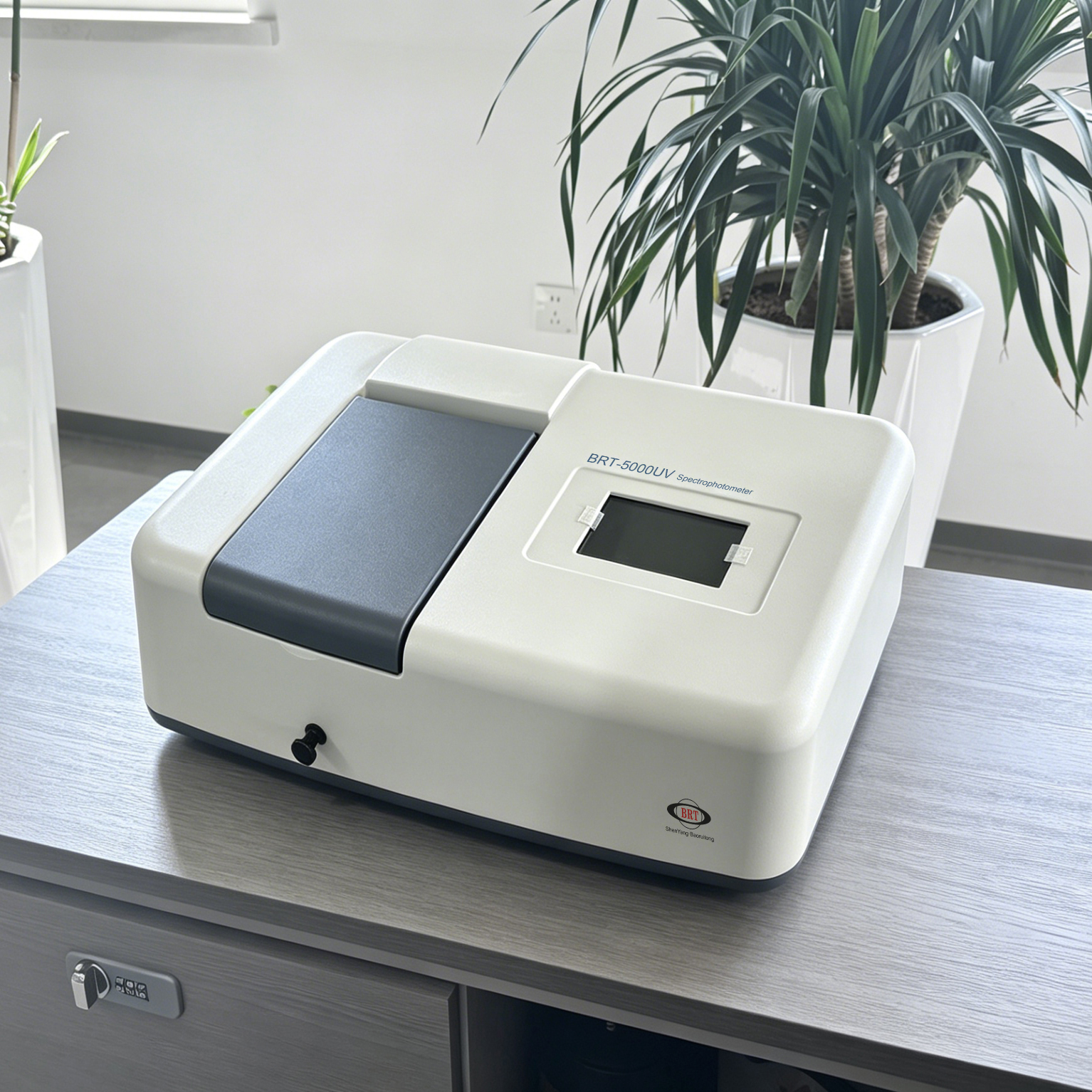

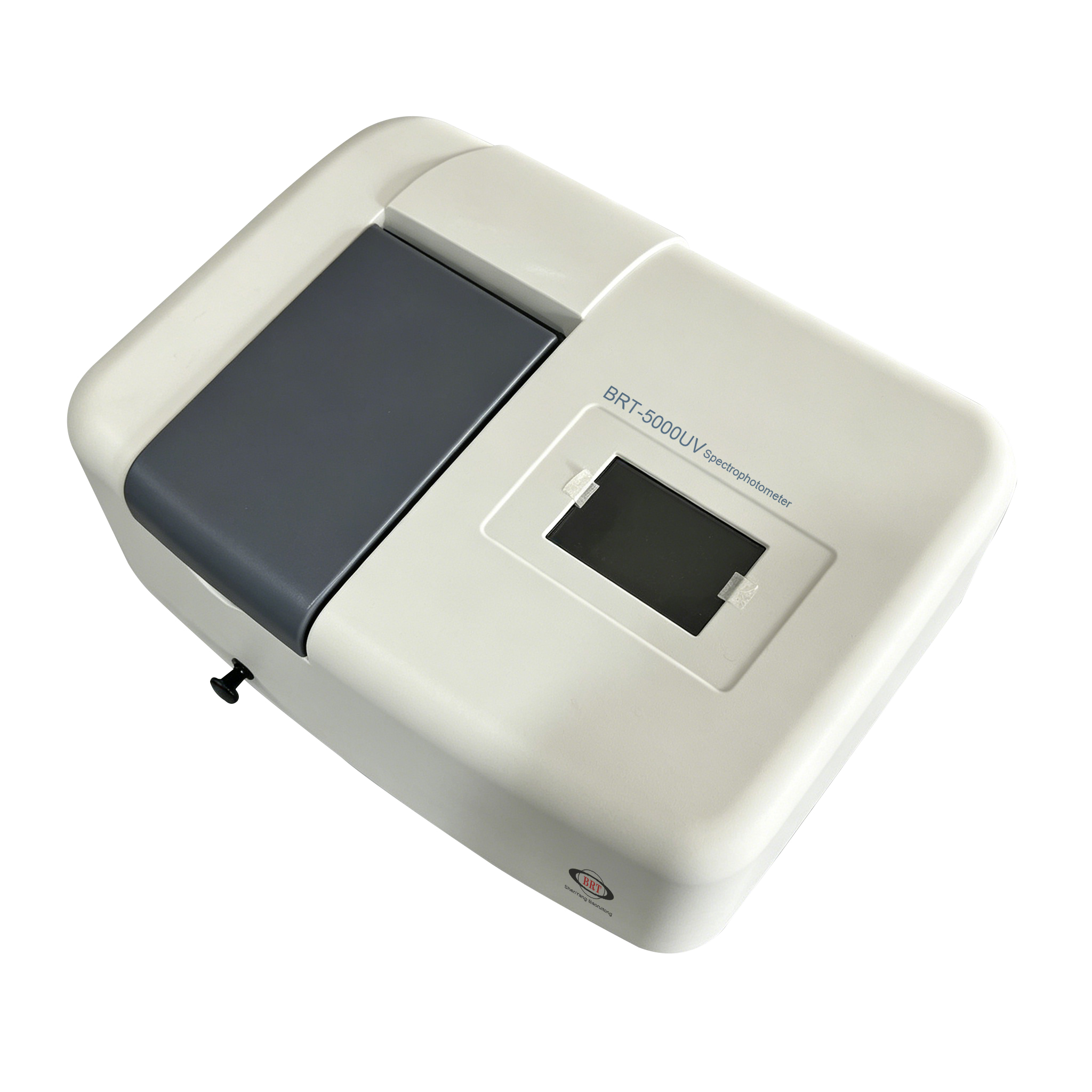

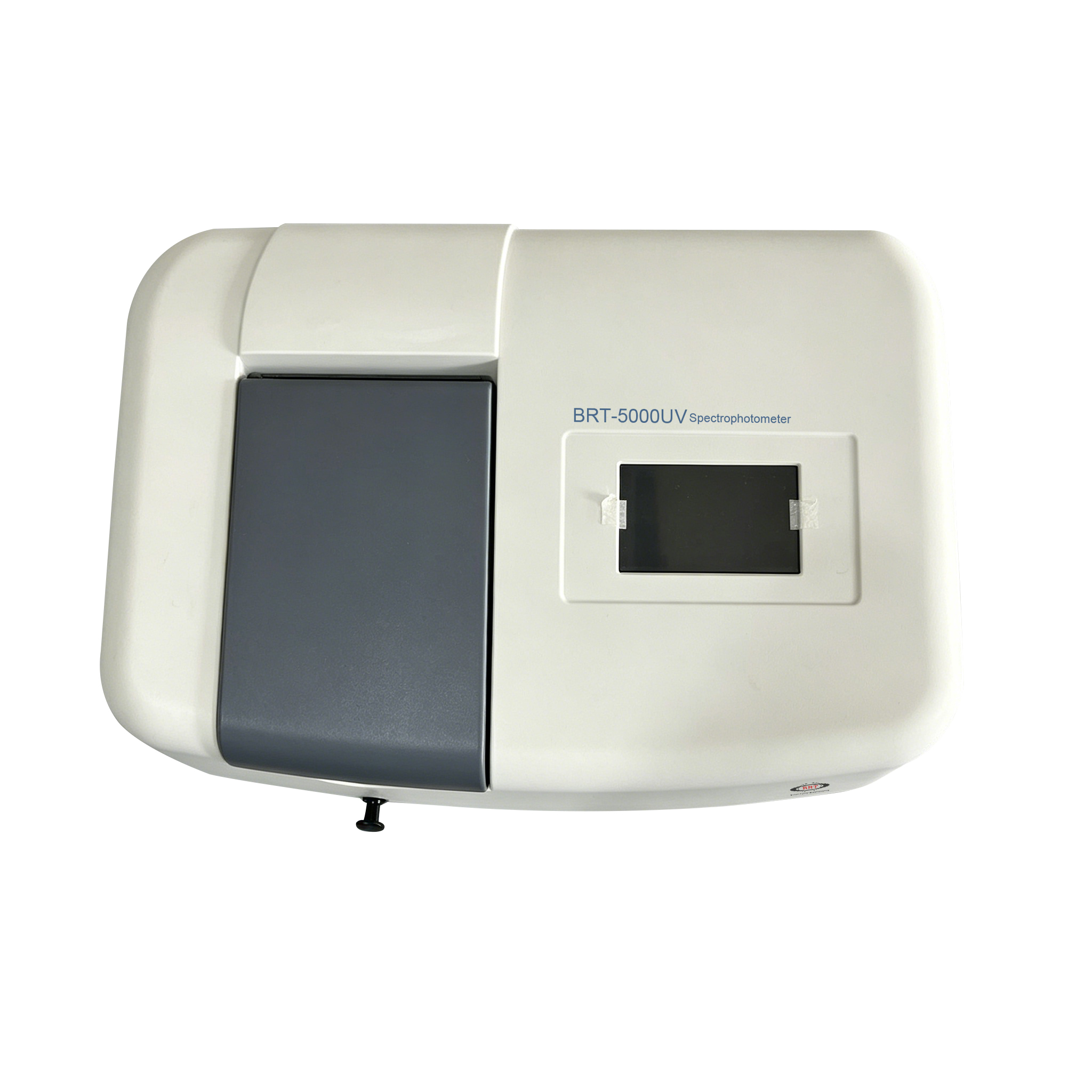

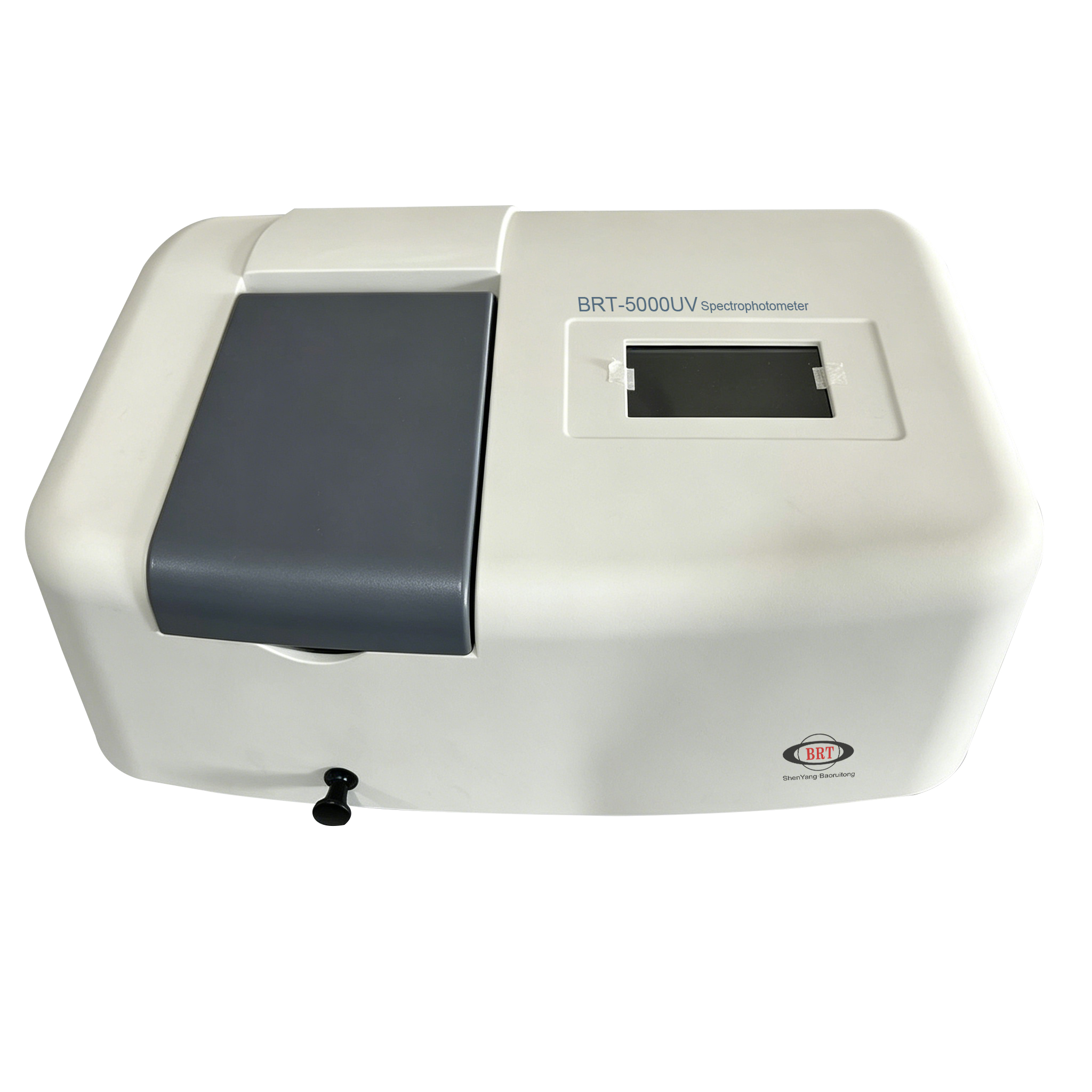

| Product Name | BRT-5000UV UV/Vis Spectrophotometer | Type | Ultraviolet-Visible Spectrometer |
| Wavelength Range | 200 ~ 1000 nm | Wavelength Accuracy | ±2 nm |
| Wavelength Repeatability | ≤1 nm | Spectral Bandwidth | 4 nm |
| Wavelength Resolution | 0.1 nm | Transmittance Accuracy | ±0.3 %T |
| Measuring Range | 0 ~ 200%T, -0.301 ~ 3.000Abs, -9999 ~ 9999C, -9999 ~ 9999F | Optical System | Single Beam, 1200 Gratings |
| Light Source | Tungsten Lamp, Deuterium Lamp | Warranty | 1 Year |
| Customized Support | OEM | Brand Name | BRT |
| Weight | 10.5 kg | Place of Origin | Liaoning, China |
| Quartz Cuvette (10 mm) | 2 pcs | Glass Cuvette (10 mm) | 4 pcs |
| Dimensions | 470(W) × 380(D) × 225(H) mm | - | - |
Highlights at a glance
- LCD large-screen dot-matrix display with full Chinese menu interface, simultaneously showing T (Transmittance) and A (Absorbance).
- Wavelength display with 0.1 nm resolution ensures stable and accurate readings.
- Spacious sample chamber accommodates cuvettes ranging from 5 mm to 100 mm, supporting flexible testing requirements.
- Advanced microcomputer processing technology improves operation convenience and system efficiency.
- High-performance optical system with 1200 lines/mm grating, imported deuterium lamp, tungsten lamp, and detector ensures excellent instrument performance.
- Automatic wavelength adjustment with automatic 0A and 100% T calibration for improved accuracy and stability.
- Built-in quantitative measurement function displays spectrum and regression equation, with automatic curve saving and storage for up to 200 sets of data and standard curves.
- Photometric measurement function with direct data saving, supporting storage of up to 200 data sets.
- USB interface compatible with optional professional analysis software, enabling photometric, quantitative, and kinetic measurement functions.
- Parallel port printing supported with optional dedicated printer for measurement result output.
- Automatic wavelength calibration, lamp switching, and independent control of deuterium and tungsten lamps.
- Light-touch button interface for simple, convenient, and user-friendly operation.
Instrument Functions
- Photometric measurement: Detect key indicators of samples within the applicable wavelength range to meet basic testing requirements.
- Quantitative measurement: Support coefficient method and standard sample method, ensuring accurate and reliable concentration measurement results.
- System applications: Support dual light source control, automatic wavelength calibration and other basic system operations for convenient use.
- Data output: Equipped with USB interface, enabling convenient data transmission and connection with professional software.
- Baseline monitoring: Real-time monitor baseline drift to ensure stable and consistent measurement performance.
Instrument Features
- Display Screen: 4.3 inch color touch-screen LCD with user-friendly operation interface, simple and easy to operate.
- Monochromator: High-performance C-T type with holographic grating, ensuring high-precision wavelength selection.
- Sensor: High-sensitivity silicon photocell, effectively ensuring the accuracy of sample detection.
- Light Source: Equipped with dual light sources (deuterium lamp and tungsten lamp) with long service life, meeting multi-wavelength measurement needs.
- Wavelength Calibration: Automatic calibration after startup, saving operation time and ensuring measurement accuracy.
- Sample Holder: Adjustable design, compatible with multiple cuvette specifications, with matching quartz and glass cuvettes included.
- Power Supply: Dual voltage design, suitable for use in different regional power supply environments.
- Overall Design: Compact structure and moderate weight, easy to transport, place and maintain.
