Description

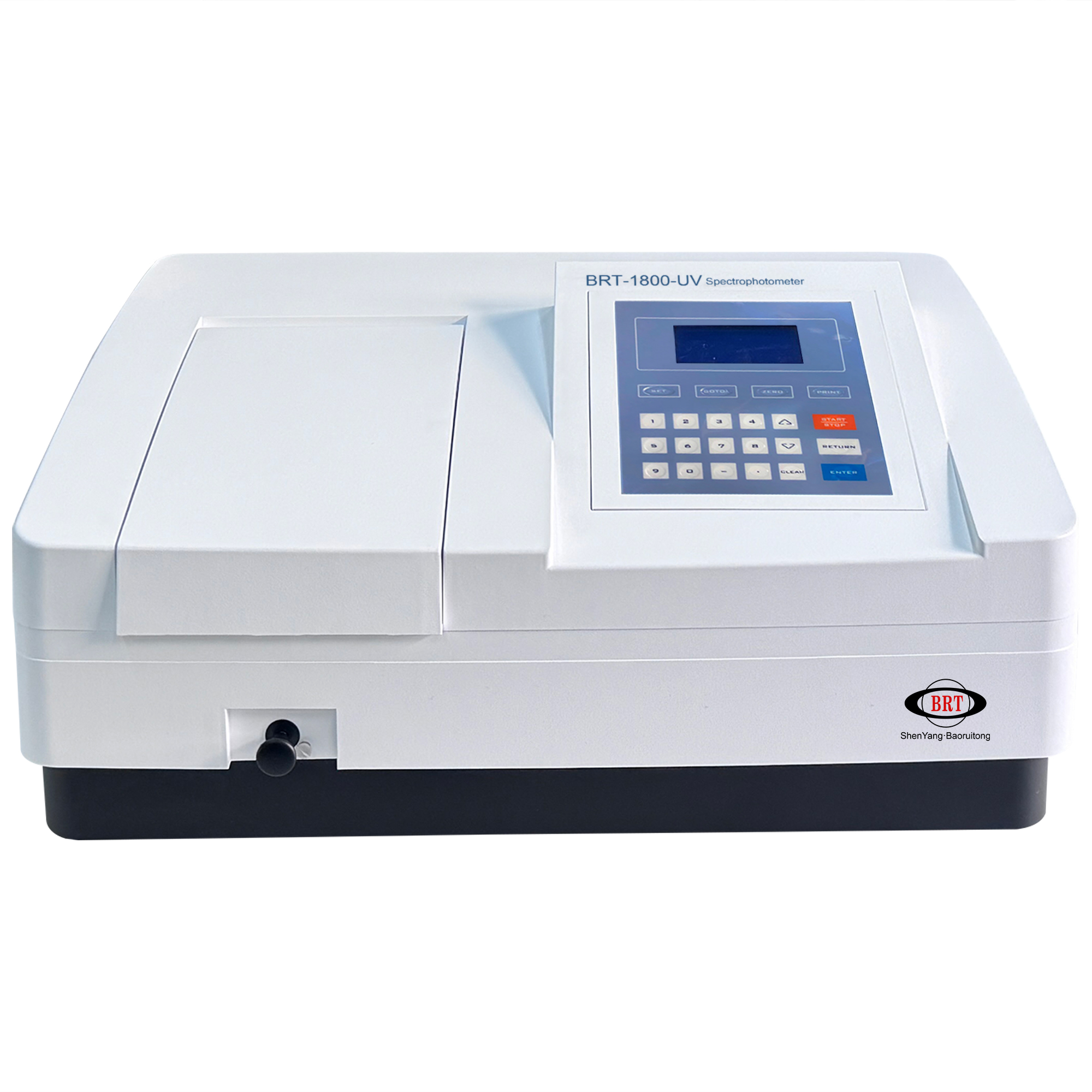

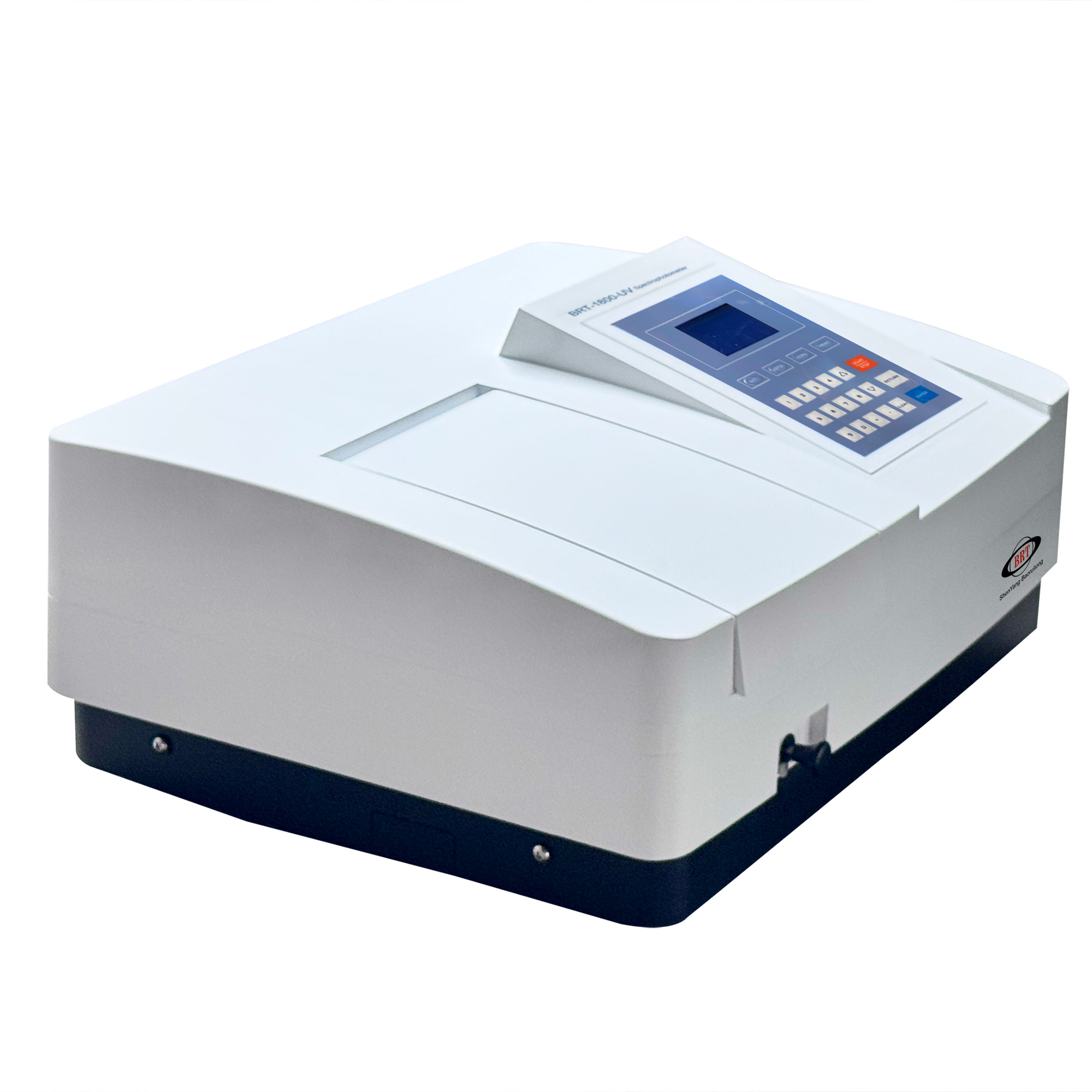

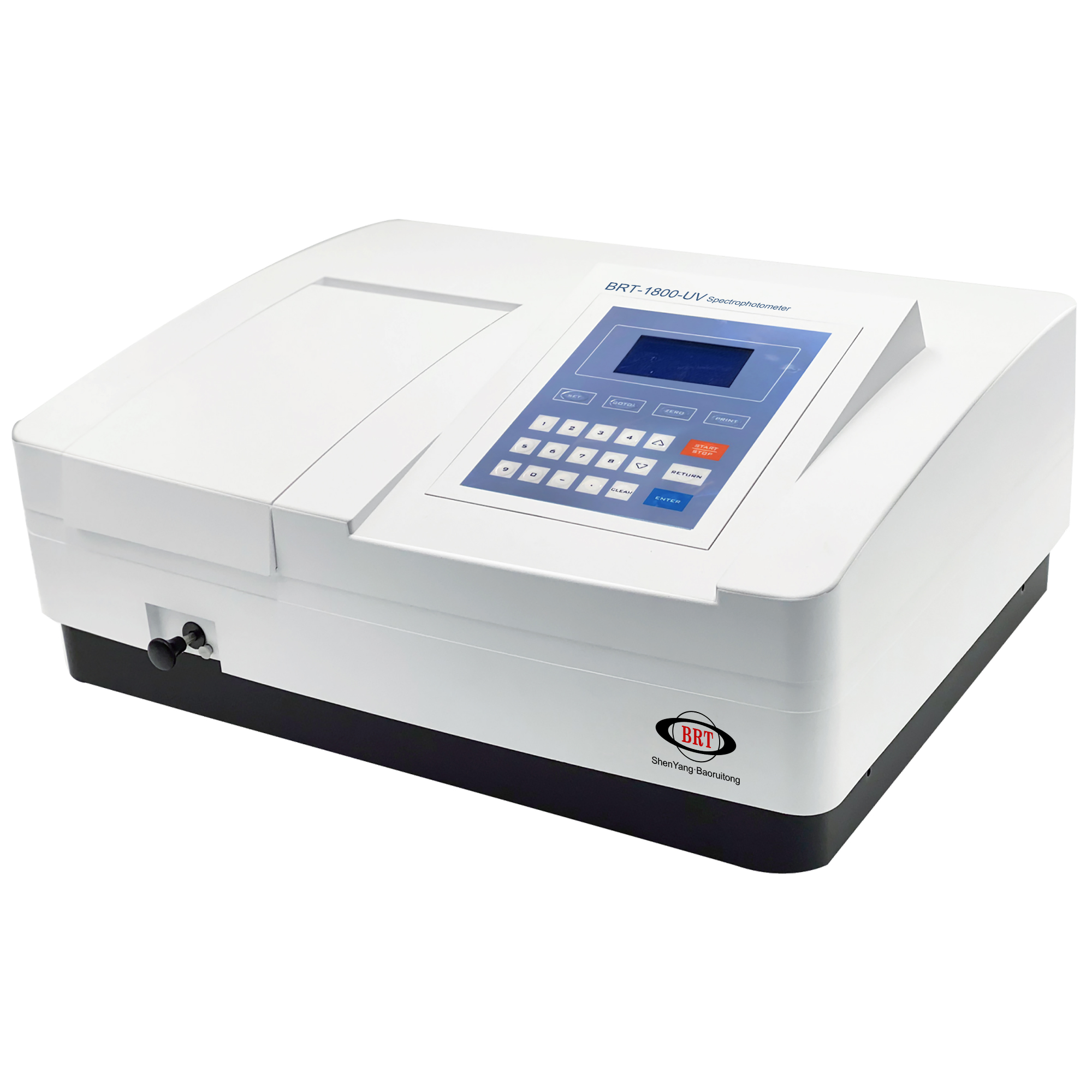

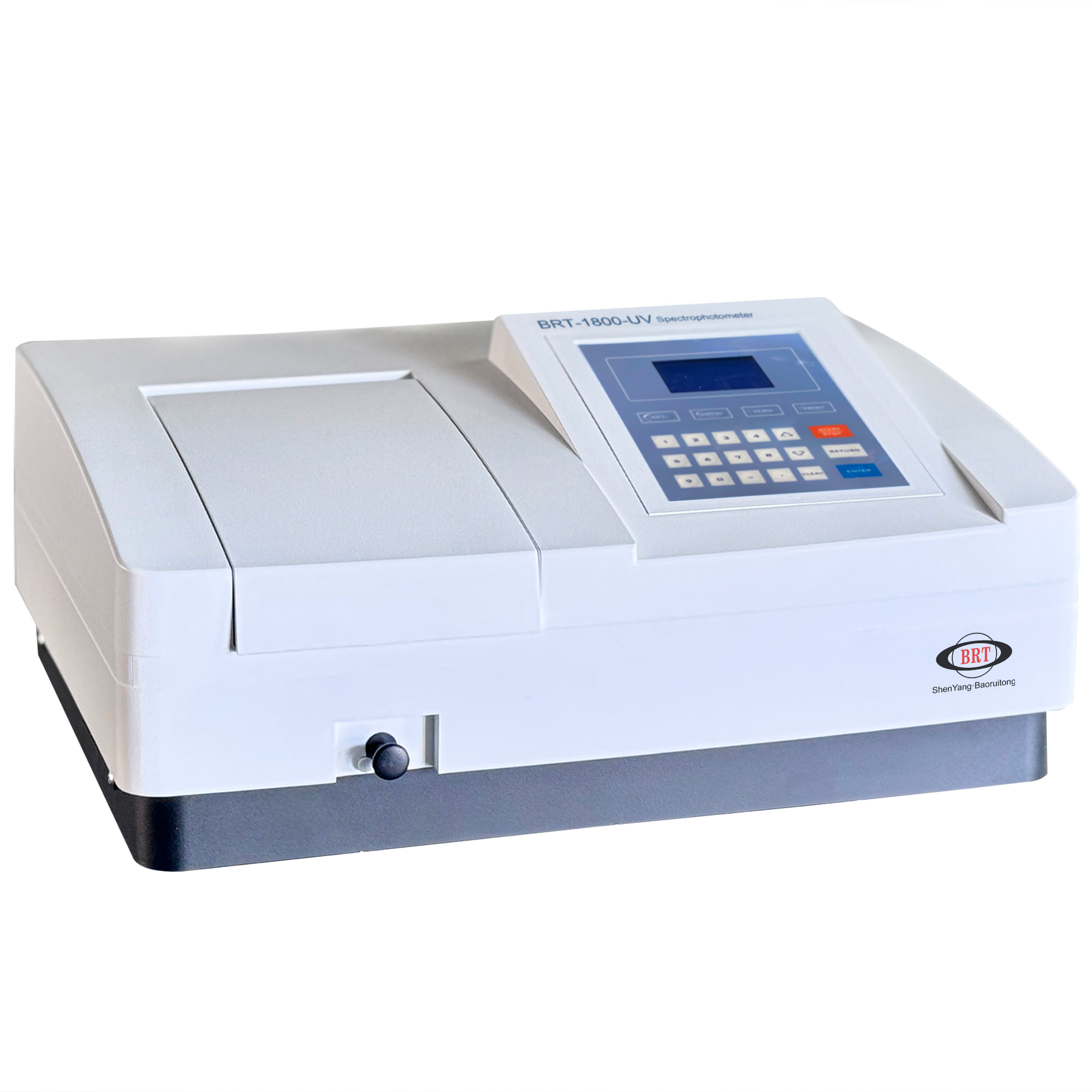

| Product Name | BRT-1800UV UV/Vis Spectrophotometer | Type | Ultraviolet-Visible Spectrometer |
| Wavelength Range | 190 ~ 1100 nm | Wavelength Accuracy | ±0.5 nm |
| Wavelength Repeatability | ≤0.2 nm | Spectral Bandwidth | 2 nm |
| Wavelength Resolution | 0.1 nm | Transmittance Accuracy | ±0.3 %T |
| Measuring Range | 0 ~ 200%T, -0.301 ~ 3.000Abs, -9999 ~ 9999C, -9999 ~ 9999F | Optical System | Single Beam, 1200 Gratings |
| Light Source | Tungsten Lamp, Deuterium Lamp | Warranty | 1 Year |
| Customized Support | OEM | Brand Name | BRT |
| Weight | 14 kg (33.07 lb) | Place of Origin | Liaoning, China |
| Quartz Cuvette (10 mm) | 2 pcs | Glass Cuvette (10 mm) | 4 pcs |
| Dimensions | 490(W) × 370(D) × 180(H) mm | - | - |
Highlights at a glance
- LCD large-screen dot-matrix display with full Chinese menu interface, simultaneously showing T (Transmittance) and A (Absorbance).
- Wavelength display with 0.1 nm resolution ensures stable and accurate readings.
- Spacious sample chamber accommodates cuvettes ranging from 5 mm to 100 mm, supporting flexible testing requirements.
- Advanced microcomputer processing technology improves operation convenience and system efficiency.
- High-performance optical system with 1200 lines/mm grating, imported deuterium lamp, tungsten lamp, and detector ensures excellent instrument performance.
- Automatic wavelength adjustment with automatic 0A and 100% T calibration for improved accuracy and stability.
- Built-in quantitative measurement function displays spectrum and regression equation, with automatic curve saving and storage for up to 200 sets of data and standard curves.
- Photometric measurement function with direct data saving, supporting storage of up to 200 data sets.
- USB interface compatible with optional professional analysis software, enabling photometric, quantitative, and kinetic measurement functions.
- Parallel port printing supported with optional dedicated printer for measurement result output.
- Automatic wavelength calibration, lamp switching, and independent control of deuterium and tungsten lamps.
- Light-touch button interface for simple, convenient, and user-friendly operation.
Instrument Functions
- Photometric measurement: Detect the absorbance and energy of the sample at a fixed wavelength.
- Quantitative measurement: a. Coefficient method: Input C=KA+B or A=KC+B;
- Standard sample method: Establish a standard curve with up to 9 standard samples.
- Kinetic measurement: Measure the change of the sample within a set time at a fixed wavelength, automatically draw the graph, and the coordinates can be customized.
- System applications: Deuterium lamp and tungsten lamp switching, wavelength calibration, dark current calibration, light source life recording, and restoring factory settings.
- USB interface, optional Mapada professional analysis software for online operation (standard configuration for PC type).
- The software can perform various measurements such as photometric measurement, spectrum scanning, quantitative measurement, time scanning (kinetic) measurement, multi-wavelength measurement, and DNA/protein measurement.
Instrument Features
- The instrument adopts a 128*64 dot matrix liquid crystal display with a full Chinese menu, displaying standard curves and kinetic measurement curves.
- It can store up to 100 standard curves, call standard curves to measure sample concentrations, and store up to 200 sets of test data.
- The spacious sample chamber can accommodate cuvettes of various specifications ranging from 5 to 100mm, and a variety of accessories meet various testing needs.
- The unique optical system, high-performance 1200 lines/mm grating, imported deuterium lamp, tungsten lamp and detector ensure excellent performance indicators of the instrument, with a wavelength resolution of 0.1nm.
- Self-calibration function: wavelength calibration, saving calibration data, avoiding repeated calibration when starting up, and directly entering measurement data.
- High precision, wide wavelength range, and low stray light meet the testing needs of different industries.
- Membrane buttons with sensitive operation, and a numeric keyboard for simple and quick input.
- Parallel port printing, optional dedicated printer to print measurement results.
